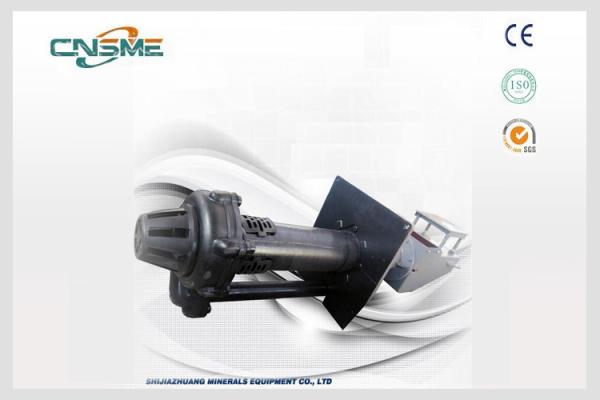

Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
Specifications
Brand Name :
CNSME
Model Number :
SVR/100R
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Application :
for Corrosive Slurry
Type :
Vertical Cantilever
Theory :
Centrifugal Heavy Duty
Model :
SVR/100R
Extended Shaft :
1800mm
Description

Floor Sump Used Vertical Pumps with 1800mm Extended Shaft​

Introduction:

SPR sump pumps are highly configurable and designed to reduce maintenance and operating costs.

Vertical pumps from SME not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs. These vertical slurry pumps can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available. The innovative product design and widely configurable range help our customers reduce costs. At SME, SV are metal lined sump pumps, whereas SVR are rubber lined instead.

Features and advantages of SME SVR rubber lined vertical slurry pumps:

Low maintenance and long life, Low on power consumption, Less wear and tear of parts, thus economical. Looking for rubber lined horizontal/vertical slurry pumps? Call us at +86 311 66692398.

Specifications:

Model SVR-100R
Capacity 64.8-285m3/h
TDH 7.5-36m
Rated Motor Power 75Kw
Speed 600-1200r/min
Max. Efficiency 62%
Standard Shaft Length 1500mm

Construction of Vertical Slurry Pump:

Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft

Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft

Materials of Construction:

Part Description Material
Casing - Black Natural Rubber
Impeller - Black Natural Rubber
Back Liner - Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃

Performance Curve:

Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft

Projects with Vertical Slurry Pumps:

Floor Vertical Heavy Duty Sump Pump With 1800mm Extended Shaft
