SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
Specifications
Brand Name :
CNSME
Model Number :
SVR/150S
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
Natural Rubber
Application :
for Corrosive Slurry
Type :
Vertical Cantilever
Theory :
Centrifugal Heavy Duty
Color :
Bule
Brand :
1800mm
Description

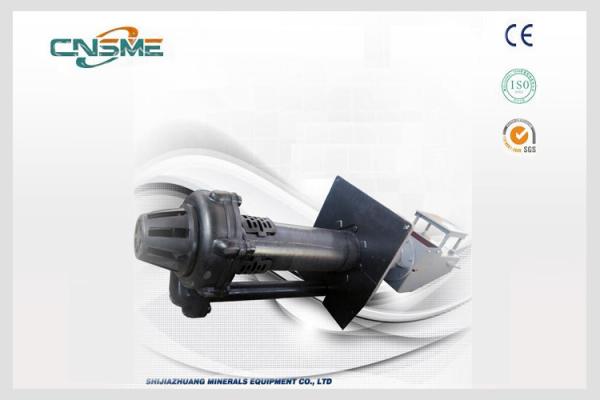

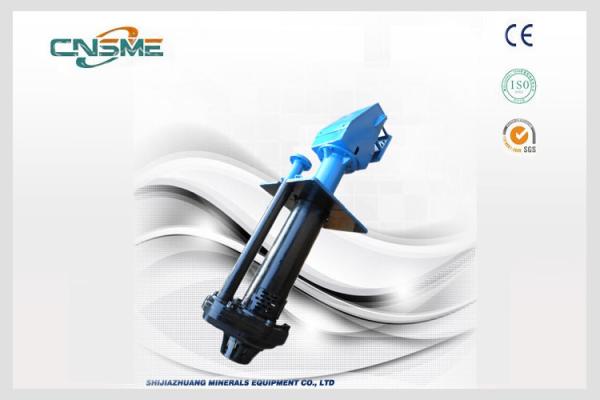

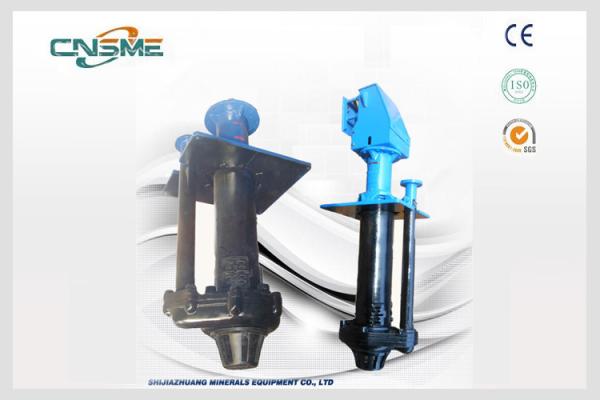

SPR Floor Sump Pump Used Rubber Vertical Centrifugal Slurry Pumps

Introduction:

They are not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs. These vertical slurry pumps can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available. The innovative product design and widely configurable range help our customers reduce costs. At SME, SV are metal lined sump pumps, whereas SVR are rubber lined instead.
Features and advantages of SME SVR rubber lined vertical slurry pumps:
Low maintenance and long life, Low on power consumption, Less wear and tear of parts, thus economical. Looking for rubber lined horizontal/vertical slurry pumps? Call us at +86 311 66692398.

Specifications:

Model SVR-150S
Capacity 108-479.16m3/h
TDH 8.5-40m
Rated Motor Power 110Kw
Speed 500-1000r/min
Max. Efficiency 52%
Standard Shaft Length 1800mm

Construction of Vertical Slurry Pump:

SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump

SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump

Materials of Construction:

Part Description Material
Casing - Black Natural Rubber
Impeller - Black Natural Rubber
Back Liner - Black Natural Rubber
Shaft Carbon Steel
Mounting Plate Mild Steel
Strainers Synthetic Rubber

Specifications:

Natural Rubber Standard
Hardness(Shore A) 52±3
300% Stretching Strength(MPa) ≥4
Tensile Strength(MPa) ≥21
Elongation at Break(%) ≥500
Tensile Set at Break(%) ≤25
Rubber to Metal Bonding Pull Strength(MPa) ≥5
Akron Abrasion cm3/1.61km ≤0.08
Acid & Alkali Resistant PH Value(Liquid) 3-12≤65℃

Performance Curve:

SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump

Projects with Vertical Slurry Pumps:

SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump

SME SPR Sump Pump Orders:

SPR Vertical Slurry Sump Pump 110Kw Centrifugal Floor Sump Pump
