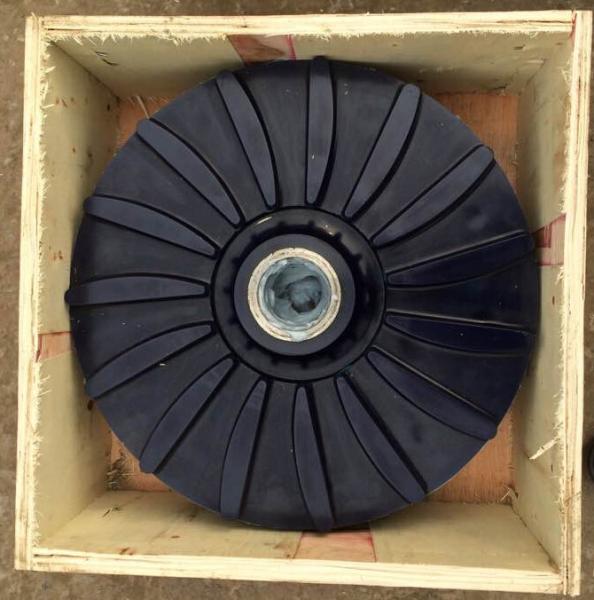

E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
E4036 Centrifugal Industrial Horizontal Slurry Pump Parts Rubber Frame Liner
Specifications
Brand Name :
CNSME
Model Number :
E4036
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Shaft :
Horizontal Type
Flowrate :
720-1620 m3/h
Head :
7-45 m
Speed :
300-650 r/min
Max. Efficiency :
85%
Application :
Submersible,mining,slurry,Sewage
Warranty :
life time warranty sand transfer pump parts,6 Months,lifetime warranty dredge pump,one year for electric slurry trash water pump
Description

E4036 centrifugal industrial horizontal slurry pump rubber spare parts rear liner plate

1. Introduction:

Leading products

·Rubber Cover Plate and Impeller of Slurry pump

·Rubber diaphragm of filter press

·Stator and Rotor of flotation machine

·Rubber and PU sieve plate

·Rubber Liner Plate

·Rubber and PU Cylinder Sieve

·Rubber lined steel pipe

·Plastic lined steel pipe

Application:

The products are widely used in mining, metallurgy, water conservancy,

electric power, chemical machinery and equipment industry,

Completely interchangeable with world famous brand.

For unlisted slurry pump parts, OEM service offered. Drawings needed.

OEM part codes

Here we list some OEM part codes for reference:

Impeller: 127, 147, 145, etc., such as C2127, D3147,E4036, E4147, E4083, F6147, G8147, G10147, FAM1247...

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, .

1. Standard slurry pump spare parts can be 100% replaced.

2. OEM slurry pump spare parts offered.

3. Material: Alloy metal, natural rubber slurry pump spare parts.

4. Good performance, long wear life of high quality slurry pump spare parts.

5. Reliable quality with top technique slurry pump spare parts raw material.

6. As your requirements or your drawing to manufacture any slurry pump spare parts for you.

2. Materials

High chrome alloy

Natural rubber

Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.

Pump parts materials show

No. ITEM MATERIAL
1 Impeller High-chrome alloy
Rubber
2 Volute casing High-chrome alloy
3 Front liner plate High-chrome alloy
Rubber
4 Rear liner plate High-chrome alloy
Rubber
5 Liner High-chrome alloy
6 Expeller High-chrome alloy
7 Shaft sleeve 3Cr13
8 Water-seal ring High-chrome alloy
9 Shaft 45#steel quenching And high temperature tempering
10 Bearing housing Gray iron
11 Expeller ring High-chrome alloy
Rubber
12 Front casing Gray iron or Nodular cast iron
13 Rear casing Gray iron or Nodular cast iron
14 Base Gray iron
15 Support QT500-7

3. Short delivery time

For some parts, stocks are available. We have large producing capacity to shorten the delivery time.

4. Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.
