Specifications
Brand Name :
CNSME
Model Number :
65QV (SV-65Q)
Certification :
ISO/CE/EAC Certificate
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
30 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Flowrate :
23.4-111m3/hr
Speed :
800-1550rpm
Efficiency :
max. 65%
Material :
Rubber 55
Feature :
High Efficiency,Heavy duty,High Flow,wear and corrosion resistant
Warranty :
1 year without wet parts
Type :
Vertical
Shaft Length :
1200mm
Description

65QV Vertical Sump Mud Pump With Agitator in A05 High Chrome Alloy Materials

1.Introduction of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:

65QV-SP pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

2.Standard of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump

1. Standard pump into the liquid depth is 1.2 meters , the highest speed is 1150 r/min.

2.When pump into the liquid depth of 0.9 m, the highest speed is 1500 r/min,

3. When pump into the liquid depth of 1.5 m, the highest speed is 1000 r/min,

4. Standard dipping into the liquid depth is 0.9 meters. Allowed the most high power is15 KW

3. Specifications of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump

SVR Series Vertical Rubber Sump Pump Specifations & Prices
Pump
Model		 S×D
(mm)		 Allowable
Max. Power
(kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 Length
Shaft (mm)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SVR/40P 80×40 15 Rubber
(R55)		 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 900 5 195 275
SVR/65Q 120×65 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 1200 290 420
SVR/100R 175×100 75 54-289 15-80.3 5-35 500-1200 56 1500 390 850
SVR/150S 240×150 110 72-504 20-140 10-35 500-1000 56 1800 480 1720

4.Sectional Drawing of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:

65QV Vertical Sump Pump With Agitator A05 High Chrome Alloy Materials Wear Resistant

5. Projects of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:

65QV Vertical Sump Pump With Agitator A05 High Chrome Alloy Materials Wear Resistant

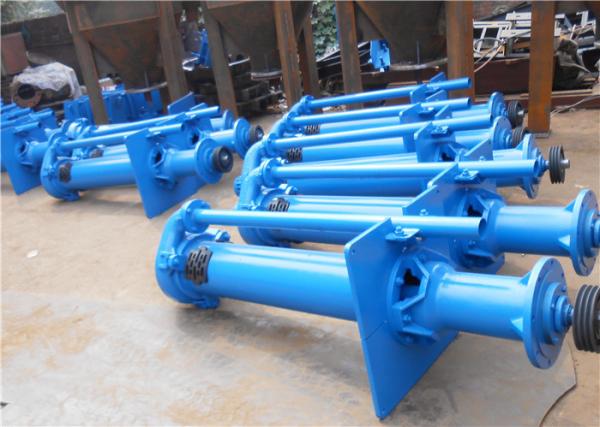

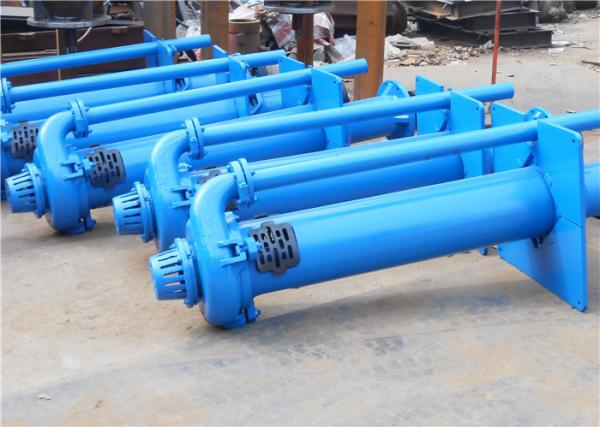

6.Finished Products of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:

65QV Vertical Sump Pump With Agitator A05 High Chrome Alloy Materials Wear Resistant
