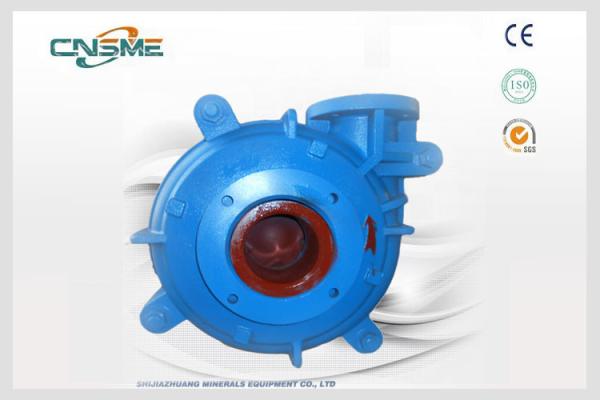

6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps
Specifications
Brand Name :
CNSME
Model Number :
6/4E-
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
300000 Sets per Month
Delivery Time :
7 Working Days
Packaging Details :
Plywood Crate
Material :
High Chrome Alloy A05
Feature :
Heavy Duty
Type :
Horizontal
Principle :
Centrifugal
Use :
River Sand Pump
Hardness :
HRC58-62
Description

6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps

Introduction:

The primary applications for the SME SH/100E(6/4E-) metal slurry pumps are mill discharge, crusher slurry, sand and aggregate or any coarse solids or other severe, abrasive slurries especially in te copper, gold, iron ore, lead-zinc, coal or phosphate plants.

The most dramatic savings will be in these applications, though savings will also be realized on find solids, like fine sand recovery or kaolin. The key advantage of the SH metal slurry pumps is the 10% to 30% lower power, long even wear life and less pump downtime, which results in lowe cost-per-ton pumped, along with better cyclone separation.

Specifications:

Model SH/100E
Oulet 4-inch
Capacity 162-360m3/h
TDH 12-56m
Rated Motor Power 120Kw
Speed 800-1550r/min
NPSH 5-8m

Type Size Frame Impeller: E4147A05 Shaft Seal Type Frame Rating(kw) Normal Max Speed(r/min) Max Passage Size(mm)
SH 100 E 5 Closed Type Metal Vans, Diameter:365mm Gland Packing, Expeller, Mechanical Seal 120 1600 44

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Description Material Name C Mn Si Ni Cr Mo Cu P V S Description Hardness
A05 Ultrachrome 2.92 0.98 0.54 0.8 27 ≤0.8 ... 0.062 ... 0.051 27% Cr Erosion Resistant White Iron 58-62HRC

Construction of SH Slurry Pumps:

6 / 4 E - River Sand Heavy Duty Slurry Pump , Diesel Driven Dredging Slurry Pumps

Performance Curve:

Slurry Pump SH Series Metal Slurry Pump Specifications
Pump
Model		 S×D
(inch)		 Allowable
Max. Power (kw)		 Material Clear Water Performance Impeller Pricing
Capacity Q Head
H(m)		 Speed
n(r/min)		 Max.Eff.
η%		 NPSH
(m)		 No. of
Vanes		 Vane Dia.
(mm)		 Weight
(kg)
Impeller m3/h l/s
SH/25B 1.5×1 15 Metal
(A05)		 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152 91
SH/40B 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184 118
SH/50C 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214 191
SH/75C 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245 263
SH/75D 4×3 60 245 363
SH/100D 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365 626
SH/100E 6×4 120 365 728
SH/150E 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510 1473
SH/150F 8×6 260 510 1496
SH/150R 8×6 300 510 1655
SH/200F 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686 3193
SH/200ST 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686 3750
SH/250F 12×10 260 936-1980 260-550 7-68 300-800 82 6 762 3760
SH/250ST 12×10 560 936-1980 260-550 7-68 300-800 82 6 762 4318
SH/300ST 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965 6409
SH/350TU 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10

1067

10000
