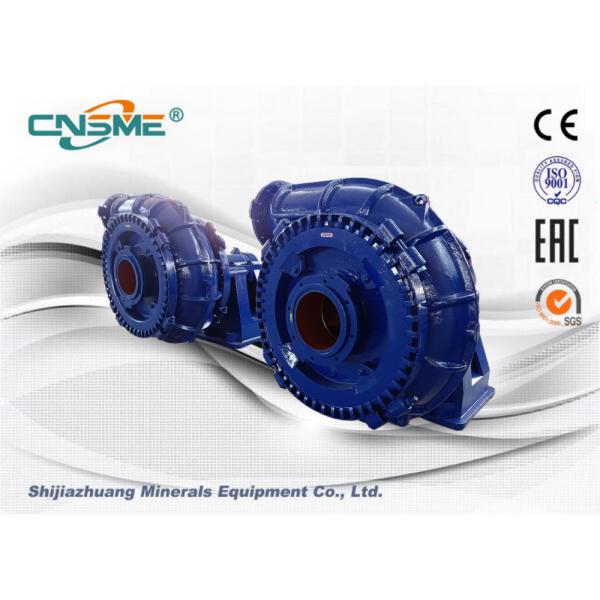

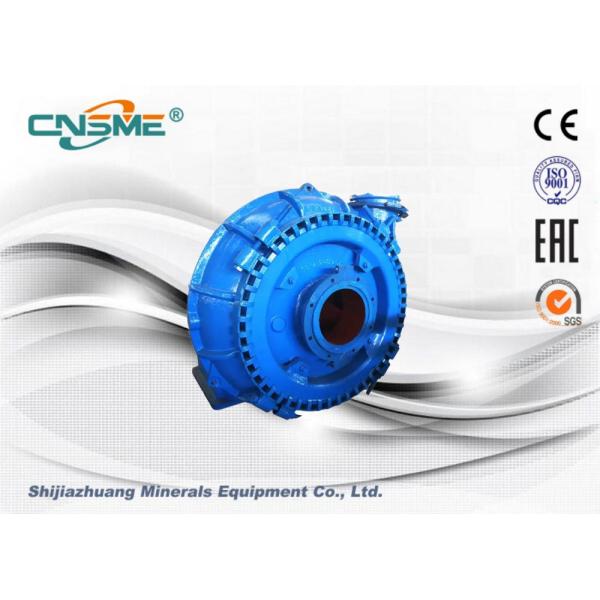

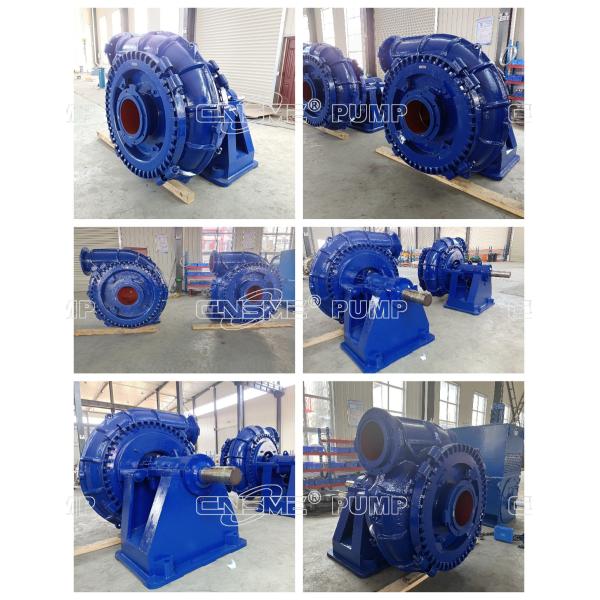

CNSME® 14x12GG Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, dredging, chemical, mill discharge, power sector and tailings as well as specialty applications, It is designed for continuous pumping of high abrasive, high density slurries.

PRODUCT SPECIFICATIONS

PUMP FEATURES

• G gravel pump uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate.
• G gravel pump has wide runner, good anti-clogging performance, and excellent cavitation performance.
• G gravel pump uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak.
• The reliability design greatly improves mean time between failures (MTBF) of complete machine.
• G gravel pump uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the
bearing operates at low temperature.
• Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special
processing, they are used for seawater dusting, and seawater and salt mist electric chemical corrosion conditions.
• In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa

APPLICATIONS

• Mining & Mineral Processing

The slow running speeds of the CNSME heavy duty rubber lined slurry pump, together with the comprehensive choice of abrasion resistant alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing applications.

• Dredging Sand Project

Designed for easy and simple strip down and re-assembly, the CNSME heavy duty rubber lined slurry pump minimises downtime, making it the ideal choice where installed stand by pumps are not available.

• Sand Mining Project

Wherever abrasive solids are causing premature failure of pumps, the Tobee heavy duty rubber lined slurry pump range has the right combination of performance, wear life and reliability to bring the customer the lowest cost of ownership.
