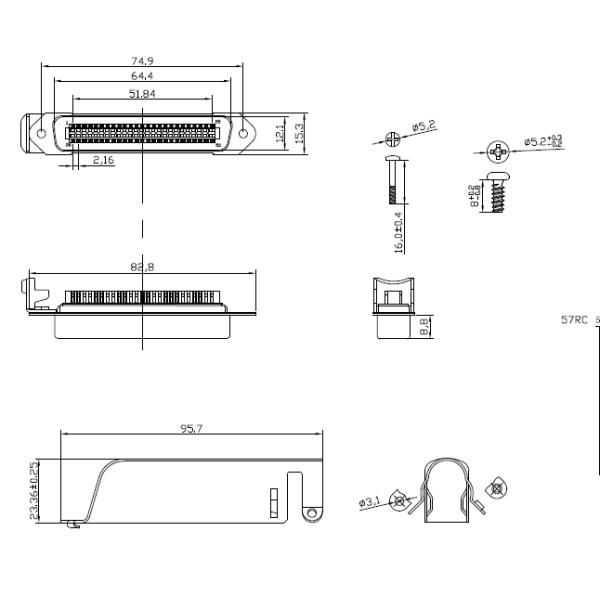

DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57101
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Product Name :
centronic solder connector
pitch :
2.16mm pitch
Product Line :
Champ Connector
Type :
Centronic Solder Connector
Number of Terminal :
50pin 25pairs
Gender :
Male plug
gold plating :
1U", 3U", 5U", 10U", 15U",30U"
material :
brass & PBT
Description

DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts

DDK Centronic Champ Plug Ribbon Cable Connector , Solder Type Contacts with L Shape metal hood
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector


Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender: Male
Connector Style: Plug
Certerline : 2.16mm(0.85in)
Number of Position: 50pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded: Yes
Orientation: Parllel Lines
Cover L Shape metal hood


Materials

Contact Material: Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel


Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C


Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
