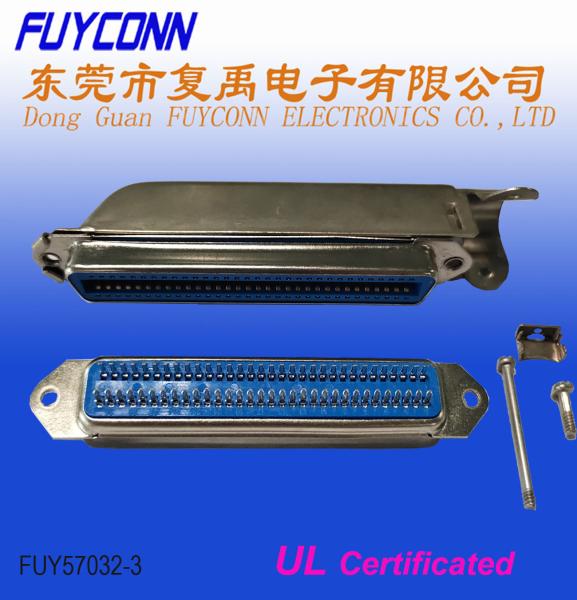

Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57032-3
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Product Name :
Centronics Solder Connector
Product Line :
Champ connector
Number of Terminal :
64 pin
gold plating :
1U", 3U", 5U", 10U", 15U",30U"
Contact Material :
Brass
Gender :
Female
insulation material :
PBT
Cover :
right angle metal cover

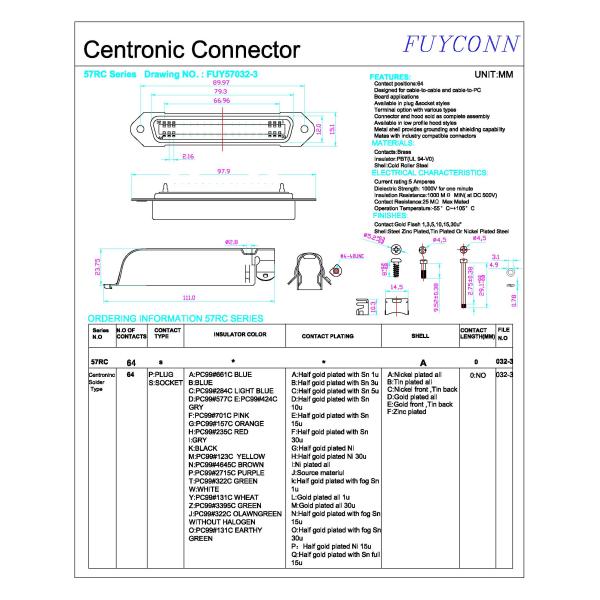

Description

64pin Solder Female 32paris Centronics Connector , right angle metal cover connector

Solder Female 64 Pin Centronics Connector 2.16mm ptich 32pairs Champ connector with hood
Detail Description:
Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 64 pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector


Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender: Male
Connector Style: Plug
Certerline : 2.16mm(0.85in)
Number of Position: 64 pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded: Yes
Orientation: Parllel Lines
Mating connector lock: Screwlocks


Materials

Contact Material: Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel


Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C


Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
