Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57139
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
connector line :
centronic connector
connector type :
pcb right angle connector
no. of pin :
14pin 24pin 36pin 50pin
contact material :
phosphor bronze
insulation material :
PBT
pitch :
2.16mm pitch connector
gold plating :
1u" 3u" 5u" 10u" 15u" 20u"
pcb mounting :
pcb lock
Description

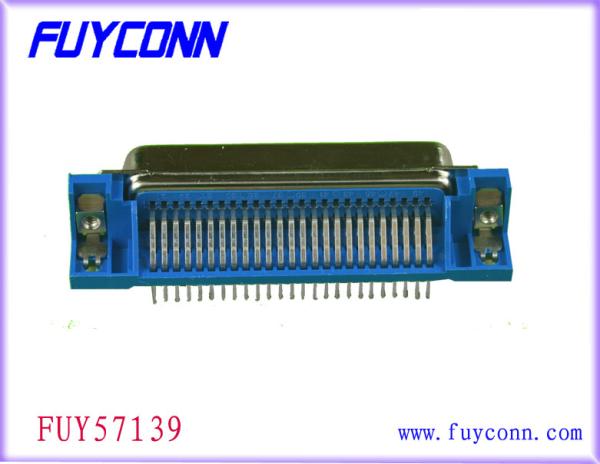

FUY57139 DDK 57-14P Centronics Male Plug Connector PCB Mouting R/A Solder Termination 2.16 mm pitch

2.16mm pitch 57 series connector Right angle pcb male centronic connector 14pin 24pin 36pin 50pin

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

Plug DDK Right Angle PCB 14 Pin Centronic Connector Certificated UL
Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 14 24 36 50pin
PCB Mount Style:Right Angle
Connector Style:Plug
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mating Lock: Z Bracket Board lock
Mounting Option: Reversed, Rivet Z Bracket
Application: PCB Board

Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:Centronics PCB Mounting Connector
Product Line:Champ Connector
Gender: Male
Connector Style: Plug
Certerline :2.16mm(0.85in)
Number of Position: 14 24 36 50 pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals TypeRight Angle Terminals
Insulator Color:Black or Blue
Shielded: Yes
Orientation: R/A
Mating connector lock: Board Lock

Materials

Contact Material: Phosphor Bronze
Insulator:PBT (UL 94-V0)
ShellNickel Plated Steel

Electrical Character

Current Rating:5Amp
Withstanding Voltage:AC 1000v r.m.s
Insulation Resistance:1000 Megohms Minimum at DC 500V
Contact Resistance:25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
