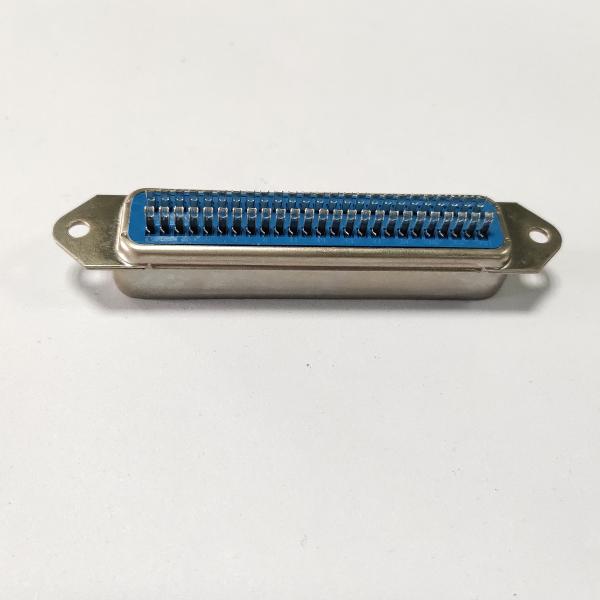

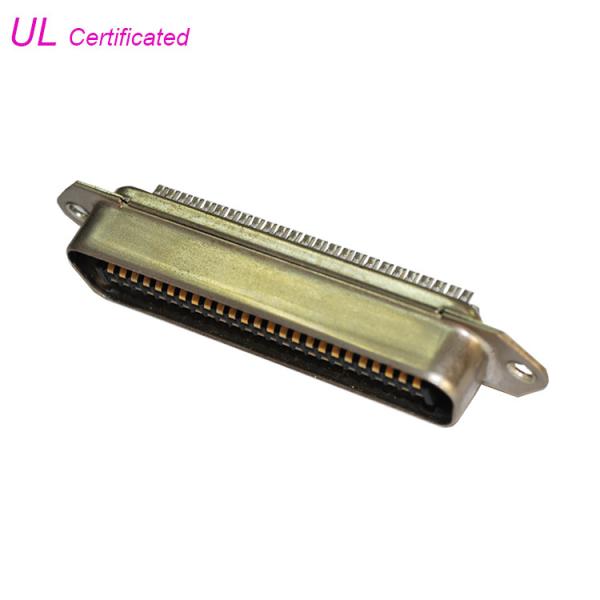

Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57028
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
product name :
centronic solder connector
product line :
champ connector
gender :
male connector
no. of pin :
14pin 24pin 36pin 50pin
color :
black or blue
gold plating :
1U", 3U", 5U", 10U", 15U",30U"
contact material :
brass
pitch :
2.16mm pitch
Description

Male Solder 50 36 24 14Pin DDK Champ Centronic Ribbon Connector with Hex Nuts Certified UL

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.


The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

Male Solder 50 Pin DDK Champ Centronic Ribbon Connector 2.16mm pitch

Detail Description

Product Category: Centronic connector
Type: Centronic Solder Connector
Product Line: Champ Connector
Number of Terminal: 50 36 24 14pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Hard connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Back Rivet Hex Screws Nuts
Application: Communication Equipment

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Applications
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender: Male
Connector Style: Plug
Certerline : 2.16mm(0.85in)
Number of Position: 50 36 24 14pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded: Yes
Orientation: Ribbon Cable
Mating connector lock: Screwlocks

Materials

Contact Material: Brass
Insulator: PBT (UL 94-V0)
Shell Cold Roller Steel

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Test Equipment
9,Telemetering
10, Dot Matrix Printer
