Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57149D-24P
MOQ :
1000pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
connector type :
right angle pcb connector
gender :
female connector
no. of pin :
14pin 24pin 36pin 50pin, 64pin
pitch :
2.16mm pitch connector
gold plating :
1u", 3u", 5u", 10u", 20u", 30u"
insulation color :
black or blue
Description

57 Series DDK CN24 Female Centronic Connector, Right Angle PCB Mounting Amphenol 57LE DDK Centronics connector 24pin

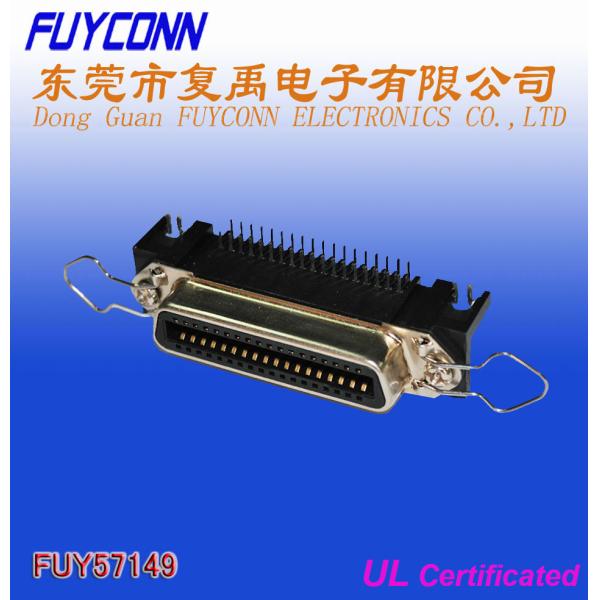

FUY57149D 24 Pin configurations Centronic PCB Right Angel Female connector with Jack Screws and Board Lock

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.


The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

DDK 24 Pin Centronic Connector PCB Right Angle Female Type

Detail Description:

Product Category: Centronic connector
Product Line: Champ Connector
Type: Right Angle PCB Connector
Number of Terminal: 24 pin
PCB Mount Style:Right Angle
Connector Style:Receptacle
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mating Lock: Z Bracket Board lock
Mounting Option: Spring Latches, Rivet Z Bracket
Application: PCB Board

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics PCB Mounting Connector
Product Line: Champ Connector
Gender: Female
Connector Style: Receptacle
Certerline : 2.16mm(0.85in)
Number of Position: 24 pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type Right Angle Terminals
Insulator Color: Black or Blue
Shielded: Yes
Orientation: R/A
Mating connector lock: Board Lock , Spring Latches

Materials

Contact Material: Phosphor Bronze
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
