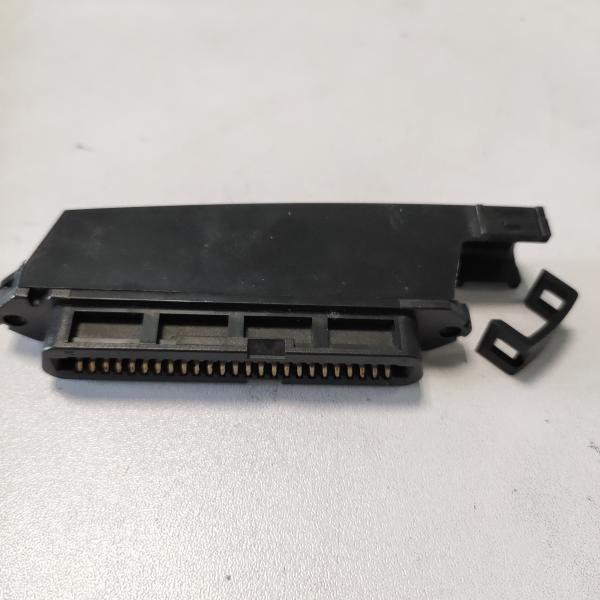

90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57146-1A
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T, Western Union or Paypal
Supply Ability :
1 million/ month
Product Name :
50 Pin Centronics Connector
Product Line :
Champ Connector
Type :
Centronic IDC Connector
Connector Style :
Receptacle
Number Of Terminal :
50 Pin
Gender :
Female
Mounting Option :
90 Degree Cable Exi
Insulator Material :
PPO
Description

90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header

Centronix 50 pin IDC Type Connector 25 paris Female Type with 90 Degree Plastic Cover

The Centronics 50-pin connector is arranged in two rows of pins each with 25 contacts. This connector is held in place by bail locks. The Centronics 50 connector is most often used by older SCSI-1 devices (scanners, storage devices, etc.). A slight variant of the Centronics 50 connector is used in voice/data applications. This variant is commonly called a Telco connector.

Product Features:
Product Type: Centronics IDC Connector
Product Line: Champ Connector
Gender: Female
Connector Style: Receptacle
Certerline : 2.16mm(0.85in)
Number of Position: 50 pin / 32 pair
Contact Plating: Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"
Insulator Color: Black
Shielded: Yes
Orientation: 90 Degree Cable Exit
Mating connector lock: Screwlocks

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Number of Terminal: 50 pin
Connector Style:Receptacle
Gender: Female
Insulator Color: Black
Insulator Material: PPO
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: 90 Degree Cable Exit
Cover: Plastic Cover or No Cover both are available
Application: RJ21 Cable

Common Features:
Designed for Cable-to-cable and cable-to-PC Board applications
Avilable in Plug & Socket Style
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Materials
Contact Material: Phosphor Bronze
Insulator: PPO (UL 94-V0)
Housing Material: PPO Thermoplastic Cover

Electrical Character
Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Application
1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable

Advantage:

1, ROHS compliant, UL-approved
2, High quality, Competitive price
3, Quick delivery time
4, Free sample available in 2 days

Technology Parameters

90 Degree 50 Pin Centronics Connector Female 25 pair Champ IDC Header
