50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57050
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Product Name :
Centronics Connector
pitch :
2.16mm pitch
Type :
Centronic Solder Connector
color :
grey
Number of Terminal :
50 pin
Gender :
Male plug
housing :
plastic cover or wire clip
gold plating :
1U", 3U", 5U", 10U", 15U",30U"
contact material :
brass
insulation material :
PBT
Description

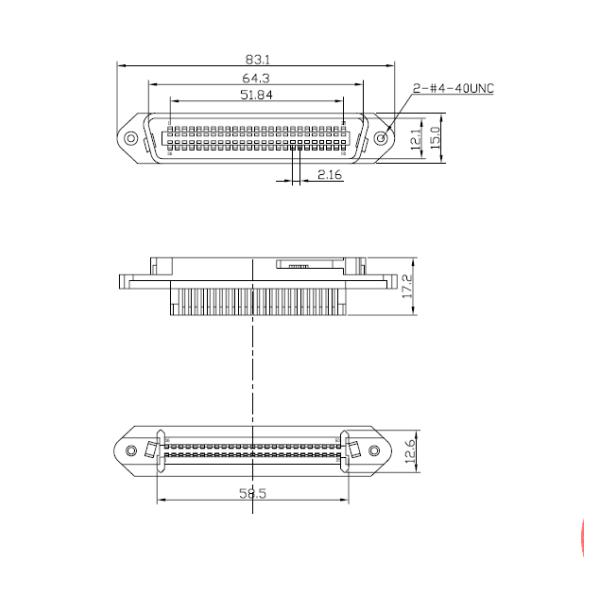

FUY57050 DDK 2.16mm pitch Champ Plug Centronics Connector 50P Male Solder type Header

50 Pin Champ Solder Male Centronics Connector With plastic cover or wire clip

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 pin
Connector Style:Plug
Gender: Male
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Type: Easy and Soft connection
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Riveting

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics Solder Connector
Product Line: Champ Connector
Gender: Male
Connector Style: Plug
Certerline : 2.16mm(0.85in)
Number of Position: 50 pin
Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color: Black or Blue
Shielded: Yes
Housing Plastic housing
Mating connector lock: Screwlocks

Materials

Contact Material: Brass
Insulator: PBT (UL 94-V0)
Shell Nickel Plated Steel

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

Advantage

1,ROHS compliant, UL-approved

2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
