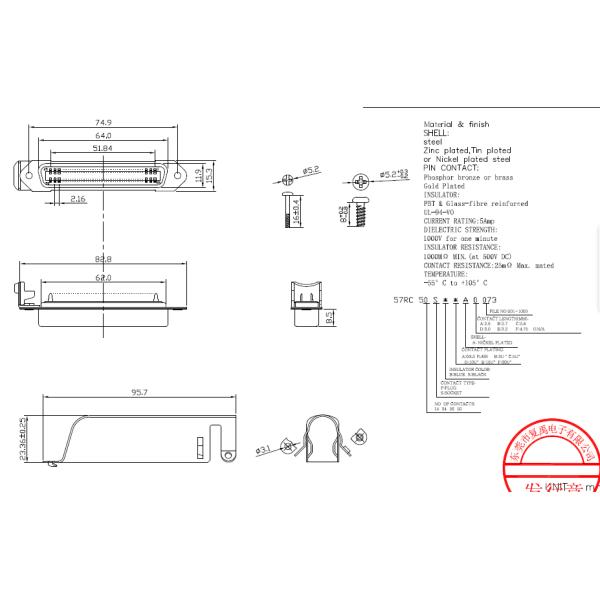

L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
L Shape Metal housing Centronic solder Connector reverserd 50pin Female type
Specifications
Place of Origin :
China
Brand Name :
FUYCONN
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Model Number :
FUY57073
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Vacuum Tray + Carton
Delivery Time :
7-10 days
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Product Name :
Centronics Connector
Product Line :
Champ Connector
pitch :
2.16mm pitch
color :
blue
Number of Terminal :
50pin 25pairs
Gender :
Female
housing :
90 degree metal cover
gold plating :
1U", 3U", 5U", 10U", 15U",30U"
contact material :
brass
insulation material :
PBT
Description

25pairs Female reversed Centronic Connector solder type with metal cover

FUY57073 57 Series DDK Centronix Female Header Connector Solder pins 0.085in pitch

L Shape Metal housing Centronic solder Connector reverserd 50pin Female type

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications

Board Application

Terminal Option with various types

Connector and hood sold as complete assembly

Avilable in low profile hood style

Metal shell provides grounding and shielding capability

Mates with industry compatible connector

Product Features

Product Type:

Centronics Solder Connector

Product Line:

Champ Connector

Gender:

Female

Connector Style:

Receptacle

Certerline :

2.16mm(0.85in)

Number of Position:

50 pin

Contact Plating:

Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")

Insulator Color:

Black or Blue

Shielded:

Yes

Orientation:

Reversed

Mating connector lock:

Screwlocks

Materials

Contact Material:

Brass

Insulator:

PBT (UL 94-V0)

Shell

Nickel Plated Steel

Electrical Character

Current Rating:

5Amp

Withstanding Voltage:

AC 1000v r.m.s

Insulation Resistance:

1000 Megohms Minimum at DC 500V

Contact Resistance:

25M∩ Max Mated

Operation Temperature:

-55°C to +105°C

Application

1, VDSL Teleccom Equipment

2, Computer Peripherals

3, Communication Equipment

4, RJ21 Cable

5, Cable to Panel

6, Cable to cable

7,Computer terminal

8,Telemetering

9,Test Equipment

10, Printer

Advantage

1,ROHS compliant, UL-approved

2,High quality, Competitive price

3,Quick delivery time

4,Free sample available in 2 days
