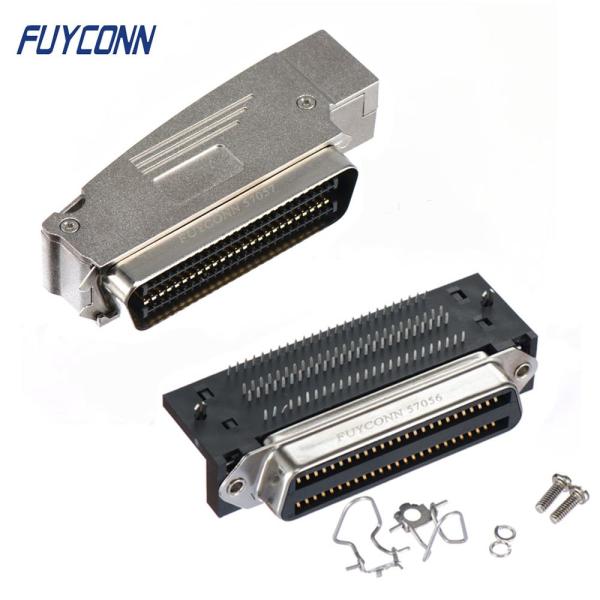

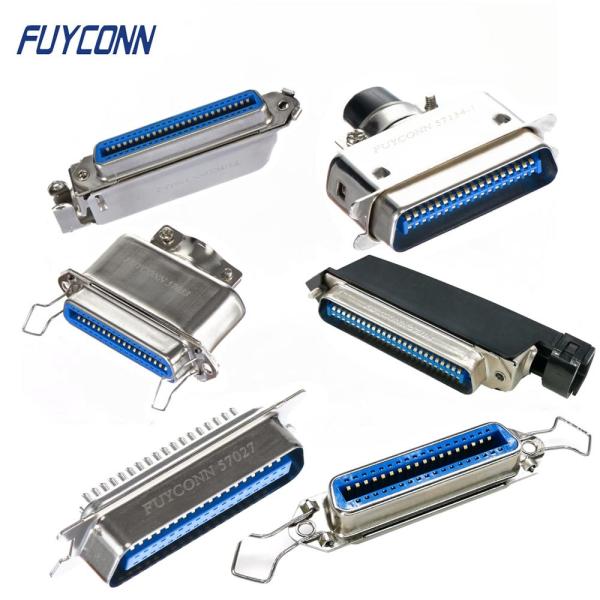

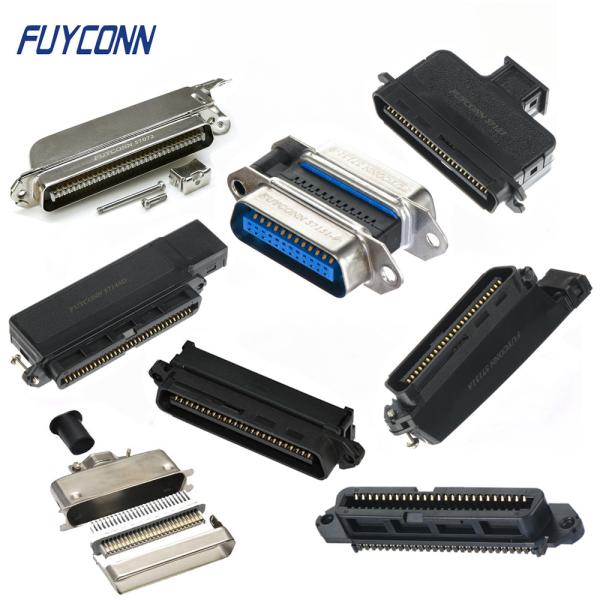

0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
0.85 Champ Centronic Connector Solder Cup / PCB / IDC Type Male / Female 2.16mm
Specifications
Brand Name :
FUYCONN
Model Number :
Centronic Connector
Certification :
UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1 million/ month
Delivery Time :
7-10 days
Packaging Details :
Vacuum Tray + Carton
Product Name :
Centronics Connector
Gender :
Female / Male
Connector Type :
Solder Cup / PCB / IDC
No. of pin :
14/24/36/50/64/100 pin
Pitch :
2.16mm
Gold plating :
1U", 3U", 5U" ,10U", 15U", 30U"
Contact Material :
Phosphore Bronze
Insulation Material :
PBT
Description

Centronic Connector Solder Cup/PCB/IDC Type Male /Female 2.16mm 0.85" Champ Connector

57RI 2.16mm pitch TYCO 36 pin IDC Connector Feamle Receptacle Black Insulator

0.85

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic IDC Connector
Number of Terminal: 50/64 pin
Connector Style:Receptacle
Gender: Female
Insulator Color: Black
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Centerline = 2.16mm [0.085in]
Mounting Option: With Spring
Application: Communication Equipment

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Avilable in Plug & Socket Style
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type: Centronics IDC Connector
Product Line: Champ Connector
Gender: Female
Connector Style: Receptacle
Certerline : 2.16mm(0.85in)
Number of Position: 50/64 pin
Contact Plating: Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"
Insulator Color: Black
Shielded: Yes
Orientation: Parllel Lines
Mating connector lock: Screwlocks

Materials

Contact Material: Phosphor Bronze
Insulator: PBT (UL 94-V0)

Electrical Character

Current Rating: 5Amp
Withstanding Voltage: AC 1000v r.m.s
Insulation Resistance: 1000 Megohms Minimum at DC 500V
Contact Resistance: 25M∩ Max Mated
Operation Temperature: -55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

Advantage

1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
