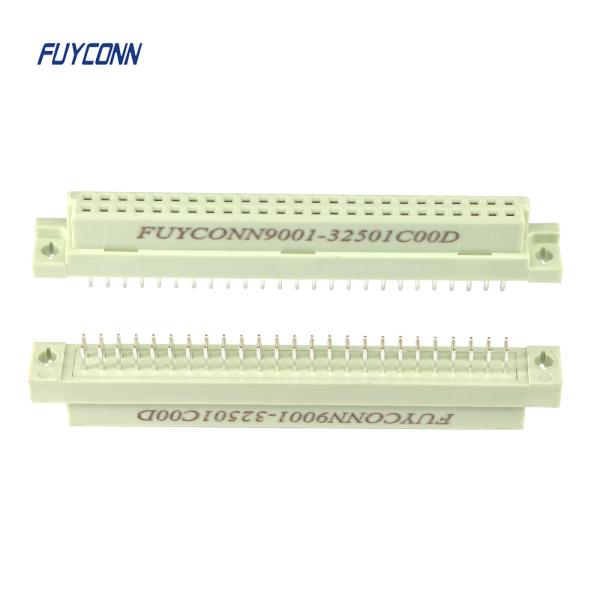

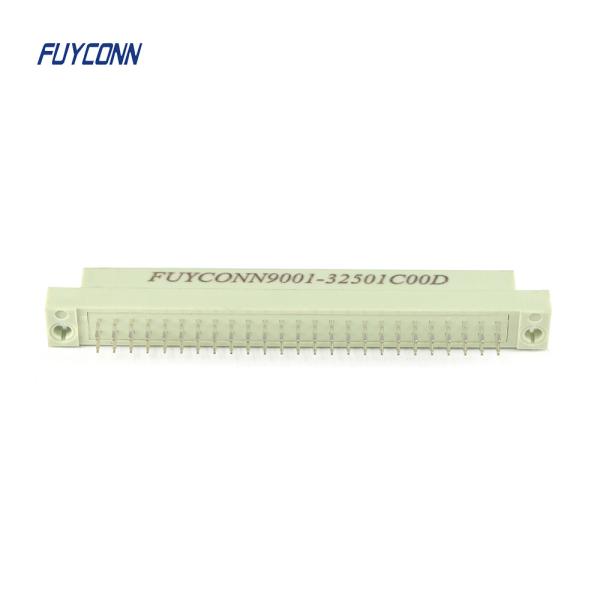

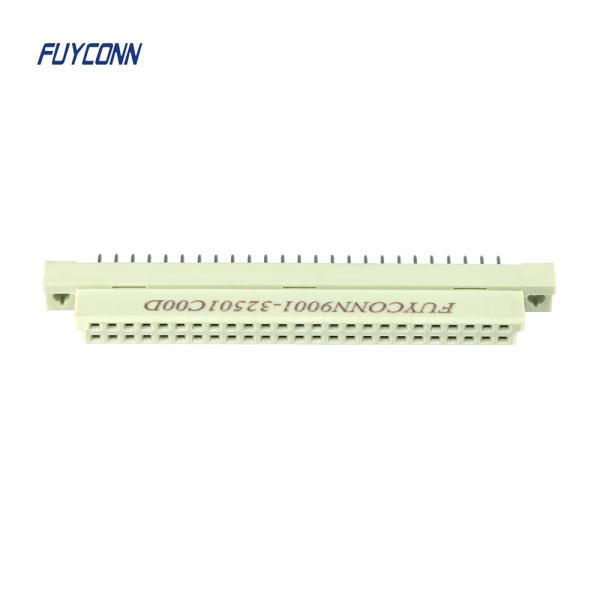

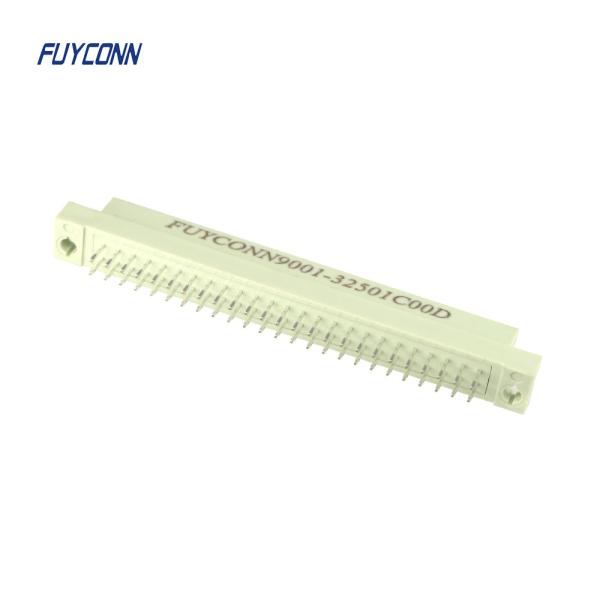

Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector
Specifications
Brand Name :
FUYCONN
Model Number :
FUYDIN160-250S
Place of Origin :
China
MOQ :
10
Price :
USD0.5-USD2
Payment Terms :
T/T, Paypal
Supply Ability :
100000000/month
Delivery Time :
1-4 weeks
Packaging Details :
Tray + Carton
Product Category :
DIN41612 Connector
Product Line :
Eurocard Connector
Number of Terminal :
2*25 50pin
Number of Rows :
2 rows
Terminals Type :
Vertical / Straight
Connector Type :
PCB Type
Insulator Color & Material :
Grey & PBT
Contact pin Material :
Phosphor Bronze
Contact Plating :
Gold plating(1u",3u",5u",10u",15u")
Pitch :
2.54mm
Gender :
Female
Description

2.54mm pitch Vertical PCB 2rows 50Pin DIN 41612 Connector, PCB Straight 2*25 50Pin Female 250S DIN41612 Connector

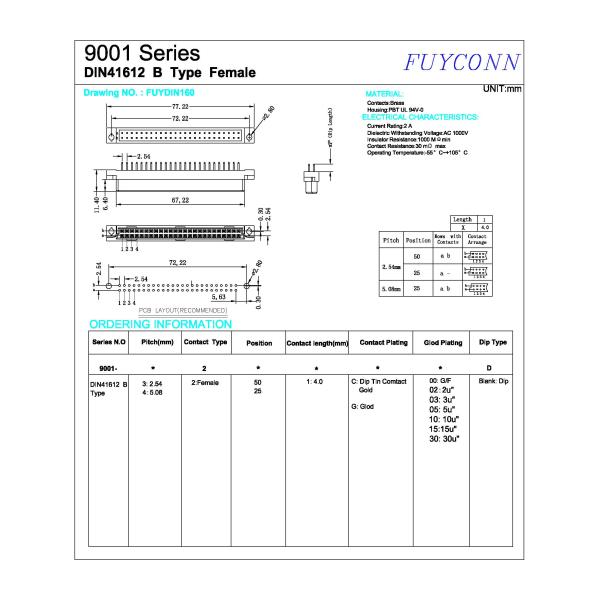

DIN 41612.pdf

DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.

Product features:
1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Female
5. Number of Position: 50pin
6.Number of rows: 2 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Vertical / Straight
12. Pitch 2.54mm

Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

Straight 50 Pin Connector Female , Eurocard Vertical DIN41612 Connector

Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
