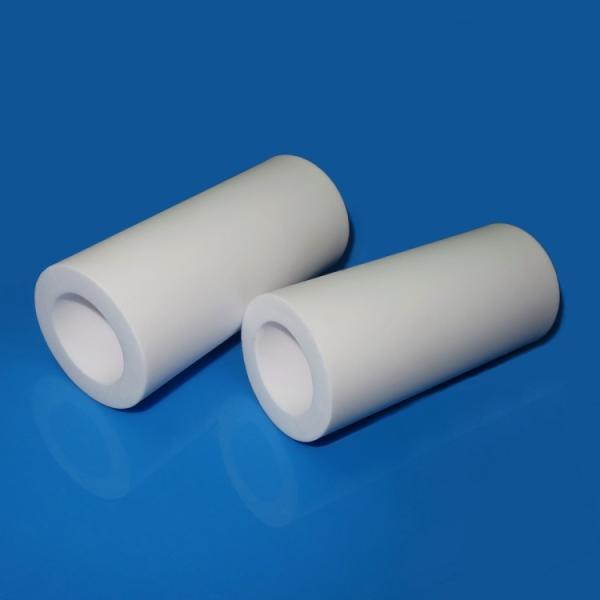

Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable
Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.ZRCP.001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
100 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
100000 sets per month
Delivery Time :
5~6 weeks
Packaging Details :
Bags with export carton
Product name :
Y2O3 stabilized zirconia Ceramic Tube
Material :
Zirconium Oxide Ceramic
Type :
Advanced Ceramic Parts
Color :
Pure white
Size :
50mm x 200mm
Feature :
High accuracy, Low Thermal Conductivity
Tolerance :
as design drawing or OEM
Shape :
Customized Designs
Surface treatment :
Diamond-polished
Application :
Industrial Ceramic
Description

Superb Wear Resistance Precision Y2O3 Yttria Stabilized Zirconia Ceramic Tubes

Benefits of zirconia ceramic tubes :

1. Excellent wear resistance, much higher 276 times than stainless steel

2. Higher density than most of technical ceramics, over than 6 g/cm3

3. High hardness, over than 1300 MPa for Vicker

4. Can withstand higher temperatures up to 2400°

5. Low thermal conductivity, less than 3 W/m.k at room temperature

6. Similar coefficient of thermal expansion as stainless steel

7. Exceptional fracture toughness reaches up to 8 Mpa m1/2

8. Chemical inertness, aging resistance and not rust forever

9. Resistance to molten metals due to an extraordinary melting point

Specification of the ceramic tube:

Material available Zirconia (ZrO2), Alumina(Al2O3), Silicon carbide(SiO2), Silicon nitride(Si3N4)
Forming methods Dry pressed, Ceramic injection molding, Hot pressed, ISO pressed
Available types Flanged tubes, slotted tubes, one-end closed tubes, square tubes
Specification OD can be from 1 to 50mm, length can be from 10mm to 500mm
Precision processing CNC machining, Precision grinding, Polishing, Lapping,
Tolerance The tolerance of OD and ID can be 0.001mm, the tolerance of length can be 0.001mm
Surface quality Free of cracks, foreign contamination, mirror surface better than Ra0.1
Key parameters Roughness to be 0.02mm, Parallelism to be 0.001mm

Description of zirconia ceramic tube:

Zirconium oxide, also called Zirconia, is an extremely tough technical ceramic with a hardness of >9 Mohs. Zirconia has the highest strength and fracture toughness at room temperature among all the advanced ceramic materials, In addition to withstanding attacks from molten metal, organic solvents, strong acids, and strong alkalis. So zirconia ceramic parts always used in various severe service conditions.
Jinghui ceramics provide many selections of zirconia ceramic tubes in different types partially stabilizer, such as yttria (Y2O3) stabilized tube, magnesia (MgO) stabilized tube, Cerium stabilized tube, also we support various customized ceramic tubes with flanged, slotted, multiple holes, half tubes. Whatever, it's a prototyping case or high volume demand, we could help your business.

Gallery of zirconia ceramic components

We produce various zirconia ceramic components in different materials with a special design.

Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable



Datasheet of Technical ceramics

Property Units Material
99.5% alumina 99%alumina 95% alumina ZrO2
(Y-TZP)

ZrO2

(TTZ)
Density g/cm3 ≥3.85 ≥3.80 ≥3.60 ≥5.95 ≥5.72
Water absorption % 0 0 0 0 0
Hardness HV 1700 1700 1500 1300 900
Flexural strength Mpa ≥379 ≥338 ≥320 ≥1200 ≥1200
Compressive strength Mpa ≥2240 ≥2240 ≥2000 ≥1990 1750
Fracture toughness Mpa m1/2 4-5 4-5 3-4 6.5-8 11
Max. service
temperature		 ℃ 1675 1600 1450 1000
CTE 1×10 -6 /℃ 6.5~8.0 6.2~8.0 5.0~8.0 8.0~9.5 10.2
Thermal shock T(℃) ≥250 ≥200 ≥220 ≥300 350
Thermal conductivity(25℃) W/m.k 30 29 24 3 3
Volume resistivity ohm.cm
25℃ ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 11 ＞1 x 10 11
300℃ 1 x 10 12 8 x 10 11 10 12 -10 13 1 x 10 10 1 x 10 10
500℃ 5 x 10 10 2 x 10 9 1 x 10 9 1 x 10 6 1 x 10 6
Insulation strength KV/mm 19 18 18 17 20
Dielectric constant(1Mhz) (E) 9.7 9.5 9.5 29 28


Manufacturing flow chart of technical ceramic parts

We have in-housing comprehensive manufacturing types of equipment, including forming, sintering, CNC machining,

precision grinding, laser cutting and so on, it helps us to control the quality very well, also it greatly benefits cost control.

Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable

Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other,

to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

Rust Proof Y2O3 Porcelain Tube Bar Toughened Wear Resistance Thremal Stable


Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQs(Frequently asked questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
