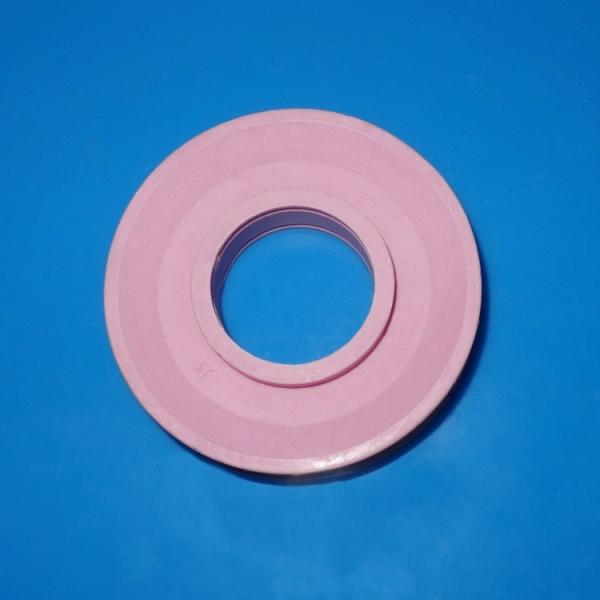

95% 99% Ceramic Thread Guides For Textile Pulleys Sheaves Self Lubricating
95% 99% Ceramic Thread Guides For Textile Pulleys Sheaves Self Lubricating
95% 99% Ceramic Thread Guides For Textile Pulleys Sheaves Self Lubricating
95% 99% Ceramic Thread Guides For Textile Pulleys Sheaves Self Lubricating
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.CWG-001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram, L/C
Supply Ability :
5000000 pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Ceramic pulleys sheaves
Material :
Alumina
Color :
White, pink or ivory
Dimensions :
As the drawing
Finish :
Fine polished
Surface finish :
Polish Ra0.2
Feature :
High hardness; wear/corrosion resistance
Application :
Wire Guide for textile machinery
Shipment :
By air or sea
HS Code :
8145700000
Description

Industrial Textile 95% 99% High Alumina Ceramic Pulleys Sheaves

Features of alumina ceramic pulleys sheaves:

1. Exceptional hardness, bending strength, toughness

2. Good insulation, anti-magnetic, free static electricity

3. Corrosion resistance in harsh working conditions

4. Excellent thermal shock resistance and good thermal stability

5. Nox-toxic, healthy material, eco-friendly material

6. Meet with RoHS, REACH regulation completely

Specification of alumina ceramic pulleys sheaves:

1. Raw material: 95% alumina, 99% alumina, zirconium oxide, titania

2. Dimensions: min. diameter can be 10mm, max. diameter can be 50mm

3. Design: single groove, double grooves, or multiple grooves

4. Tolerance: general tolerance ± 1% of the dimensions, or better via a precision process

5. Surface finish: mirror surface, to be Ra0.3 ~ 0.4 for 95% alumina ceramic eye, to be Ra 0.2 ~0.3 for 99% alumina ceramic eye

Description of alumina ceramic pulleys sheaves:

Ceramic Pulley sheaves guide a wire, cable or thread within the groove while rotating. The grooves might be U, V-shaped or flat bottomed which depends on customer special application and requirement. Our facility ofter hones the ID to accept a bearing or bushing. On many pulleys, we can machine snap-ring grooves to allow for the replacement of bearings well.

With our in-house comprehensive manufacturing types of equipment, we have a selection of ceramic pulley sheaves with standard size, also we also support customized specification.

Besides ceramic pulleys sheaves, we have been producing various ceramic eyelet guides, ceramic bow guides, ceramic traverse guides, ceramic pin guides and so on.

95% 99% Ceramic Thread Guides For Textile Pulleys Sheaves Self Lubricating

Technical datasheet of typical materials for alumina ceramic pulleys sheaves

Property Units 95% alumina 99% alumina 99.5% alumina Zirconia Titania
Color White, pink White, pink, ivory Pink, ivory, white White, Yellow Black, Gray, Yellow
Density g/cm3 ≥3.60 ≥3.80 ≥3.85 ≥6.0 ≥4.0
Water absorption % 0 0 0 0 0
Hardness HV 1500 1700 1700 1300 800
Flexural strength Mpa ≥320 ≥338 ≥379 ≥1200 ≥158
Compressive strength Mpa ≥2000 ≥2240 ≥2240 ≥1990
Fracture toughness Mpa m1/2 3-4 4-5 4-5 6.5-8 3.2
Thermal Expansion Coefficient(20-800℃) 1×10 -6 /℃ 5.0~8.0 6.2~8.0 6.5~8.0 8.0~9.5 8.8
Thermal conductivity W/m.k (25℃) ≥220 ≥200 ≥250 ≥300 ≥330
Max. service temperature ℃ 1500 1600 1675 1000 1000
Insulation strength KV/mm 18 18 19 17 3.93
Dielectric constant (1Mhz) (E) 9.5 9.5 9.7 29 85


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
