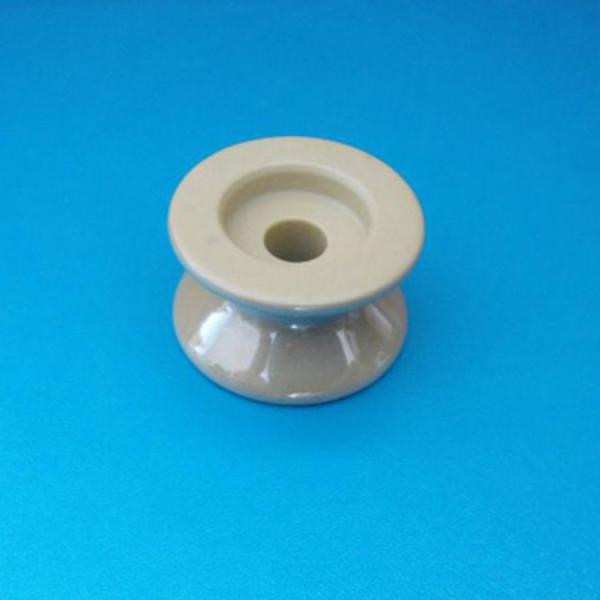

TiO2 Titania Technical Ceramic Parts Bobbin Industrial Grade For Winding Machine
TiO2 Titania Technical Ceramic Parts Bobbin Industrial Grade For Winding Machine
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.CWG-001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram, L/C
Supply Ability :
5000000 pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Titania Ceramic Bobbin
Material :
Titania
Color :
Yellow, Black
Dimensions :
As the drawing
Finish :
Fine polished
Surface finish :
Polish Ra0.2
Feature :
High hardness; wear/corrosion resistance
Application :
Wire Guide for textile machinery
Shipment :
By air or sea
HS Code :
8145700000
Description

Mirror Polished Textile Custom TiO2 Titania Ceramic Bobbin for Winding Machine

Features of titania ceramic bobbin:

1. Exceptional bending strength, hardness, toughness

2. Corrosion resistance in harsh working conditions

3. Good insulation, anti-magnetic, free static electricity

4. Nox-toxic, healthy material, eco-friendly material

5. Excellent thermal shock resistance and good thermal stability

6. Meet with RoHS, REACH regulation completely

Specification of titania ceramic bobbin:

1. Raw material: titania,95% alumina, 99% alumina, zirconium oxide

2. Dimensions: min. diameter can be 10mm, max. diameter can be 50mm

3. Design: single groove, double grooves, or multiple grooves

4. Tolerance: general tolerance ± 1% of the dimensions, or better via a precision process

5.Surface finish: mirror surface, to be Ra0.3 ~ 0.4 for 95% alumina ceramic eye, to be Ra 0.2 ~0.3 for 99% alumina ceramic eye

Description of titania ceramic bobbin:

Ceramic rollers are used to change the direction and guide the direction of enameled wire. The ceramic bobbin in the central section is made of precision ceramics, and the groove is to be polished up to Ra0.2, a high-speed bearings are installed in the ceramic bobbin so that the sliding distance between the enameled wire and the ceramic bobbin is less than 0.2mm to ensure the jumping of enameled wire within a very tiny range during winding. The baffle plates on both sides of the ceramic roller prevent the enameled wire from jumping out during winding, and at the same time keep the tension during winding stable.

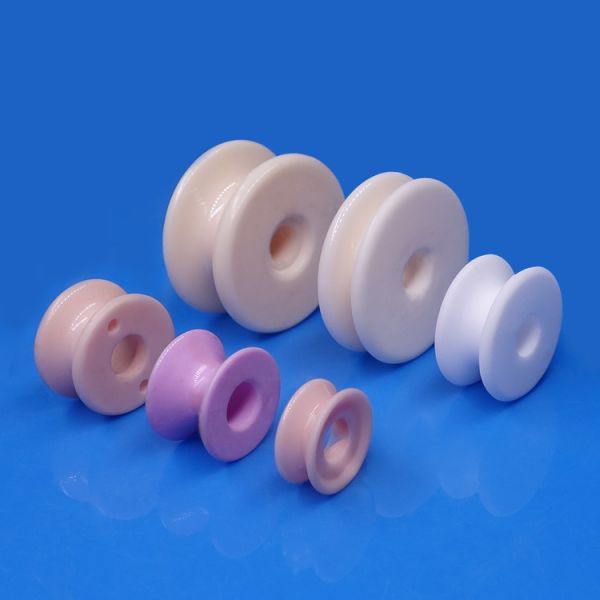

TiO2 Titania Technical Ceramic Parts Bobbin Industrial Grade For Winding Machine

Technical datasheet of typical materials for ceramic wire rollers

Property Units 95% alumina 99% alumina 99.5% alumina Zirconia Titania
Color White, pink White, pink, ivory Pink, ivory, white White, Yellow Black, Gray, Yellow
Density g/cm3 ≥3.60 ≥3.80 ≥3.85 ≥6.0 ≥4.0
Water absorption % 0 0 0 0 0
Hardness HV 1500 1700 1700 1300 800
Flexural strength Mpa ≥320 ≥338 ≥379 ≥1200 ≥158
Compressive strength Mpa ≥2000 ≥2240 ≥2240 ≥1990
Fracture toughness Mpa m1/2 3-4 4-5 4-5 6.5-8 3.2
Thermal Expansion Coefficient(20-800℃) 1×10 -6 /℃ 5.0~8.0 6.2~8.0 6.5~8.0 8.0~9.5 8.8
Thermal conductivity W/m.k (25℃) ≥220 ≥200 ≥250 ≥300 ≥330
Max. service temperature ℃ 1500 1600 1675 1000 1000
Insulation strength KV/mm 18 18 19 17 3.93
Dielectric constant (1Mhz) (E) 9.5 9.5 9.7 29 85


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
