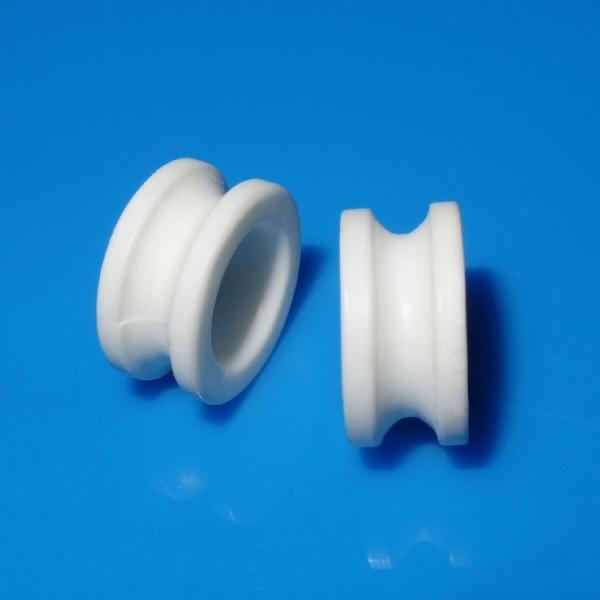

Roller Ceramic Wire Guides Well Frictional Behavior Smooth Stiffness Texture
Roller Ceramic Wire Guides Well Frictional Behavior Smooth Stiffness Texture
Roller Ceramic Wire Guides Well Frictional Behavior Smooth Stiffness Texture
Roller Ceramic Wire Guides Well Frictional Behavior Smooth Stiffness Texture
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.CWG-001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram, L/C
Supply Ability :
5000000 pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Ceramic Yarn Roller Guide
Material :
Alumina
Color :
White, pink or ivory
Dimensions :
As the drawing
Finish :
Fine polished
Surface finish :
Polish Ra0.2
Feature :
High hardness; wear/corrosion resistance
Application :
Wire Guide for textile machinery
Shipment :
By air or sea
HS Code :
8145700000
Description

Polished Solid 95% 99% Alumina Ceramic Yarn Roller Guide for Textile machinery

Description of alumina ceramic yarn roller guide

Our ceramic yarn roller guides are as varied as our pulley, both single or multiple grooves are available, also the dimensions can be customized. These ceramic roller guides are made of 96%, 99% or 99.5% aluminum oxide ceramics, call it alumina, with diamond polished running surfaces.

Alumina is a kind of improved technical ceramics, these ceramic yarn rollers promote the winding efficiency a lot in textile machinery because of its low friction, superb wear resistance, anti-static electricity features.

Specification of alumina ceramic yarn roller guide:

1. Raw material: 95% alumina, 99% alumina, zirconium oxide, titania

2. Dimensions: min. diameter can be 10mm, max. diameter can be 50mm

3. Design: single groove, double grooves, or multiple grooves

4. Tolerance: general tolerance ± 1% of the dimensions, or better via a precision process

5. Surface finish: mirror surface, to be Ra0.3 ~ 0.4 for 95% alumina ceramic eye, to be Ra 0.2 ~0.3 for 99% alumina ceramic eye

Features of alumina ceramic yarn roller guide:

1. Exceptional hardness, bending strength, toughness

2. Good insulation, anti-magnetic, free static electricity

3. Corrosion resistance in harsh working conditions

4. Excellent thermal shock resistance and good thermal stability

5. Nox-toxic, healthy material, eco-friendly material

6. Meet with RoHS, REACH regulation completely

Roller Ceramic Wire Guides Well Frictional Behavior Smooth Stiffness Texture

Technical datasheet of typical materials for alumina ceramic yarn roller guide

Property Units 95% alumina 99% alumina 99.5% alumina Zirconia Titania
Color White, pink White, pink, ivory Pink, ivory, white White, Yellow Black, Gray, Yellow
Density g/cm3 ≥3.60 ≥3.80 ≥3.85 ≥6.0 ≥4.0
Water absorption % 0 0 0 0 0
Hardness HV 1500 1700 1700 1300 800
Flexural strength Mpa ≥320 ≥338 ≥379 ≥1200 ≥158
Compressive strength Mpa ≥2000 ≥2240 ≥2240 ≥1990
Fracture toughness Mpa m1/2 3-4 4-5 4-5 6.5-8 3.2
Thermal Expansion Coefficient(20-800℃) 1×10 -6 /℃ 5.0~8.0 6.2~8.0 6.5~8.0 8.0~9.5 8.8
Thermal conductivity W/m.k (25℃) ≥220 ≥200 ≥250 ≥300 ≥330
Max. service temperature ℃ 1500 1600 1675 1000 1000
Insulation strength KV/mm 18 18 19 17 3.93
Dielectric constant (1Mhz) (E) 9.5 9.5 9.7 29 85


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
