Zirconia ZrO2 Ceramic Wire Guides Double Flange Eyelets Two Side Accurate Throw
Zirconia ZrO2 Ceramic Wire Guides Double Flange Eyelets Two Side Accurate Throw
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.CWG-001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram, L/C
Supply Ability :
5000000 pcs per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Ceramic Eyelet Guide
Material :
Zirconium oxide
Color :
White, pink or ivory
Dimensions :
As the drawing
Finish :
Fine polished
Surface finish :
Polish Ra 0.1
Feature :
High hardness; wear/corrosion resistance
Application :
Wire Guide for textile machinery
Shipment :
By air or sea
HS Code :
8145700000
Description

Customized Well Polished Zirconia ZrO2 Double Flange Ceramic Eyelets Wire Guide

Specification of zirconia ceramic eyelet guide:

1. Raw material option: zirconium oxide, 95% alumina, 99% alumina,titania

2. Dimensions: min. diameter can be 2mm, max. diameter can be 50mm

3. Shape: Single flanged, double flanged, slotted, grooved, tubed and so on

4. Tolerance: general tolerance ± 1% of the dimensions, or better via a precision process

5. Surface finish: mirror surface, better than Ra0.1 at working contact surface

Features of zirconia ceramic eyelet guide:

1.Good insulation, anti-magnetic, free static electricity

2.Exceptional hardness, bending strength, toughness

3.Corrosion resistance in harsh working conditions

4.Excellent thermal shock resistance and good thermal stability

5.Nox-toxic, healthy material, eco-friendly material

6. Meet with RoHS, REACH regulation completely

Description of zirconia ceramic eyelet guide:

Zirconia ceramic eyes are extremely versatile parts in wire, thread, cable, fiber passaging applications because the material is very hard, wear-resistant, and chemical resistant, and the working surface can be polished to a smooth finish. Our facility provides ceramic eyes in a wide range of standard sizes and configurations to meet your needs. We also offer custom ceramic eyelets, ceramic eyes designed and manufactured to match your exact requirements, including different materials, special shapes.

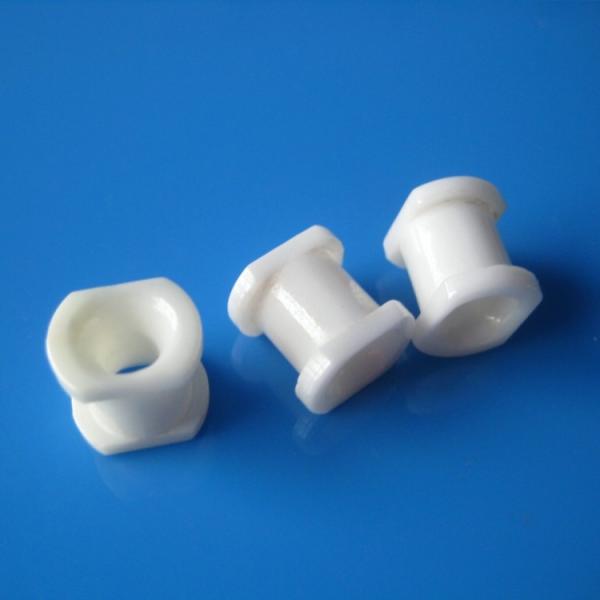

Zirconia ZrO2 Ceramic Wire Guides Double Flange Eyelets Two Side Accurate Throw

Technical datasheet of typical materials for ceramic eyes

Property Units 95% alumina 99% alumina 99.5% alumina Zirconia Titania
Color White, pink White, pink, ivory Pink, ivory, white White, Yellow Black, Gray, Yellow
Density g/cm3 ≥3.60 ≥3.80 ≥3.85 ≥6.0 ≥4.0
Water absorption % 0 0 0 0 0
Hardness HV 1500 1700 1700 1300 800
Flexural strength Mpa ≥320 ≥338 ≥379 ≥1200 ≥158
Compressive strength Mpa ≥2000 ≥2240 ≥2240 ≥1990
Fracture toughness Mpa m1/2 3-4 4-5 4-5 6.5-8 3.2
Thermal Expansion Coefficient(20-800℃) 1×10 -6 /℃ 5.0~8.0 6.2~8.0 6.5~8.0 8.0~9.5 8.8
Thermal conductivity W/m.k (25℃) ≥220 ≥200 ≥250 ≥300 ≥330
Max. service temperature ℃ 1500 1600 1675 1000 1000
Insulation strength KV/mm 18 18 19 17 3.93
Dielectric constant (1Mhz) (E) 9.5 9.5 9.7 29 85


Why choose us?

★10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQ
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
