Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.ACP.013
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
100000 sets per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Alumina ceramic standoff
Material :
Aluminum Oxide Ceramic
Type :
Ceramic Parts
Color :
Ivory
Feature :
High Temperature Resistance, High Insulation
Tolerance :
as design drawing or OEM
Shape :
Customized Designs
Application :
Industrial Ceramic
Description

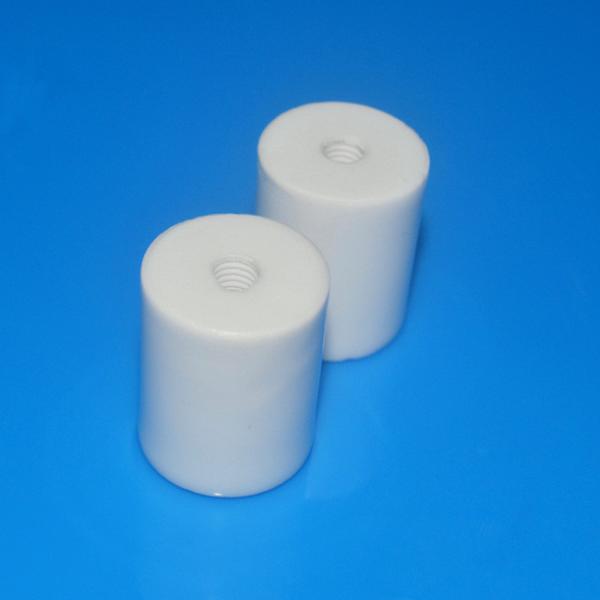

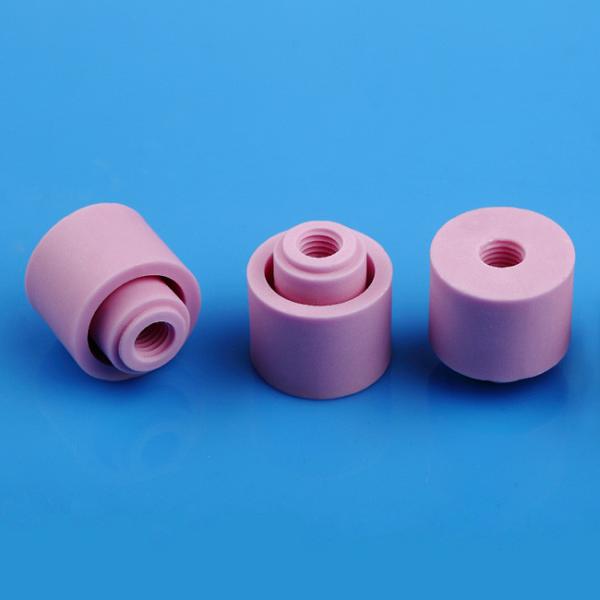

Hot Pressed High Insulation Electrical Alumina Ceramic Standoff

Specification and production capability of alumina ceramic parts

Material alumina, zirconia, steatite optional
Outer diameter 5~20 mm
Length 20~ 100mm
Roughness To be Ra0.1 Roundness To be 0.005mm
Surface treatment Polished, Glazed availability
Cosmetic Smooth surface without no contamination, deformation, and crack

Main characteristics of the alumina ceramic standoff

1. High hardness, it is can be up to 1700 HV, and Super compressive strength up to 2240 Mpa
2. High heat resistance: Alumina ceramic parts offer excellent thermal stability, which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: it is an ideal choice to wear parts in high abrasive industry
4. High electrical resistivity: used in all-electric products, electric heating products, and wear-resistant machinery parts.
5. High corrosion resistance: It is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.
6. We support a variety of customized alumina ceramic parts base on customer's drawing, sample, or reference parameters

Description of alumina ceramic standoff

Our facility manufactures many different sizes of alumina ceramic standoffs. Alumina ceramic standoffs are very stable under high temperatures, as they have outstanding dielectric properties, chemical erosion resistance and high wear and abrasion resistance.
In addition, they have excellent mechanical strength which makes these components last a great deal longer than those made from non-ceramic materials. Our Alumina & Steatite Standoffs are economical and practical.
Outside diameter surfaces can be glazed or unglazed. All Insulators have radii on all corners. Custom sizes can be produced by request.
Besides ceramic standoff, we manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic disc, ceramic rod, ceramic arms, ceramic wire guides. Whatever, its a prototyping case, or high volume demand, we believe we are able to provide you a desirable solution.

Application of alumina ceramic parts:

Alumina ceramic parts are widely used in the electronic, electrical, machinery, chemistry, ceramic seal, mineral, new energy, military, aerospace, almost all modern industries.
Hot Pressed Alumina Ceramic Parts , Ceramic Standoff High Electrical Insulation

Datasheet of technical ceramic materials

Property Units Materials
99.5%Al2O3 99%Al2O3 95%Al2O3 ZrO2 Si3N4
Density g/cm3 ≥3.85 ≥3.80 ≥3.60 ≥6.0 ≥3.2
Water absorption % 0 0 0 0 0
Hardness HV 1700 1700 1500 1300 1550
Flexural strength Mpa ≥379 ≥338 ≥320 ≥1200 ≥600
Compressive strength Mpa ≥2240 ≥2240 ≥2000 ≥1990 ≥2500
Fracture toughness Mpa m1/2 4-5 4-5 3-4 6.5-8 6
Max. service temperature
(Non-loading)
 ℃ 1675 1600 1500 1000 1200
CTE (20-800℃) 1×10 -6 /℃ 6.5~8.0 6.2~8.0 5.0~8.0 8.0~9.5 3.1
Thermal shock T(℃) ≥250 ≥200 ≥220 ≥300 ≤1000
Thermal conductivity(25℃) W/m.k 30 29 24 3 15~20
Volume resistivity (25℃ ) ohm.cm ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 11 ＞1 x 10 12
Insulation strength KV/mm 19 18 18 17
Dielectric constant(1Mhz) (E) 9.7 9.5 9.5 29

Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other, to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

Hot Pressed Alumina Ceramic Parts , Ceramic Standoff High Electrical Insulation


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQs (Frequently Asked Questions)

Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
