Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System
Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.ZRCP.001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
10 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
100000 sets per month
Delivery Time :
5~6 weeks
Packaging Details :
Bags with export carton
Product name :
Zirconia ceramic Seal Ring
Material :
Zirconium Oxide Ceramic
Type :
Advanced Ceramic Parts
Color :
Pure white
Size :
Up to 50 mm x 300 mm
Feature :
High Wear Resistance, High accuracy
Tolerance :
as design drawing or OEM
Shape :
Customized Designs
Surface treatment :
Well-polished
Application :
Industrial Ceramic
Description

Durable YSZ Zirconia ZrO2 Ceramic Valve Seat for For Fluid Regulating System

Zirconia ceramic valve seat is a key part of the various pumps in household appliances, electrical appliances, and industrial applications. It plays a decisive role in liquid, gas, oil sealing and controlling performance.

With zirconium oxide ceramic outstanding properties, such as wear-resistance, chemical resistance, low thermal conductivity, high thermal expansion coefficient similar as stainless steel, very low friction coefficient, zirconia ceramic seal rings have been creating a very positive impact on aging features, service life-span, productivity, dependability in industrial equipment, mechanical engineering, like the food and beverage industry, medical equipment, electrical devices and so on.

Besides the ceramic ball valve, we also produce a variety of customized ceramic ball valve, ceramic seal ring, ceramic valve disc, ceramic piston and plunger for fluid, gas, oil-controlling / regulating system.

Specification of ceramic ball valve:

1. Forming method: Dry pressed, Ceramic injection molding and ISO pressing
2. Material options: aluminum oxide ceramic ( ZrO2), High purity alumina (Al2O3) and Silicon carbide (SiC)
3. Specification: Max. outer diameter can be 150mm, Max. side-length to be 800mm, Max. length can be 1000mm
4. Tolerance: The tolerance of outer diameter can be 0.005mm, inner diameter can be 0.01mm, length can be 0.01mm
5. Other key parameters: flatness to be 0.005mm, roundness to be 0.01mm, concentricity to be 0.01mm
6. Surface finish: the working surface to be diamond polished up to Ra0.1, or better

Prime features of zirconia ceramic ball valve:

1. Perfect sealing performance because of super-low friction coefficient and similar CTE as assembled stainless steel

2. Extraordinary wear resistance and excellent corrosion resistance in various harsh conditions

3. Low wear loss can prevent the material of zirconia from the pollution of the fluid controlling system

4. Extremely long service life with minimum maintenance cost than various metal seal parts

5. High hardness, high flexural strength, high fracture toughness, high mechanical strength

6. Low thermal conductivity: less than 3 W/m.k at ambient temperature, so it's an ideal thermal material

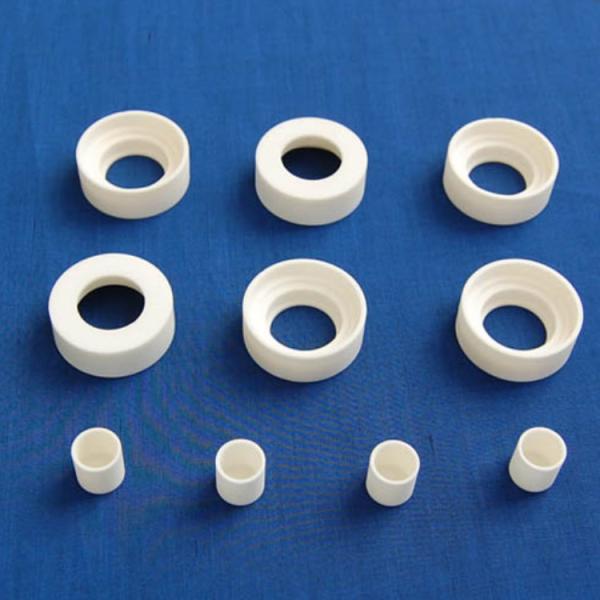

Gallery of zirconia ceramic seals

We produce various zirconia ceramic sealing parts, including ceramic valve seat, ceramic seal ring, ceramic seal cylinder and so on.
Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System


Datasheet of Technical ceramics

Property Units Material
99.5% alumina 99%alumina 95% alumina ZrO2
(Y-TZP)

ZrO2

(TTZ)
Density g/cm3 ≥3.85 ≥3.80 ≥3.60 ≥5.95 ≥5.72
Water absorption % 0 0 0 0 0
Hardness HV 1700 1700 1500 1300 900
Flexural strength Mpa ≥379 ≥338 ≥320 ≥1200 ≥1200
Compressive strength Mpa ≥2240 ≥2240 ≥2000 ≥1990 1750
Fracture toughness Mpa m1/2 4-5 4-5 3-4 6.5-8 11
Max. service
temperature		 ℃ 1675 1600 1450 1000
CTE 1×10 -6 /℃ 6.5~8.0 6.2~8.0 5.0~8.0 8.0~9.5 10.2
Thermal shock T(℃) ≥250 ≥200 ≥220 ≥300 350
Thermal conductivity(25℃) W/m.k 30 29 24 3 3
Volume resistivity ohm.cm
25℃ ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 11 ＞1 x 10 11
300℃ 1 x 10 12 8 x 10 11 10 12 -10 13 1 x 10 10 1 x 10 10
500℃ 5 x 10 10 2 x 10 9 1 x 10 9 1 x 10 6 1 x 10 6
Insulation strength KV/mm 19 18 18 17 20
Dielectric constant(1Mhz) (E) 9.7 9.5 9.5 29 28


Manufacturing flow chart of zirconia ceramic seals

We have in-housing comprehensive manufacturing types of equipment, including forming, sintering, CNC machining,

precision grinding, laser cutting and so on, it helps us to control the quality very well, also it greatly benefits cost control.

Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System

Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other,

to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

Durable YSZ Ceramic Valve Seat ZrO2 Seal Rings For Fluid Regulating System


Why choose us?


★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority


FAQs(Frequently asked questions)


Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
