1-1000mm Length Insulation Rods Low Material Cost Without Contamination Deformation
1-1000mm Length Insulation Rods Low Material Cost Without Contamination Deformation
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.CR.001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
1000 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
100000 sets per month
Delivery Time :
3~4 weeks
Packaging Details :
Plastic bag with export carton
Product name :
Alumina Ceramic Rod
Material :
Alumina Ceramic
Type :
Ceramic rods
Color :
Ivory
Size :
OD is up to 30mm
Feature :
High Temperature Resistance
Tolerance :
as design drawing or OEM
Shape :
Customized Designs
Surface treatment :
Well-polished
Application :
Industrial Ceramic
Description

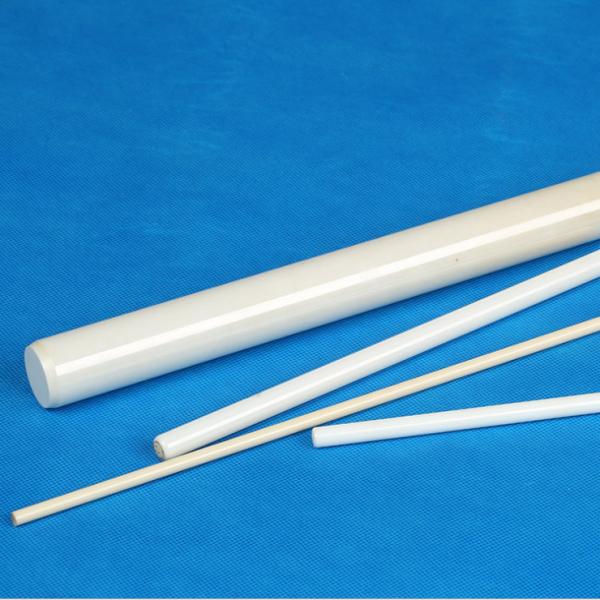

Diamond Polished Wear Resistance Long Al2O3 Alumina Ceramic Rod for Industrial

Prime features of the ceramic alumina rods

1. High precision dimensional tolerance with diamond polished surface quality

2. Great mechanical properties, hardness, compressive and flexural strength are much higher stainless steel

3. Extreme wear and abrasion resistance., over 276 times in comparison with stainless steel

4. Extraordinary electrical insulation, it always us in many high voltage, high-current application

5. Chemical corrosion resistance under high temperature, even if with strong acid or alkali

6. Protective atmospheres or high vacuum at high-temperature to eliminate contamination or impurity.

7. Extreme high-temperature stability under reducing, inert, and high-vacuum conditions under high temperature up to 1800°C.

8. Low material cost in high-level applications than other technical ceramics

Specification and production capability of ceramic alumina rods

Material alumina, zirconia, steatite, silicon carbide optional
Outer diameter 0.30 ~30 mm
Length 1 ~ 1000mm
Roughness To be Ra0.1 Roundness To be 0.005mm
Surface treatment Polished, Glazed, Metalized availability
Cosmetic Smooth surface without no contamination, deformation, and crack

Description of ceramic alumina rods

Alumina solid ceramic rod gets an excellent corrosion resistance, high insulation, exceptional mechanical strength. Long-term sunshine, rainfall, humidity or other weather factors do little effect and damage on the rod surface, not even ultraviolet rays can change the rod surface quality. Meanwhile, the alumina rod has acid and alkali stability, thermal stability, high machining strength, and hardness. These advantages make sure that the alumina rod is competent in severe operating conditions.
Our company supplies a great of dense alumina rod made of high purity material, of what the performance and parameter reach to the international level, we also supply polishing and glazing treatment on the rod surface, which make rods smooth and enhance its performance in the application.

Standard ceramic rods with ready-made mold

S/N Diameter (mm) Material Length (mm) S/N Diameter (mm) Material Length (mm)
1 0.4

99%, 99.5%

alumina

 ≤1000 12 6

95%

99%

99.5%

alumina

≤2500
2 0.5 ≤1000 13 7 ≤2500
3 0.6 ≤1000 14 8 ≤2500
4 0.7 ≤1000 15 9 ≤2500
5 0.8 ≤1000 16 10 ≤2500
6 0.9 ≤1000 17 12 ≤2500
7 1 ≤1000 18 15 ≤2500
8 2

95%, 99%

99.5% alumina

 ≤2500 19 18 ≤2500
9 3 ≤2500 20 20 ≤2500
10 4 ≤2500 21 25 ≤2500
11 5 ≤2500 22 30 ≤2500
Remark:
1. Different diameter and length will be with different tolerance
2. All long ceramic rods can be cut per customized length
3. Other ceramic solid rods with different diameter are available


Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other, to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

1-1000mm Length Insulation Rods Low Material Cost Without Contamination Deformation


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority

FAQs (Frequently Asked Questions)

Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.


Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.


Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours


Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.


Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.


Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.


Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
