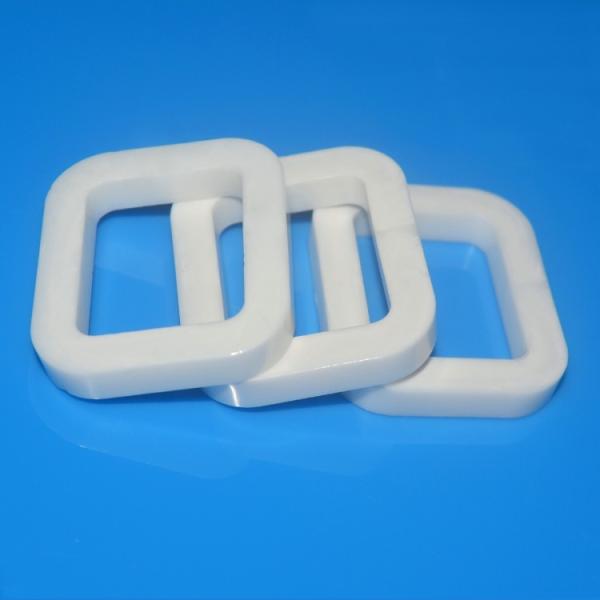

Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP
Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP
Specifications
Brand Name :
Jinghui Ceramics
Model Number :
JH.ZRCP.001
Certification :
RoHS, REACH, ISO
Place of Origin :
China
MOQ :
100 piece per order
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, , L/C
Supply Ability :
100000 sets per month
Delivery Time :
5~6 weeks
Packaging Details :
Bags with export carton
Product name :
Zirconia Ceramic Fixture
Material :
Zirconium Oxide Ceramic
Type :
Advanced Ceramic Parts
Color :
Pure white
Size :
Up to 10 mm x 100 mm
Feature :
High accuracy, Low Thermal Conductivity
Tolerance :
as design drawing or OEM
Shape :
Customized Designs
Surface treatment :
Diamond-polished
Application :
Industrial Ceramic
Description

Dry Pressed Wearable Thermal Insulation 3Y - TZP Zirconia ZrO2 Ceramic Fixture

Prime features of zirconia ceramic fixture:

1. Can withstand higher temperatures up to 2400°

2. Higher density than most of technical ceramics, over than 6 g/cm3

3. High hardness, over than 1300 MPa for Vicker

4. Low thermal conductivity, less than 3 W/m.k at room temperature

5. Similar coefficient of thermal expansion as stainless steel

6. Excellent wear resistance, over 276 times than stainless steel

7. Exceptional fracture toughness reaches up to 8 Mpa m1/2

8. Chemical inertness, aging resistance and not rust forever

9. Resistance to molten metals due to an extraordinary melting point

Specification of ceramic fixture:

1. Material options: YSZ zirconia, TTZ zirconia, 99~99.7% alumina, Silicon carbide (SiC)
2. Forming method: Dry pressed, Hot pressed, Ceramic injection molding and so on
3. Type of ceramic fixture: Ceramic bracket, Ceramic holder, Ceramic support, Ceramic base
4. Specification: Available outer from 1mm to 50mm, available length from 10mm to 500mm
5. Tolerance: Diameter with tolerance 0.001mm, length with a tolerance of 0.01mm

Description of zirconia ceramic fixture:

Zirconium oxide (Zirconia) offers low thermal conductivity, superb wear resistance, excellent fracture toughness, outstanding low friction coefficient, exceptional resistant strong acid & alkali, and great high-temperature resistance, strong hardness, electrical insulation, these make zirconia ceramic as a very important technical raw material of structural parts used in various machinery, electrical, electronic, engineering fields.

With high fracture toughness to resistant crack, it's an ideal machinable advanced ceramics. Our facility is capable of machining a variety of complicated ceramic parts with a very high accuracy dimension through fine grinding, lapping, CNC machining, laser cutting and so on.

These zirconia structural ceramics are widely used to wear ceramic fixtures, the ceramic plunger in fluid metering, ceramic valve seat in the pump, ceramic shaft/bearing, ceramic wire guides in the textile machinery industry.

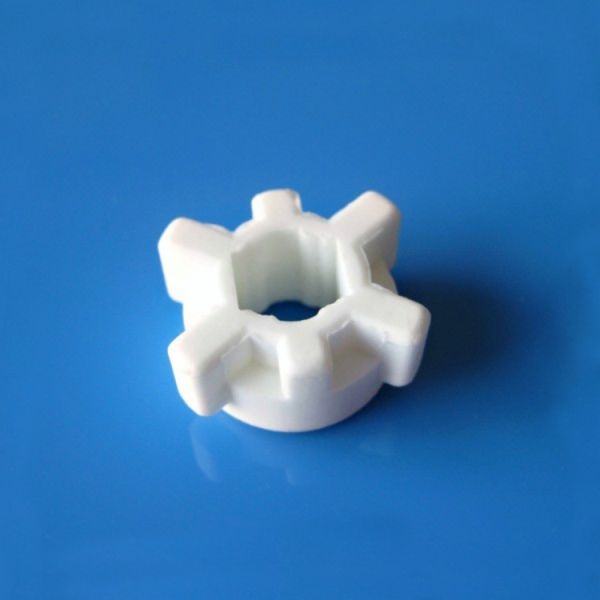

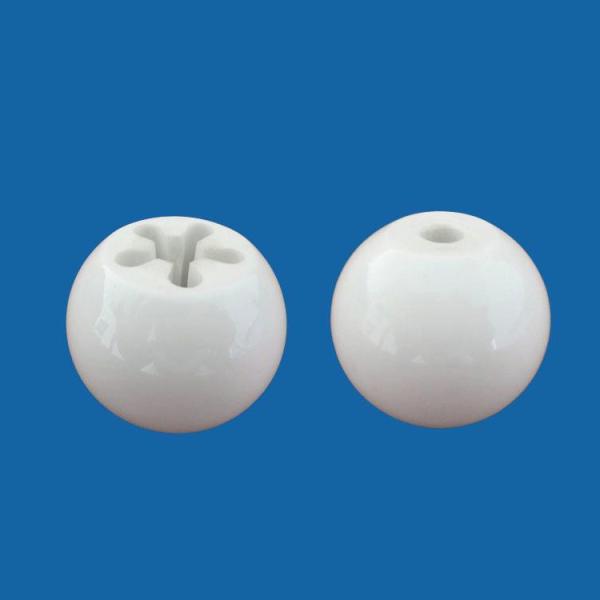

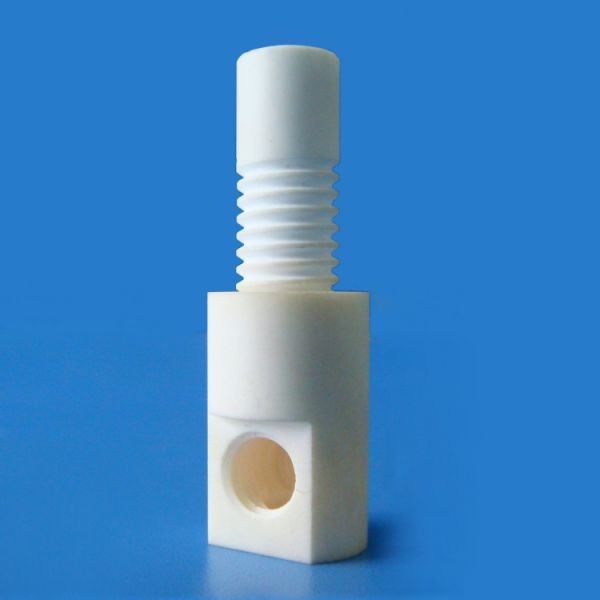

Gallery of zirconia ceramic fixture

We produce various zirconia ceramic fixtures in different materials with a special design.

Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP



Datasheet of Technical ceramics

Property Units Material
99.5% alumina 99%alumina 95% alumina ZrO2
(Y-TZP)

ZrO2

(TTZ)
Density g/cm3 ≥3.85 ≥3.80 ≥3.60 ≥5.95 ≥5.72
Water absorption % 0 0 0 0 0
Hardness HV 1700 1700 1500 1300 900
Flexural strength Mpa ≥379 ≥338 ≥320 ≥1200 ≥1200
Compressive strength Mpa ≥2240 ≥2240 ≥2000 ≥1990 1750
Fracture toughness Mpa m1/2 4-5 4-5 3-4 6.5-8 11
Max. service
temperature		 ℃ 1675 1600 1450 1000
CTE 1×10 -6 /℃ 6.5~8.0 6.2~8.0 5.0~8.0 8.0~9.5 10.2
Thermal shock T(℃) ≥250 ≥200 ≥220 ≥300 350
Thermal conductivity(25℃) W/m.k 30 29 24 3 3
Volume resistivity ohm.cm
25℃ ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 14 ＞1 x 10 11 ＞1 x 10 11
300℃ 1 x 10 12 8 x 10 11 10 12 -10 13 1 x 10 10 1 x 10 10
500℃ 5 x 10 10 2 x 10 9 1 x 10 9 1 x 10 6 1 x 10 6
Insulation strength KV/mm 19 18 18 17 20
Dielectric constant(1Mhz) (E) 9.7 9.5 9.5 29 28


Manufacturing flow chart of technical ceramic parts

We have in-housing comprehensive manufacturing types of equipment, including forming, sintering, CNC machining,

precision grinding, laser cutting and so on, it helps us to control the quality very well, also it greatly benefits cost control.

Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP

Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other,

to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

Thermal Insulation Zirconia Ceramic Parts , Zro2 Ceramic Fixture Anti Aging 3Y - TZP


Why choose us?


★ 10+ Years of manufacturing experience in OEM, ODM ★ Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★ Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★ Abide all orders as the first priority


FAQs(Frequently asked questions)


Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
