Gas Burner Ceramic Alumina Plate , Porous Ceramic Plate For Industrial Thermal Equipment

Specifications

Brand Name :

Jinghui Ceramics

Certification :

RoHS, REACH, ISO

Place of Origin :

Hunan, China

MOQ :

1000 piece per order

Price :

Negotiable

Payment Terms :

T/T, Western Union, Paypal, MoneyGram, L/C

Supply Ability :

500000 Piece/Pieces per Month

Delivery Time :

3~4 weeks

Packaging Details :

Export carton with wooden case

Product name :

Honeycomb Ceramic Cordierite Plate

Material :

Cordierite

Color :

White

Type :

Ceramic Plates

Shape :

rectangular,Round,Square

Size :

Customers' Requests

Features :

30~60% energy saved

Application :

Gas grill, Gas burner

Description

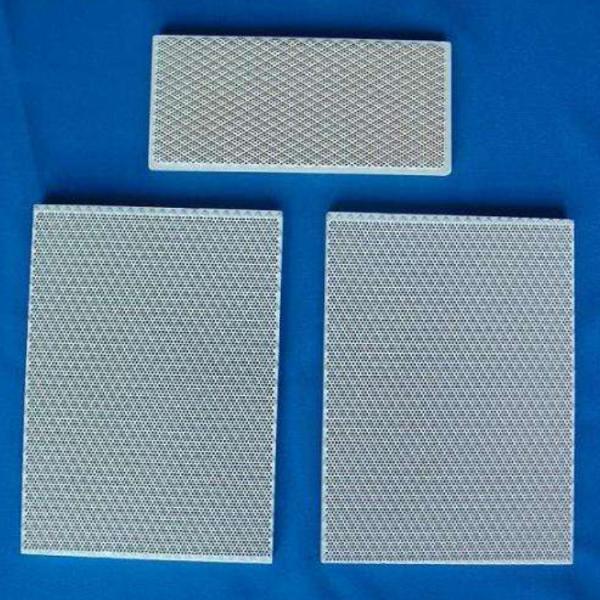

Porous Infrared Honeycomb Ceramic Cordierite Plate for Gas Burner

Name: Gas Burner Ceramic Alumina Plate Porous Ceramic Plate For Industrial Thermal Equipment
Brand: Jinghui Ceramics
Price: 1 USD

Description of honeycomb ceramic cordierite plate:

Honeycomb ceramic cordierite plates are widely used in energy-saving technologies for industrial thermal equipment. This kind of technical ceramic plate has been proven to making industrial thermal equipment more efficient, reducing energy consumption, increasing production and so on. It is an important and effective means to solve energy and environmental problems. The cross-section holes of the honeycomb ceramic plate mainly have two kinds of hole structures of a square shape and a regular hexagon shape, and the holes are straight channel structures parallel to each other. This structure greatly reduces the resistance of the pores flowing through and greatly improves the single-pore volume heat exchange efficiency of the regenerator.

If the ceramic plate coated with a black catalyst, the honeycomb ceramics can transfer the heat by infrared radiation style and this combustion style has more outstanding advantages comparing to the normal gas-fired stove combustion.

Specification of honeycomb ceramic cordierite plate:

1. Material: cordierite, alumina optional 2. Color: white, black, brown, blue optional available

3. Dimensions: Individual custom size, it can cut to the size per customers' needs.

4. Shape: Rectangle, square, round or customized shape available

5. Surface pattern: diamond, prismatic and quincunx available

6. Working temperature: max. to 1280℃ 7. Aperture ratio: 61%

8. CO release: less than 0.006R 9. NOx release: less than 5ppm

Stock items checklist with standard dimensions:

Rectangular shape
Model#	Length(mm)	Width(mm)	Thickness(mm)
JH205155	205	155	13
JH200150	200	150	13
JH200145	200	145	13
JH188138	188	138	13
JH185064	185	64	13
JH183060	183	60	13
JH162060	162	60	13
JH147075	147	75	13
JH147060	147	60	13
JH146075	146	75	13
JH137060	137	60	13
JH136095	136	95	13
JH135095	135	95	13
JH130075	130	75	13
Remark: Support customized size according to customers' drawings.

Round shape
Model#	Diameter(mm)	Thickness(mm)
JHD238	φ238	13
JHD200	φ200	13
JHD180	φ180	13
JHD170	φ170	13
JHD168	φ168	13
JHD160	φ160	13
JHD158	φ158	13
JHD150	φ150	13
JHD059	φ59.5	Product tags ceramic burner plate , ceramic gas burners , ceramic gas burner Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Gas Burner Ceramic Alumina Plate , Porous Ceramic Plate For Industrial Thermal Equipment Ask Latest Price Product Detail Brand Name : Jinghui Ceramics Certification : RoHS, REACH, ISO Place of Origin : Hunan, China MOQ : 1000 piece per order Price : Negotiable Payment Terms : T/T, Western Union, Paypal, MoneyGram, L/C Contact Supplier Jinghui Industry Limited Active Member 6 Years guangdong, shenzhen Since 2005 Business Type : Manufacturer Main Products : Ceramic Alumina Tube, Ceramic Alumina Plate, Ceramic Rod Total Annual : 6000000-7000000 Employee Number : 180~200 Certification Level : Active Member Discover similar products Energy Saving Infrared Honeycomb Ceramic Burner Plate Lightweight Low Thermal Contact Now Moderate Thermal Conductivit Ceramic Alumina Plate Board , Alumina Ceramic Liner Contact Now Aluminum Oxide Metalized Ceramic Substrates High Purity Multi - Functional Contact Now Machinable Ceramic Alumina Plate Components High Electrical Insulation Contact Now Laser Cutting Ceramic Heater Plate , Alumina Based Ceramics Ultrahard Contact Now Thin Alumina Ceramic Sheet Advanced Materials 300x400mm Dimensional Stable Contact Now High Voltage Metal Ceramic Heater Plate , Ceramic Substrates OEM ODM Service Contact Now Uniform Coating Al2O3 Ceramic Alumina Plate Lining Tile Stable Breaking Strength Contact Now Temprature Insulation 96% Aluminum Oxide Ceramic Sheet Contact Now $Refractory Machinable Ceramic Alumina Plate 99.5% Custom Industrial Grade$ Refractory Machinable Ceramic Alumina Plate 99.5% Custom Industrial Grade Contact Now View More Find Similar Products By Category: Supplier Homepage Products Ceramic Alumina Plate MachineU China Products Chemicals Inorganic Chemicals Non-Metallic Products Ceramics Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.
