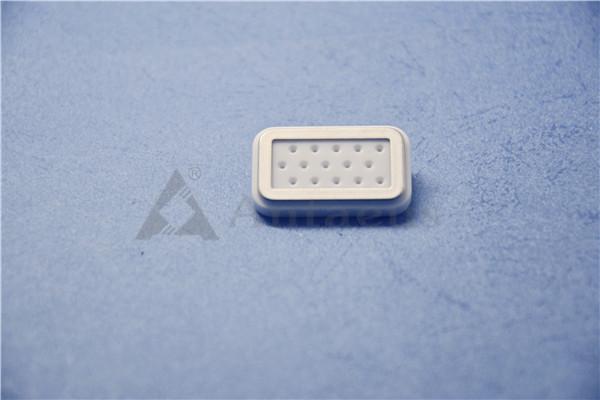

Ivory Electrical Alumina Ceramic Insulator Battery component Impact resistant

Specifications

Brand Name :

Antaeus

Model Number :

AD-I009

Certification :

Place of Origin :

Hunan,China

MOQ :

Negotiation

Price :

Negotiation

Payment Terms :

T/T or Negotiation

Supply Ability :

Full Supply

Delivery Time :

15-45 days

Packaging Details :

Inner vacuum packaging, outside carton.

Chemical ingredients :

Al2O3

Max. Use Temp. :

1650℃

Bulk Density :

3.6g/cm3-3.9g/cm3

Water absorption :

ROHS Hardness :

≥85

Flexural strength :

358(52) - 550 Mpa(psix10^3)

Compressive Strength :

2068(300) - 2600(377) Mpa(psix10^3)

Coefficient of thermal expansion :

7.6 - 8.2 / 1X10^-6/℃

Coefficient of thermal conductivity :

16-30.4 / W/m.K

Thermal Shock Resistance :

250℃

Dielectricity constant :

9-9.7 / 1MHz.25℃

Dielectric strength :

8.3(210) - 8.7(220) / ac-kV/mm(ac V/mil)

Volume Resistivity :

>10^13 ohm-cm

Description

Alumina Ceramic Insulator /Electrical Insulation Rod For Oxygen Sensor

1. Description:

Typically used in ovens and furnaces, these are the most efficient of our rigid high-temperature insulation sheets. Please note that they require special care when installing since the crumbly material is difficult to work with and will crack easily. Sheets lose strength over time and are intended to be installed behind another facing or insulation material. They are flame resistant, meeting ASTM E84 0/0 for flame and smoke. Insulation performs best at temperatures above 1000° F.

2. Feature Advantages:

1) High compressive strength.

2) Good advanced ceramic materials

3) High welding sealing performance

4) Good wear resistance

5) Stiffness texture

6) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating

3. Material Features / Properties:

Composite	(wt %)	99%	99.5%	99.8%
Color		White or Ivory	White or Ivory	White or Ivory
Density	g/cm 3	3.82	3.9	3.92
Hardness	HRA	83	85	85
Flexural Strength	Mpa (psi*10 3 )	375	386	381

4. Technical Parameters:

Technical Parameters of Ceramics
Items	Test Conditions	Unit or Symbol	99% AL2O3	95% AL2O3	90% AL2O3	Zirconia	Steatite	Silicon Carbide
Volume Density	--	g/cm3	≥3.70	≥3.62	≥3.40	≥5.90	≥2.60	≥3.08
Tightness	--	Pa·m³/s	≤1.0×10-11	≤1.0×10-11	≤1.0×10-11	-	-	-
Liquid Permeability	--	--	Pass	Pass	Pass		Pass	-
Flexural Strength	-	MPa	≥300	≥280	≥230	≥1100	≥120	≥400
Elastic Modulus	-	GPa	-	≥280	≥250	≥220	-	400
Poisson Ratio	-	-	-	0.20～0.25	0.20～0.25	-	-	-
Thermal Shock Resistance	800℃( Room Temperature) Cycle: 10 times		Pass	Pass	Pass	-	-	-
Coefficient of Linear Expansion	20℃～100℃	×10-6 K-1	-	-	-		≤8	-
	20℃～500℃	×10-6 K-1	6.5～7.5	6.5～7.5	6.5～7.5	6.5～11.2	-	-
	20℃～800℃	×10-6 K-1	6.5～8.0	6.5～8.0	6.3～7.3		-	4
	20℃～1200℃	×10-6 K-1	-	7.0～8.5	-	-	-	-
Coefficient of Thermal Conductivity	20℃	W/(m·k)	-	-	-	-	-	90～110
Coefficient of Thermal Conductivity	1000℃	W/(m·k)	-	-	-	-	-	90～110
Dielectric Constant	1MHz 20℃	-	9.0～10.5	9.0～10	9.0～10	-	≤7.5	-
	1MHz 50℃	-	-	9.0～10	-	-	-	-
	10GHz 20℃	-	9.0～10.5	9.0～10	9.0～10	-	-	-
Volume Resistivity	100℃	Ω·cm	≥1.0×1013	≥1.0×1013	≥1.0×1013	-	≥1.0×1012	-
	300℃		≥1.0×1013	≥1.0×1010	≥1.0×1013	-	-	-
	500℃		≥1.0×109	≥1.0×108	--	-	-	-
Disruptive Strength	D.C	kV/mm	≥17	≥15	≥15	-	≥20	-
Chemical Durability	1:9HCl	mg/c㎡	≤0.7	≤7.0	-	-	-	-
Chemical Durability	10%NaOH	mg/c㎡	≤0.1	≤0.2	-	--	-	-
Grain Size	-	μm	-	3~12	-	-	-	-

5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing
