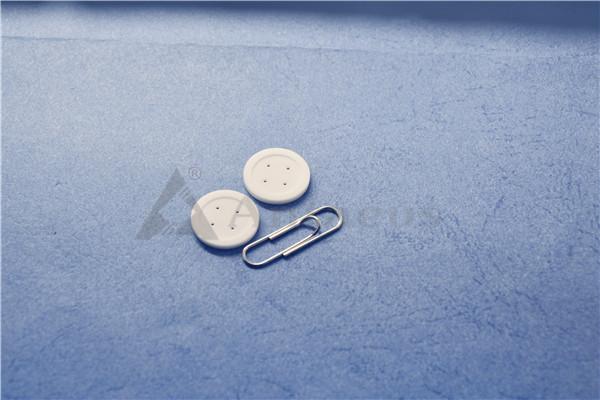

4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic
4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic
Specifications
Brand Name :
Antaeus
Model Number :
AD-S015
Certification :
/
Place of Origin :
Hunan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or Negotiation
Supply Ability :
Full Supply
Delivery Time :
15-45 days
Packaging Details :
Inner vacuum packaging, outside carton.
Product Name :
Pressure Sensor Ceramic
Material :
96% aluminum oxide
Density :
4.1g/cm3-5.9g/cm3
High Light :
Pressure Sensor Cramic / Film Ceramic Sensor / Ceramic Pressure Sensor
Thickness :
0.25mm-6mm
Working Temperature :
-40°C - 60°C
Application :
Alumina Ceramic Substrate for Pressure Sensor
Working Voltage :
2-20V
Repeatability :
<±6.6%(50% of the load )
Sensitivity :
1.5—4mv/V， typical value 2.5±1.0mv/V
Description

Film Alumina Capacitive Pressure Sensor Ceramic / Ceramic Sensor Substrate

1. Description:

Units with wire strain gauge in thick-film technology on a stainless steel measuring cell are distinguished by their very compact and robust design. They can be used in almost all industrial areas. The welded stainless steel measuring cell without any seals ensures a high degree of safety, in particular for applications with gas pressures of up to 600 bar as well as in air-conditioning and refrigerating technology where aggressive coolants (freons) are used.

2. Feature Advantages:

1) High elasticity modulus

2) High compressive strength.

3) Anti corrosion

4) Abrasion resistance

5) Impact resistance

6) High precision

7) High stability

8) Good advanced ceramic materials

9) High welding sealing performance

10) High hardness and high density

11) Low thermal conductivity

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance

16) High temperature resistance

17) A variety of specifications is available

18) Satisfy various technical requests

3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381

4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - - ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3 - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -

5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing

4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic

6. Application Fields:

Ceramic Pressure Sensor is widely used in process control, environmental control, hydraulic and pneumatic equipment, servo valves and transmission, chemical and chemical industry and medical instruments and many other fields.

4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic

7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic

8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

4.1-5.9g/Cm3 Pressure Sensor Ceramic Substrate AL2O3 Machining Alumina Ceramic

9. Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
