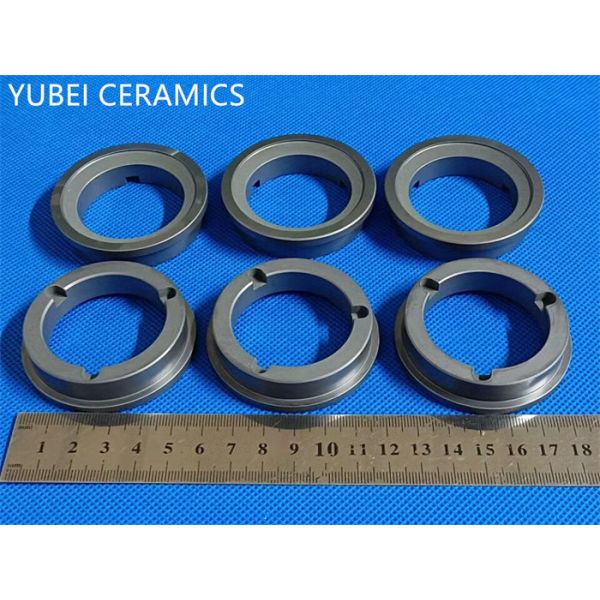

Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Sintered Silicon Carbide Seal Rings 3.12g/cm3 Wear Resistance O Ring Sealing Ring
Specifications
Brand Name :
YUBEI
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
30 days
Packaging Details :
cartons
Product Name :
silicon carbide seal ring
Material :
SSiC
Thermal conductivity :
100-120W/mK
Sic percentage :
98%
Density :
3.12g/cm3
Hardness :
92-94HRA
Description

Manufacture Sintered Silicon Carbide Sealing Ring Ceramic Staitionary Rings

As one of the lightest and at the same time hardest ceramic materials, silicon carbide shows its advantages wherever high corrosion and wear resistance is required and materials of safety-relevant components must not fatigue prematurely.

Silicon carbide differs depending on the manufacturing method and is therefore suitable for various applications. Depending on your requirements, we use reaction-bonded sic, sintered sic to manufacture your components.

Technical parameters of SSIC:

Items Unit SSIC
Volume density g/cm3 ≥3.10
Hardness HRA ≥92
Compressive strength MPa ≥2200
Flexural strength MPa ≥400
Silicon carbide content % ≥98
Modulus of elasticity GPa 400
Thermal conductivity W/mK 100-120
Max working temperature ℃ 1600
Coefficient of thermal expansion 1.10-6m/k 4.0


Technical parameters of RBSIC:

Items Unit RBSIC
Volume density g/cm3 ≥3.03
Hardness HRA ≥90
Compressive strength MPa ≥2000
Flexural strength MPa ≥350
Free silicon content % ≤12
Modulus of elasticity GPa 350
Thermal conductivity W/mK 50-100
Max working temperature ℃ 1100


FAQ:

1. Are you a factory?

Yes, we're a factory professinally producing industrial ceramics. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.

2. What's the size of it?

Products are always customized according to drawings or samples. Diameter within 400mm are available.

3. What's the price for it?

It depends. Prices are caculated by the drawing size and structure.

4. What's the production process?

Our products are made mainly in cold isostatic pressing, dry pressing.

5. How about the delivery?

Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 3-15 days is ok.

7. Can you do the finish maching?

Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
