3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
3C Products B20 Sandblasting Ceramic Cleaning Media
Specifications
Brand Name :
Zhengtong
Model Number :
B20-B505
Place of Origin :
Zhengzhou
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200mts per month
Delivery Time :
3-5 days after order confirmed

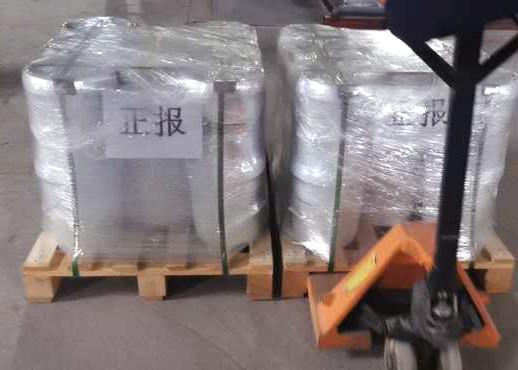

Packaging Details :
2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet
Commodity :
Ceramic Blasting Beads
Product Name :
Ceramic Blasting Media
Usage :
Surface finish for 3C products
Bulk Density :
2.3 g/cm3
True Gravity :
3.85 g/cm3
Vicker Hardness :
700 HV
Main Material :
60-66% ZrO2
Shape :
Solid Round Ball
Certification :
N/A
Description

3C Products B20 Sandblasting Ceramic Cleaning Media

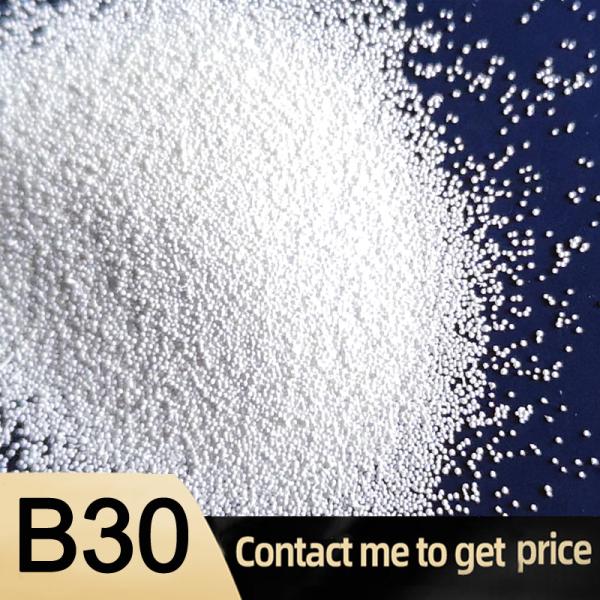

DESCRIPTION OF CERAMIC BEADS BLASTING MEDIA

The ceramic beads is zirconium based ceramic blasting media, made through electro fusion., then made to multiple sizes micro beads from B20 to B505.

The ceramic beads is used for surface treatments like sandblast cleaning, deburring, pretreatment before coating and precise surface treatment .

It has concentrated grain sizes to obtain uniformity.

Technical Data
Components Content CAS No. EC No.
ZrO2 (Zirconium dioxide) 60-68% 1314-23-4 215-227-2
SiO2 (Silicon dioxide) 25-30 60676-86-0 262-373-8
Al2O3 (Aluminum oxide ) 7-13% 1344-28-1 215-691-6
Manufacturing Method Melting in above 2000℃ furnace
True Density 3.85 g/cm3
Bulk Density 2.3g/cm3
Vicker Hardness 700HV
Sizes for Sand Blasting
Bead Size Size range Bead Size Size range
B20 0.60-0.85 mm B120 0.063-0.125 mm
B30 0.425-0.60 mm B125 0.000-0.125 mm
B40 0.24-0.425 mm B170 0.045-0.090 mm
B60 0.125-0.25 mm B205 0.000-0.063 mm
B80 0.18-0.25 mm B400 0.030-0.063 mm
B100 0.125-0.18 mm B505 0.000-0.030 mm
Sizes for Shot Peening
Z850 0.85-1.18 mm Z210 0.21-0.30 mm
Z600 0.6-0.85 mm Z150 0.15-0.21 mm
Z425 0.425-0.60 mm Z100 0.10-0.15 mm
Z300 0.30-0.425 mm 　 　

3C Products B20 Sandblasting Ceramic Cleaning Media

FEATURES OF CERAMIC BEADS BLASTING MEDIA

1. High impact resistance and round beads, not easy to be broken. The broken rate of ceramic beads is around 1%.

2. Low dust generation, friendly to the environment and worker’s health.

3. Matte Metallic luster, no polishing reflective.

4. No metal pollution.

APPLICATION OF CERAMIC BEADS BLASTING MEDIA

· 1. Sandblast cleaning for metal tools

2. Descaling and deburring

3. Alu alloy and Stainless steel surface satin finishing

4. Painting/ coating stripping and pre treatment before coating

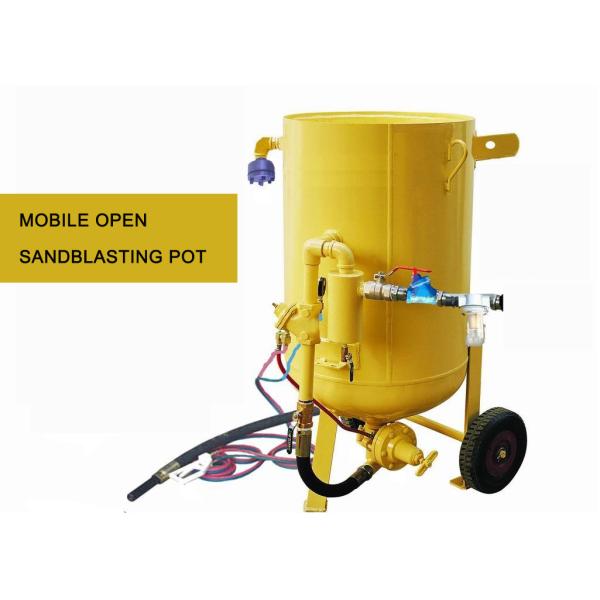

The ceramic beads is applicable to use in the mobile open sandblasting machine.

3C Products B20 Sandblasting Ceramic Cleaning Media

CONTACT US

3C Products B20 Sandblasting Ceramic Cleaning Media

Beside ceramic media, we can also supply sandblasting accessories like blasting hoses and B4C nozzles, multiple sizes available.

Contact us to get ceramic media and accessories in one site.
