High Strength 95 Zirconia Grinding Media Ceramic Beads for Making construction ceramics

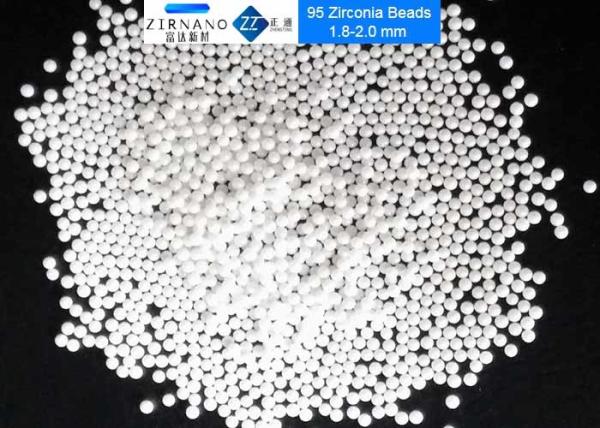

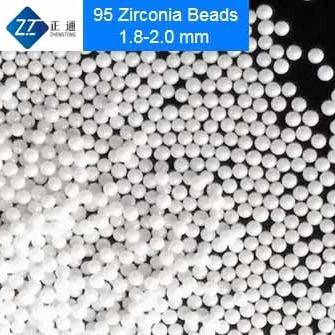

1. Description of 95 Zirconia Grinding Media Ceramic Beads

Zirconia Beads is also named as 95% zirconia beads,Yttrium stablized beads.

It is selected the mircon or sub-nanometer zirconia powder as raw material,sintered by medium-high

temperture.It cotains about 95% zirconia, so it is also called as the 95 zirconia

It is the most durable grinding media compared with the alumina ball and zirconia silicate beads.

2. Main Technical Index of 95 Zirconia Grinding Media Ceramic Beads

• Typical Chemical Index

ZrO2 ≥95%

Y2O3 ≥4.5%

Others ≤0.5%

Sintering process

• Physical Index of Zirconia Beads:

True Gravity ≥6.0g/cm3

Bulk Density ≥3.7g/cm3

Vicker Hardness ≥1100 HV

Compressive strength ≥2.0KN Φ2mm

• Specifications:

Φ0.1-0.2mm, Φ0.2-0.3mm, Φ0.3-0.4mm

Φ0.4-0.6mm, Φ0.6-0.8mm, Φ0.8-1.0mm

Φ1.6-1.8mm, Φ1.8-2.0mm, Φ2.0-2.2mm

Φ2.2-2.4mm, Φ2.4-2.6mm Φ,2.6-2.8mm

Φ4mm, Φ5mm, Φ6mm, Φ7mm, Φ8mm,

Φ9mm,Φ10mm,Φ12mm,Φ15mm,Φ17mm,

Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,

Φ50mm etc.

3. Main Features of 95 Zirconia Grinding Media Ceramic Beads

• Higher hardness and Density
• Better wear resistance
• Higher Mechanical Strength
• Lower Abrasion loss
• Anti-acid alkali
• Higher thermal expansion rate
• Zero contamination to the treatment

4. Main Application of 95 Zirconia Grinding Media Ceramic Beads

• Grinding and dispersion for metallic minerals such as copper, silver, nickel, gold, Zinc etc.
• Grinding and dispersion for non-metallic minerals such as Calcium Carbonate, kaolin clay, titanium dioxide etc.
• Grinding and dispersion for pigments, coatings, paints, inks, dyes,cosmetic,medicine etc.
• Grinding and dispersion for magnetic materials,battery materials,electronic ceramic slurry.
• Making construction ceramics, refractory materials etc.

5. Products Package of 95 Zirconia Grinding Media Ceramic Beads

25kg drum+pallet,special packages can be customized.

6. FAQ

Q: What is the size in your products?

A: Our common size is 0.1mm-50mm. Special specification can be customized

Q: What is your terms of delivery?
A: FOB, CFR, CIF,DDU,FCA etc.

Q: Are you able to accept small quantity sample order before Formal Production?

A: Yes, of course.

Q: How long the goods will be prepared well after order placed?

A: Goods will be ready well 3-14 days after receiving the payment, it depends on the order

quantity and goods specifications.
