700HV Hardness Ceramic Bead Blasting Steel Shot 3.85g/Cm3 Density
700HV Hardness Ceramic Bead Blasting Steel Shot 3.85g/Cm3 Density
700HV Hardness Ceramic Bead Blasting Steel Shot 3.85g/Cm3 Density
700HV Hardness Ceramic Bead Blasting Steel Shot 3.85g/Cm3 Density
Specifications
Brand Name :
Zirnano
Model Number :
B20-B505
Certification :
ISO9001, ISO14001
Place of Origin :
Shanxi, China
MOQ :
100KGS
Price :
Negotiation
Supply Ability :
1500mt per year
Delivery Time :
5-10 days
Packaging Details :

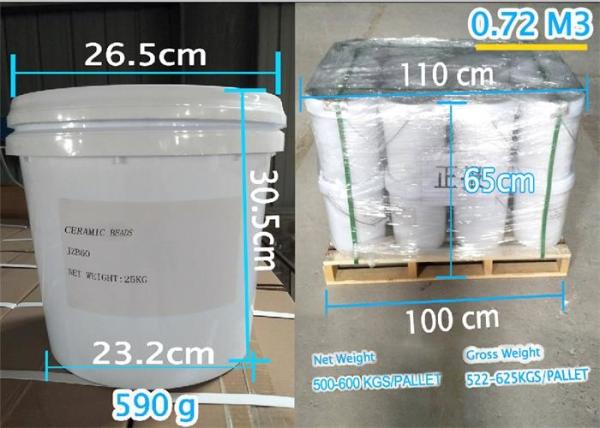

12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Commodity Name :
Ceramic beads blasting media
Chemical Index :
ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing process :
Melting method
Bulk Density :
2.3g.cm3
True Density :
3.85g/cm3
Hardness :
700HV
Package :
25kgs paper cartons or 25kgs barrels +pallet
Description

Blasting media Difference of Glass beads, Ceramic beads and steel shot in sandblasting

DESCRIPTION

Ceramic blasting media is also called Ceramic beads, ZrO2 60-66%, Bulk Density 2.3g/cm3,

Ceramic beads is of high impact properties coupled with good hardness, and is an ideal sandblasting media.

Ceramic sand is of wide range of sizes from B20-B505.

It is mainly used for surface treatment of aluminum alloy zinc alloy magnesium alloy die castings, etc.

SPECIFICATION

Manufacturing process: Melting method

ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%

Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV

Grit size B20 B30 B40 B60 B80 B100 B120
Microns μm 600-850 425-600 250-425 125-250 180-250 125-180 63-125
Grit size B125 B170 B205 B400 B505

Special sizes

can be customized
Microns μm 0-125 45-90 0-63 30-63 0-63
Grit size Z850 Z600 Z425 Z300 Z210 Z150 Z100
Microns 850-1180 600-850 425-600 300-425 210-300 150-210 100-150

FEATURES

1. The density of the ceramicbeads is between glass beads and steel shot, and with high hardness, can be used to fill the upper and lower limit of the strength of glass beads and steel shot.

2. The ceramic beads is light, but its hardness is high, which is very suitable for the strengthening and forming of metal blasting sand such as titanium alloy, aluminum alloy and high temperature alloy.

3. Ceramic beads is not deformed in the process of circulation and wear low, which can ensure the consistency of the surface sandblasting effect during mass production.

4. Ceramic beads is spherical and has smooth surface and low loss of equipment.

5. Ceramic beads has a wider range of particle size and can be used in matching with various types of sandblasting machines to meet more application requirements.

APPLICATION

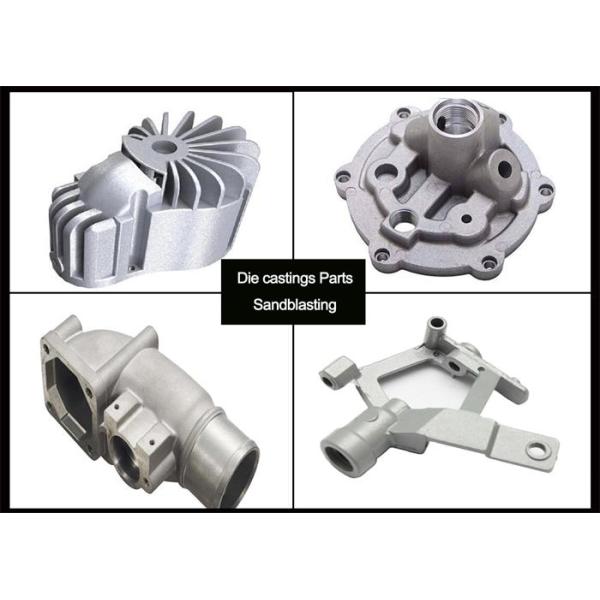

Sandblasting for die-casting parts cleaning and pre-treatment.

Sandblasting is a relatively thorough and efficient cleaning method and can be arbitrarily selected between different roughness.

700HV Hardness Ceramic Bead Blasting Steel Shot 3.85g/Cm3 Density

APPLICABLE EQUIPMENT

Dry sandblasting machine and Wet sandblasting machine

CONTACT US

No matter you’re the end users, blasting service suppliers, sandblasting equipment dealers or ceramic blasting media and other blasting abrasive distributors, welcome to contact us. More details of ceramic blasting beads, updated prices and samples will be available.

Caroline Cui

Zhengzhou Zhengtong Abrasive Imp.&Exp. Co., Ltd

Address: Ximazhuang, Liuzhai Town, Xinmi City, Henan, China

Tel.:+371 86592608
Mob.: +86 15003865330
Email: caroline@zzztabrasive.com
