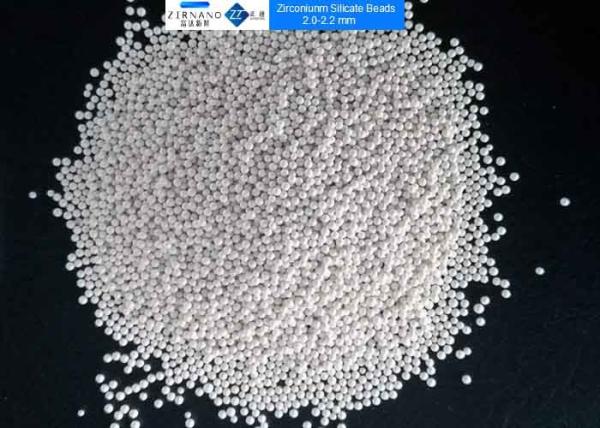

High Wear Resistance Zirconium Silicate Beads 65 Zirconia Ceramic Grinding Media for Ink
1. Product Description of Zirconium Silicate Beads 65 Zirconia
Zirconia Silicate Beads is one kind of Zirconia Beads,its main chemical composition is at least
65% ZrO2,then it is also called as 65 zirconia beads. It is produced by sintered phase process,
zirconia silicate beads are solid from surface to center in a stronger molecular structure,then
ensures higher density and wear resistance. It is widely used for one grinding media in various
industries such as coating,paint,ink,pesticides etc.
2. Main technical index of Zirconium Silicate Beads 65 Zirconia
Item | Zirconium Silicate Beads |
Chemical Index | ZrO2 ≥65% SiO2 25-30% Others ≤1.0% |
Processing Method | Sintering |
Vickers Hardness | ≥900 HV |
True Specific Gravity | ≥4.0g/cm3 |
Bulk Density | ≥2.5g/cm3 |
Particle Size | Φ0.1-10mm etc. |
Usage | Grinding Media |
Particle Size |
0.1mm,0.2-0.4mm 0.4-0.6mm 0.6-0.8mm,0.8-1.0mm,1.0-1.2mm, |
1.2-1.4mm,1.4-1.6mm,1.6-1.8mm,1.8-2.0mm,2.5-3.0mm ,3.0-3.5mm |
4mm,5mm,6mm,7mm,8mm,10mm etc. |
Special products can be customized |
3. Main Features of Zirconium Silicate Beads 65 Zirconia
Medium Density,particularly suitable for large-volume agitated bead mills
Good Sphericity offers better fluidity and higher throughput of treated slurry
Smooth surface and low wear resistence provides few damage to the grinding equipment
and little contamination to the slurry as well as easy to change the slurry color
More concentrated particle size distribution, ensures narrower particle size distribution of
grinding slurry
4. Main Application of Zirconium Silicate Beads 65 Zirconia
Zirconia Silicate Beads is widely used for grinding and dispersing the slurry of ink slurry
such as cold solid ink,Thermosetting ink,ink jet,Gravure ink,Screen printing ink etc.
In addition,it is also used for pigment,dye, coating,painting,prescides,tatinum dioxide,
non-metal minerals etc.
5. Products Package
25kg drum+pallet, 25kg bag +pallet, ton bag,special packages can be customized.
6. Why Choose Us?
Professional manufacturer,Providing good products with stable quality & favorable price;
Equipped with the most advanced production line and testing equipments,certificatd by
ISO9001&14001;
Products has been exported to USA,South Korea,Vietnam,Japan etc.
