Specifications
Brand Name :
Zhengtong
Model Number :
B20-B505
Place of Origin :
Zhengzhou
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200mts per month
Delivery Time :
3-10 days
Packaging Details :
25kgs Barrels+Pallet
Product Name :
Ceramic Blasting beads
Color :
White
Chemicals :
60-66% ZrO2,SiO2 25-30%
Bulk Density :
2.3 g/cm3
Specific Density :
3.85g/cm3
Vicker Hardness :
700HV
Shape :
Solid Round Ball
Application :
blast cleaning, surface preparation, surface finishing and shot peening
Certification :
N/A
Description

1. Product Description
Ceramic beads sand blasting media was made by zirconium powder through a unique formula, special production process and pretreatment, then it is made by more than 2000°C high temperature phase method. Especially it is very suitable for the shot blasting during the process of metal parts production and maintenance and peen forming of light alloy components.

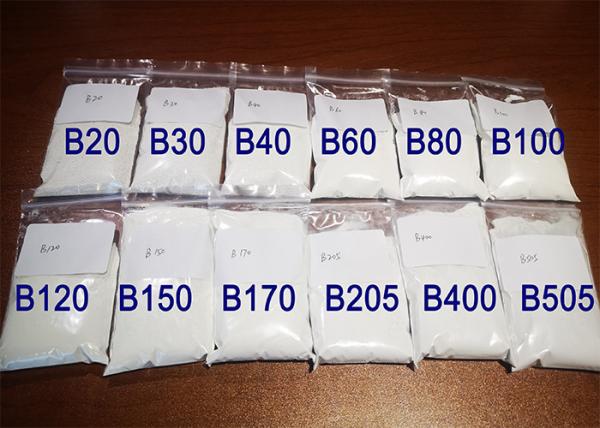

We supply B series sandblasting media and Z series shot peening media.

2. Technical Parameters of Zirconia ceramic beads blasting (Comparing with glass beds and steel shot)

Parameters- (Comparing with glass beads and steel shot)

Parameters Ceramic Beads Glass Beads Steel Shot
Chemical index ZrO2+SiO2+Al2O3 SiO2+NaO2 C+Si+Mn+S+P
Vickers Hardness ≈700HV ≈560HV ≈700HV
Rockwell Hardness ≈60HRC ≈46HRC ≈60HRC
True Density 3.85g/cm3 2.6 g/cm3 7.8 g/cm3
Size range 0.04-0.85mm 0.045-0.85mm 0.05-0.60mm
Shape spherical spherical fillet
Dust Pollution Very little big medium
Metal Pollution no no spherical
Recycling times Multi-time 1-2 times Multi-time
Work life Long Low 1/25 of ceramic beads Long
Power consumption Low Low High
Equipment wear loss Low Low High
Sandblasting effect High finish, no discoloration High finish, whitish Low finish, darken


3. Fearture of Zirconia ceramic beads blasting
1)Lower metal surface roughness.
2)Less operating pressure and reduced abrasive velocity needed. So it has far less abrasive breakdown and dust generation for cleaner working environment.
3)White color, high sphericity and smooth surface beads.
4)High hardness and toughness, strong mechanical resistance, but gentle with equipment and tools preserving work parts.
5)Chemically inert, no metallic contamination for treated parts.

4. Application of Zirconia ceramic beads blasting

1) 3C products - for Sandblasting Finishing

2) Aerospace industry-for Blasting finishing

3) Automotive industry-for sandblasting reinforcement

4) Kitchen Industry-for Sandblasting finishing

5) Machinery, Medical Instrument - for Sandblast finishing

6) Casting, forging , welded, heat-treated parts - for Sandblast Cleaning

7) Pipeline - for Sandblast Cleaning

8) Molds - for Sandblast cleaning

9) Electroplating, painting, anode-for Surface Pre-treatment.

10) Hardware parts - for Sandblast to improve lubrication conditions.

Solid B120 Zirconia Ceramic Bead Blasting Round Ball For Pretreatment
5. Why choose us?
1)We have professional production line in Henan and Shandong Province, China;
2)Our products are under strict quality control on process and tolerance, and passed the ISO9001 and ISO14001;
3)1kg samples are for free;
4)Customized production is accepted based on your drawing or specification;
5) We offer OEM and ODM service.
