Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction
Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction
Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction
Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction
Specifications
Brand Name :
FS
Model Number :
FS-3384
Certification :
SGS,CE
Place of Origin :
China
MOQ :
100PCS
Price :
898USD/ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000ton/month
Delivery Time :
15 working days
Packaging Details :
carton
Density(kg/m3) :
250-400
Size :
Customized
Al2o3 :
85
Working temperature(°C) :
1450°C
Application :
Petrochemical, metallurgical, ceramics, glass industry
Color :
white
characteristic :
Industrial and household boiler combustion chamber lining
Description

Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction

Introduction

Ceramic fiber board is made of ceramic fiber cotton, adding a certain proportion of adhesive. At last the board is formed by the vacuum suction filter. The product is hard, tough and excellent strength, easy to install, which is a lightweight refractory fiber insulation material. It can be widely used in the furnace and boiler wall lining and backing.

Fire resistant high heat insulation ceramic fiber board is made from FS refractory ceramic fiber, attending inorganic and suitable organic binders. The mixture is vacuum processed into boards or formed shapes that keep good mechanical strength after heating. FS Ceramic Fibre Board family exhibits excellent chemical stability, resisting attack by most corrosive agents.

Aluminum 1600°C Ceramic Insulation Board 50mm Thickness For Kiln Construction

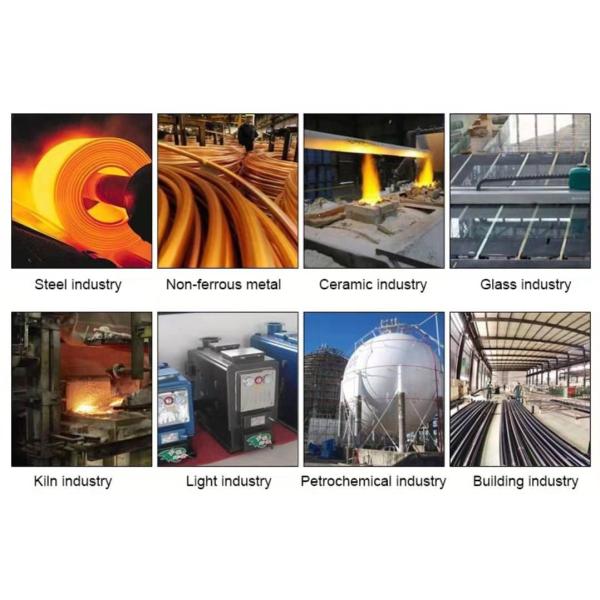

Applications

Industrial furnace, heating device wall lining
High temperature equipment insulation
Petrochemical, metallurgical, ceramics, glass industry, the furnace backlash insulation

Working temperatures 1050 Ordinary Ceramic Fiber Board--950C
1260 Standard Ceramic Fiber Board---1050C
1260 High-purity Ceramic Fiber Board- --1100C
1400 High Aluminum Ceramic Fiber Board---1200C
1450 Zirconia Ceramic Fiber Board---1350C
Characteristics Non-brittle material, good elasticity
Good sound insulation;
Accurate sizes and good flatness
Kiln construction: Hot surface refractories, heavy refractory back linings, expansion joints.
Light industry: Industrial and household boiler combustion chamber lining;
Petrochemical industry: as high-temperature furnace hot surface lining material;
Craft glass: As craft glass or other deep-processed and molded products mold;
Package plastic bag inside, carton or pallet outside,

Technical Data

Al2O3 % 85
Working Temperature 1600°C
Size Customized
