Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size
Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size
Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size
Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size
Specifications
Brand Name :
FS
Model Number :
FS-4720
Certification :
SGS,CE
Place of Origin :
China
MOQ :
MOQ :100 PCS
Price :
279USD/m3
Payment Terms :
Western Union, T/T, D/P, D/A, L/C, MoneyGram,
Supply Ability :
10000m3/month
Delivery Time :
15 working days
Packaging Details :
carton,tray
Color :
white
Size :
850*500 mm
Chemical composition :
Sio2
Name :
Calcium silicate board
Working temperature :
1000°C
Feature :
refractory
Lineal shrinkage rate ( %) :
≤2
Modulus of rupture (MPa) :
≥0.25
Description
Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size
Introduction

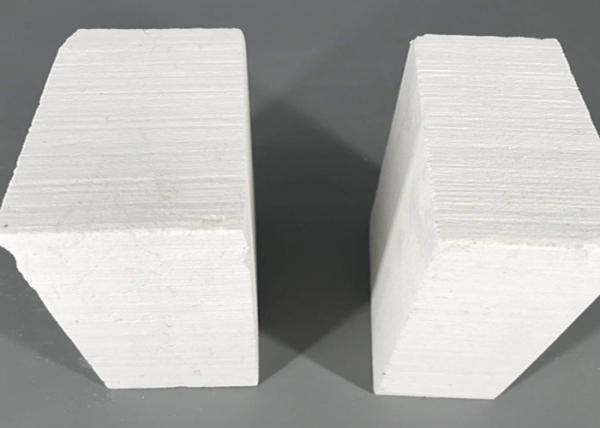

Calcium Silicate Board is fiber-reinforced calcium silicate board, its raw material is SIO2 and CaO, and reinforced with glass fiber. Its main process is mixing, heating, gelling, molding, autoclaving and drying processes. Calcium silicate board is a new type of rigid insulation material.

Thermal Insulation Fireproof Calcium Silicon Board 850*500 MM Size

Application

Calcium Silicate Board is used as thermal insulation layer of power plant boiler and turbine body, chemical plant cracking furnace and distillation column, steel plant heating furnace, drying oven, paper mill digesting kettle, also the thermal cover on the pipelines in these plants

Characteristic
As a backing insulation materials,they have a very marked effect of energy consevation,as a result of less accumulation of heat and bigger heat protection. After long used,the boards do not shrink,out of shape and turning powder out,insulation performance does not decline . The rate strength of calcium silicate board is the highest in the thermo inorganic material.During the design,it can lighten the all-up weight of the kiln and stove greatly. Using common woodworking tools can be cut to any necessary form,and can be glued and formed with other materials easily. No corrosives and toxicity,there are not exhaust gas and peculiar smell under the high temperature,will not cause the injury and pollution to the human body and environment.It's belong to the products of environment protection.

Technical Data

Description FS-17 FS-20 FS-23 FS-25
Density (kg/ m3) 170(±10%) 200(±10%) 230(±10%) 250(±10%)
Modulus of rupture (MPa)

≥0.25

≥0.35

≥0.50

≥0.55
Thermal conductivity rate (W/m.k)

0.048

0.050

0.056

0.058
Max working temperature (℃)

1000

1000

1000

1000
Lineal shrinkage rate ( %) ≤2 (1000℃,
16hrs)		 ≤2(1000℃,
16hrs)		 ≤2(1000℃,
16hrs)		 ≤2(1000℃,
16hrs)
