Specifications
Place of Origin :
Zibo, Shandong
Brand Name :
HUAO
Certification :
ISO9001 ISO14001 ISO45001
Model Number :
OEM
Hardness :
9
Alumina Content :
92%,95%,95%,99%
Application :
All types machines with high wear resistance damaged.
Description

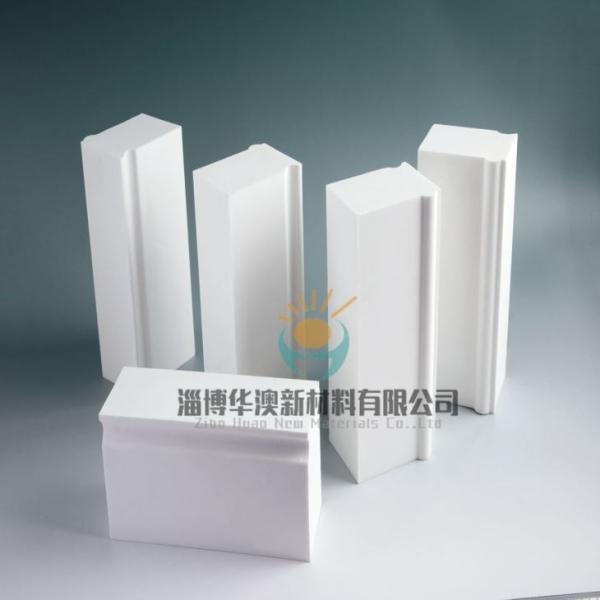

High Alumina Bricks

Introduction

High alumina bricks is a high performance wear and impact resistant lining suitable for high impact, high pressure applications where tile may not have sufficient structural resistance and high performance rubber may not provide the required wear life. In extreme applications, Cube bushings can be installed in ceramic/rubber substrates or wear resistant steel plates, providing structural support to ceramic/rubber substrates and providing excellent wear life that competitive products cannot achieve.

Advantages

High Alumina Bricks use rubber as the bonding agent. The rubber is pressed around and between the alumina tiles and steel backing plate. The process of high pressure, heat and a superior bonding agent. This ensures removal of the alumina from the plate is virtually impossible.

Application

High Alumina Bricks have better wear resistance than metal materials and are easy to install. Has been widely used in iron and steel, thermal power, cement, coal, mine, port, chemical and other industries of material transportation equipment; Hopper, pipe, elbow, valve, fan blade, chute, ball mill, feeder, powder selection machine, ball mill and other anti-wear conditions. All kinds of alumina plate lining board and lining brick; We can design and produce arc, conical liner and special-shaped products according to customer needs. Alumina ceramics have better wear resistance than metal materials and are easy to install. Has been widely used in iron and steel, thermal power, cement, coal, mine, port, chemical and other industries of material transportation equipment; Hopper, pipe, elbow, valve, fan blade, chute, ball mill, feeder, powder selection machine, ball mill and other anti-wear conditions. All kinds of alumina plate lining board and lining brick; We can design and produce arc, conical liner and special-shaped products according to customer needs.

Technical data

Category 90 92 95 99
Al2O3 ≥90% ≥92% ≥ 95% ≥ 99%
ZrO2 / / / /
Density >3.50g/ cm3 >3.60g/cm3 >3.70g/cm3 >3.83g/cm3
HV 20 ≥900 ≥950 ≥1100 ≥1200
Rock Hardness HRA ≥80 ≥82 ≥88 ≥90
Bending Strength MPa ≥180 ≥220 ≥300 ≥330
Compression strength MPa ≥970 ≥1050 ≥1600 ≥1800
Fracture Toughness KIc MPam 1/2 ≥3.5 ≥3.7 ≥4.0 ≥4.2
Wear Volume ≤0.28 cm3 ≤0.25cm3 ≤0.15cm3 ≤0.10 cm3
92% 95% 95% 99% High Alumina Bricks With High Wear Resistance 92% 95% 95% 99% High Alumina Bricks With High Wear Resistance
92% 95% 95% 99% High Alumina Bricks With High Wear Resistance 92% 95% 95% 99% High Alumina Bricks With High Wear Resistance

FAQ

Q.What kinds of alumina ceramic tiles you have?

A.We can provide 92% alumina, 95% alumina, 97% alumina and ZTA tiles to customers.

Q.What's the main application of alumina ceramic tiles?

A.They are ideal surface wear resisting materials for material transfer equipment in mining, coal & iron & steel works, thermal & powder plants, mine, etc, and can extend operating life of equipment effectively.

Q.What's the key benefits of alumina ceramic tils?

A.Excellent anti-wear and corrosion resistance; Longer life tan that of traditional wear protection material; Avoid shut down time and maximize the productivity.
