Specifications
Place of Origin :
Zibo, Shandong
Brand Name :
HUAO
Certification :
ISO9001 ISO14001 ISO45001
Model Number :
OEM
Hardness :
9
Alumina Content :
92%,95%
Application :
All types machines with high wear resistance damaged.
Description

Wear Resistant High Purity Alumina Ceramic Tile

Product Introduction

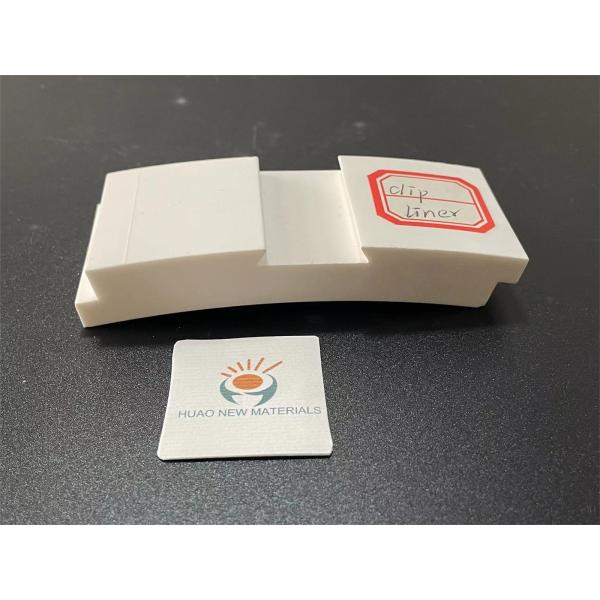

The alumina wear-resistant ceramic liner has a certain radian and can be fitted to different pipes. Various specifications of ceramic lining plate can also be customized according to the specific diameter of the pipeline, in order to better fit the inner wall of the pipeline. In order to solve the wear resistance problem of the equipment and improve the service life of mechanical equipment (such as hydrocyclone, etc.), we have improved the wear resistance of the lining plate.

High Purity Alumina Ceramic Plates Alumina Wear Resistant Ceramic Liner

Advantages

Wear Resistant High Purity Alumina Ceramic Tile is excellent for application of high impact and extreme wear. The alumina provides a very smooth surface for material flow and actually reduces its resistance to friction with service life. The elastomer backing also helps to reduce vibration and noise level within the plant and is engineered to resist the size and type of impact experienced for each individual project.

High Purity Alumina Ceramic Plates Alumina Wear Resistant Ceramic Liner

Application

Wear Resistant High Purity Alumina Ceramic Tiles are widely used in hoppers,Rubber elts,Pipes,Elbows,Valves, Fan blades,Chutes,Ball mills,Feeders,Bunkers and other processing equipment of the Steel,Thermal power,Cement,Coal,Mine,Port chemical industry and so on.

High Purity Alumina Ceramic Plates Alumina Wear Resistant Ceramic Liner

Detail

Item/Product

HA 92

HA95

ZTA

Al2O3(%)

92±0.5

95±0.5

76±0.5

ZrO2(%)

Bending Strendth(Mpa)

＞220

＞280

＞400

(Mpam1/2)Fracture Toughness

＞3.60

＞3.90

＞4.50

Rockwell Hardness (HPV)

＞82

＞88

＞90

Wear Volume(cm³)

＜0.50

＜0.30

＜0.15

FAQ

1 Can you manufacture ceramic tile base on drawings?

Yes, we can. We can design and manufacture base on requirement of customers.

2 What's the standard dimension?

150x100x(6-50)mm series, 150x60/(57-58)x(12.7-14)mm series

125x75x6-50mm series 120x80x(6-30)mm series

70x70x20/25mm hole series 150x50x(6-25) series

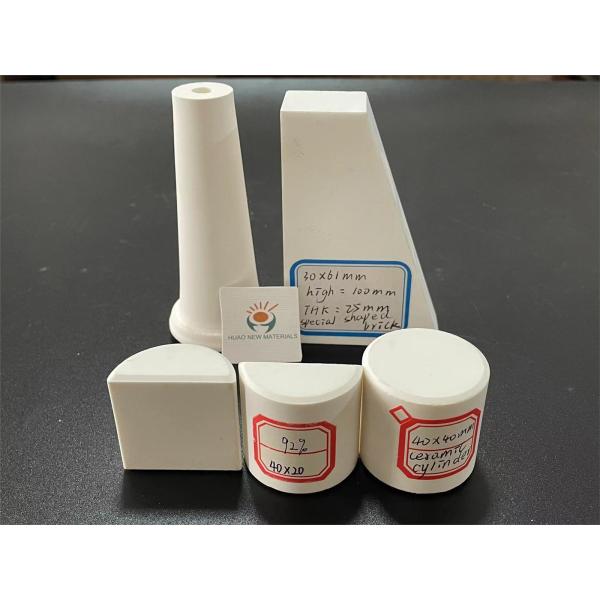

Arc tile, pipe tile, corner tile, interlocking tile, etc

3 What's the package of tile?

Carton box on the pallet
