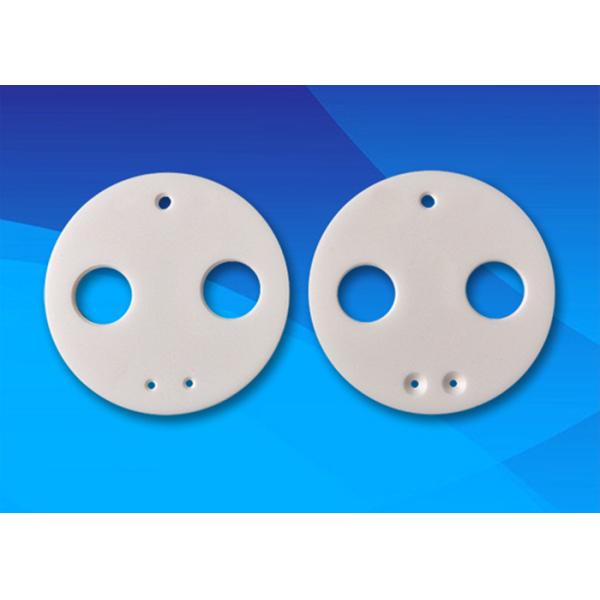

None Metallization Alumina Ceramic Structural Part For Relay in Electric Vehicle part
None Metallization Alumina Ceramic Structural Part For Relay in Electric Vehicle part
Specifications
Brand Name :
CMC
Model Number :
NE123
Certification :
IATF16949, ISO9001, ISO14001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 1.0~2.5/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
60,000 pieces per month
Delivery Time :
20 work days
Packaging Details :
Package : it isusing plastic film、paper plat and carton to package products
Material :
95% Alumina
Color :
White, Pink
Unit :
Piece
density :
3.7g/cm3
Description

None Metallization Alumina Ceramic Structural Part For Relay in Electric Vehicle part

1. Products Description

Nome Metallization Relay Ceramic Structural Assembly​ is produced by high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum and other metals. It is applying to sealed parts, HVDC Relay and other parts,it is made of 95% aluminum oxide.

2.Key Words:

electric vehicle part, metalized ceramic, pressing product, alumina production, electrical property, dielectric constant, salt bath furnace, high temperature insulation,high purity alumina, high pressure water plunger,ceramic wear plate.

3. Parameters Table:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm


None Metallization Alumina Ceramic Structural Part For Relay in Electric Vehicle part
