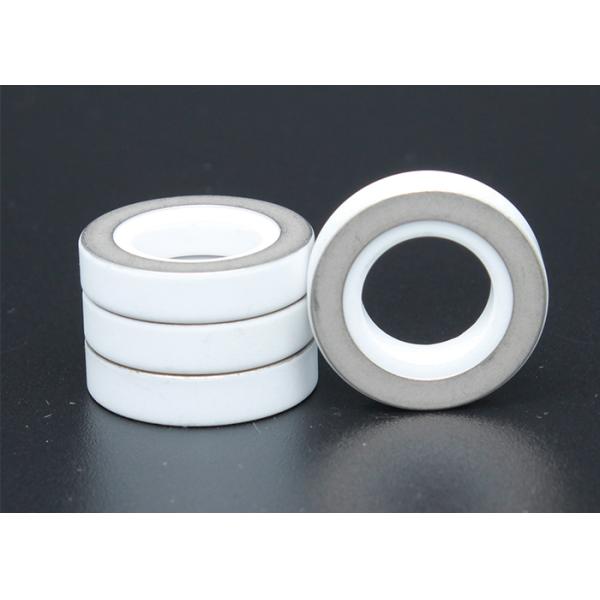

High Temperature Resistant 95% Alumina Ceramic Ring For EV Battery
High Temperature Resistant 95% Alumina Ceramic Ring For EV Battery
Specifications
Brand Name :
CMC
Model Number :
NE98
Certification :
IATF16949, ISO9001, ISO14001, ISO45001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 1.0~2.5/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
60,000 pieces per month
Delivery Time :
20 work days
Packaging Details :
package : it is using plastic film ,foam plate, plastic bag, and carton
Material :
95% Alumina
Color :
White
Unit :
Piece
Description

Alumina ceramic ring for EV power battery

1. Description:

The alumina ceramic ring for EV power battery is for power battery of new energy EV Cars. sealing performance is very good.

it is made of 95 percent aluminum oxide, and features of high temperature resistance,corrosion resistance and long service life.

2.Key Words:

Manufacture samples , open mould ,aluminum oxide,thick-film nickel plating technology,copper and alloys,great limberness,Good corrosion resistance,High intensity,Good high-temperature resistance performance,High purity.

3. Parameters Shows :

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing and Brazing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm


High Temperature Resistant 95% Alumina Ceramic Ring For EV Battery
