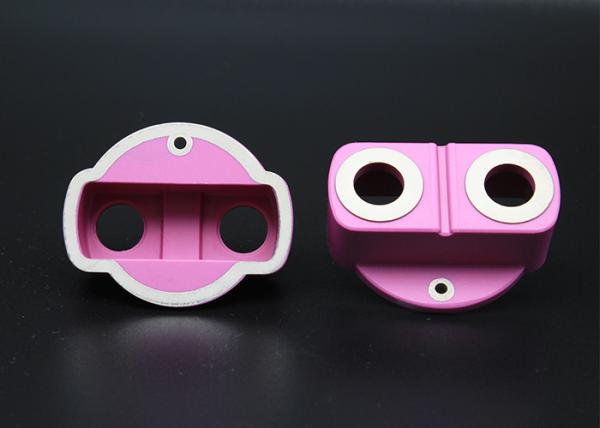

3.7g/cm3 95% Alumina Ceramic Sealed Connector Parts For DC Relay
3.7g/cm3 95% Alumina Ceramic Sealed Connector Parts For DC Relay
Specifications
Brand Name :
CMC
Model Number :
NE103
Certification :
IATF16949, ISO9001, ISO14001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 1.5~3.0/piece
Payment Terms :
T/T, Western Union, D/P, D/A, MoneyGram, MoneyGram
Supply Ability :
60,000 pieces per month
Delivery Time :
20 work days
Packaging Details :
Plastic film+paper plate+carton
Material :
95% Alumina
Color :
White, Pink
Application :
Electronic Componets
Density :
3.7g/cm3
Description

Relay Ceramic Sealed Connector Parts

1. Description:

This product is produced with high-purity toughened alumina ceramics and thick-film nickel plating technology.

2. Key Words:

DC Relay, relay ceramic parts,95% alumina,dry-processing,high strength and high welding and sealing performance,brazing different materials such as copper and alloys,seismic and tensile,withstand high current and arc shock,reaching the reliable sealing and insulation standards of DC high-voltage relays,new energy vehicles and DC high-voltage electronic control.

3. Technical Parameters:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm
