Uniform Texture Technical Ceramic Parts For PHEV Power Battery
Uniform Texture Technical Ceramic Parts For PHEV Power Battery
Uniform Texture Technical Ceramic Parts For PHEV Power Battery
Uniform Texture Technical Ceramic Parts For PHEV Power Battery
Specifications
Brand Name :
CMC
Model Number :
NE100
Certification :
IATF16949, ISO9001, ISO14001, ISO45001
Place of Origin :
China
MOQ :
2000 pieces
Price :
USD 0.2~2.0/piece
Payment Terms :
T/T, Western Union, D/P, D/A, MoneyGram, , MoneyGram
Supply Ability :
60,000 pieces per month
Delivery Time :
20 work days
Packaging Details :
Plastic film+paper plate+carton
Material :
95% Alumina
Color :
White
Unit :
Piece
Application :
Electronic Componets
name :
Ceramic Parts
brand :
CMC
Description

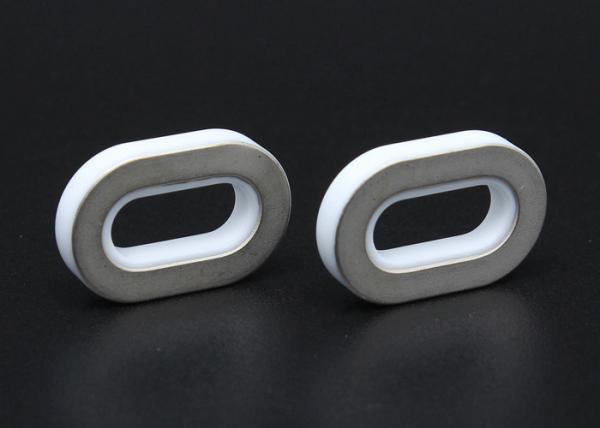

Advanced Technical Ceramic for EV and PHEV Power Battery, 95% Alumina Metallized Porcelain Connector for New Energy Car

1. Description:

The new energy series ceramics are produced by high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum and kovar. This series consist of HVDC relay ceramic housing, HVDC contactor ceramic shield, Fusegear ceramic case, ceramic connector for power battery cell.

2. Key Words:

New energy, EV Car, PHEV car, HVDC contactor, Vacuum interrupter, Power battery cell connector,uniform texture and good batch stability,high flexural strength, high tensile strength and good air tightness,high frequency, high power and good safety components,95% alumina,

dry-processing,white or customized,power charing stations, power storage stations and urban commuting shuttles.

3. Parameters:

Product Parameters
Physical Property Material 95% Alumina
Production Process Dry Pressing
Product Dimension Per customers' drawing
Density (g/cm3) 3.70-3.75g/cm3
Water Absorption 0%
Mechanical Performance Flexural Strength (Mpa) 310Mpa
Modulus of Elasticity (Gpa) 310Gpa
Hardness (Gpa) 12.9Gpa
Poisson Ratio 0.23
Thermal Character Linear Thermal Expansion Coefficient 7.2
Heat Conductivity (W/mk) 23
Electrical Property Dielectric Constant 9.2
Dielectric Loss Tangent (x10-4) 8
Insulation Strength (x106V/M) 15
Metalized Ceramic Performance Air Tightness (Pa·m3/s) ≤10-8
Bulk Resistivity (Ω·cm) ≥1010 (20°C), ≥106 (300°C)
Bonding Strength (Mpa) ≥120Mpa
Metallization Thickness (μm) ≥20μm


Uniform Texture Technical Ceramic Parts For PHEV Power Battery

Uniform Texture Technical Ceramic Parts For PHEV Power Battery

Uniform Texture Technical Ceramic Parts For PHEV Power Battery
