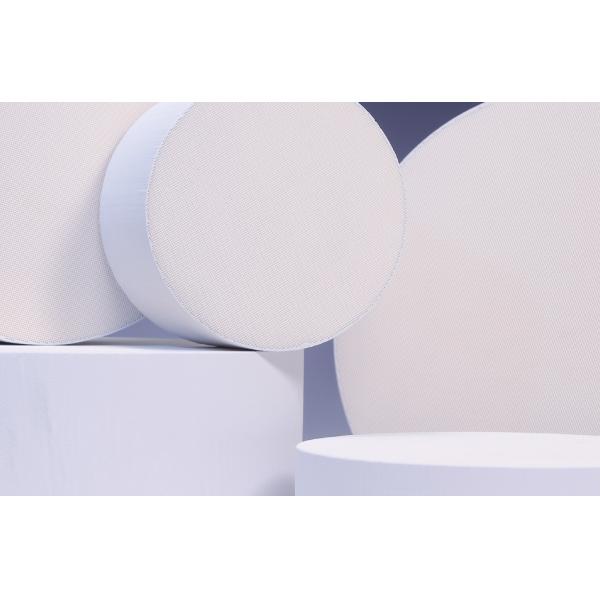

DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
DOC porous substrate , Grey 300CPSI cellular support for automobile
Specifications
Place of Origin :
China.Yixing
Brand Name :
Yuxing
Certification :
ISO9001 TS/16949
MOQ :
NO
Packaging Details :
Standard export packing
Delivery Time :
5 work days
Payment Terms :
T/T, L/C
Supply Ability :
6million liter/year
cells density: :
100-400 CPSI
Material: :
Cordierite
Size: :
Customize
Name: :
honeycomb ceramic substrate|honeycomb ceramics|honeycomb substrate
shape: :
Round
usage: :
Diesel Oxidation Catalyst Support
Description

DOC porous substrate , Grey 300CPSI cellular support for automobile

Applications:

After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.

Product use

After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

Overall dimensions standards

Item

Standard values

Test method

Wall thinkness

100CPSI

0.45MM±0.03

vernier caliper

200CPSI

0.36MM±0.03

vernier caliper

300CPSI

0.28MM±0.03

vernier caliper

400CPSI

0.21MM ±0.03

vernier caliper

Overall dimensions

OD:＜100MM

±1.0MM

vernier caliper

≥100MM

±1%

vernier caliper

Height:＜150

±1.0

vernier caliper

≥150

±1%Height

vernier caliper

Internal crack

Bright light perspective

Physical and chemical properties

Item

Standard value

Test methods

chemical

component

Al2O3

35.2%±1%

chemical

analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline phase content

≥90%

X-ray diffraction

Compressive

strength at

room

temperature

AA xis

≥15Mpa

universal material

testing machine

BB xis

≥2Mpa

CC xis

≥0.15Mpa

water absorption

23-27%

Gravimetric method

softening temperature

≥1400℃

high-temperature electric resistance furnace

CTE(800℃)

≤1.5*10-6/℃

thermal dilatometer

thermal shock

resistance

450℃

Three times don't crack

air cooling

Description:

After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

Benefits of Products:

● Low thermal expansion coefficient

● High porosity of hole on the wall , good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small.

● Cold start performance is good, low light-off temperature, high conversion efficiency

Competitive Advantage:

● Low thermal expansion coefficient

● High porosity of hole on the wall , good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small.

● Cold start performance is good, low light-off temperature, high conversion efficiency
