Siemens Motor Pet Treat Machine Bone Snacks Production Line
Siemens Motor Pet Treat Machine Bone Snacks Production Line
Siemens Motor Pet Treat Machine Bone Snacks Production Line
Siemens Motor Pet Treat Machine Bone Snacks Production Line
Siemens Motor Pet Treat Machine Bone Snacks Production Line
Siemens Motor Pet Treat Machine Bone Snacks Production Line
Specifications
Brand Name :
SMART
Model Number :
SR-100/SR-300
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/year
Delivery Time :
35-45 days
Packaging Details :
standard export wooden case
Product Name :
Simens Motor Pet Treats Dog Chews Bone Snacks Making Extruder Machine
Production capacity :
150-200kg/hr
Screw Length :
3250mm
Screw Speed :
0-250rpm
Heating Power :
14kw (7 heating rings)
Control System :
PLC touch screen
Description

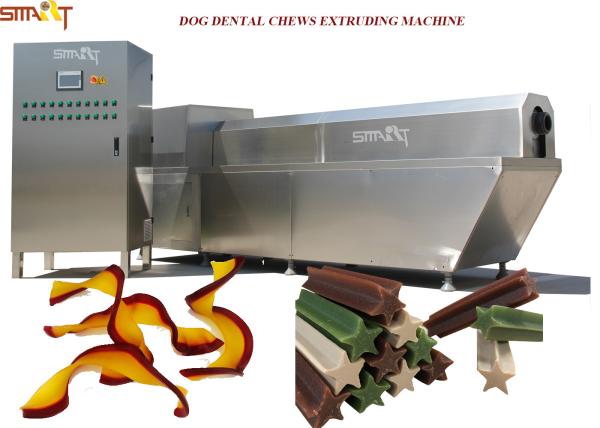

Simens Motor Pet Treats Dog Chews Bone Snacks Making Extruder Machine

1. Description for pet treats extruding machine:

Dog chew stick takes starch as raw materials with scientific configuration and was extruded from co-extruder, it can be made into many kind of shapes such as stick, bone, bi-color, bi-flavor, etc. This kind of food not only provide protein, fat, vitamin, nutrition for dogs, but also satisfy the dog nature hobby.


Pet dog food making machine produces chips/stick/twist shapes,double/various-colors food with filling. Pet chewing food has the effect on molar/clean mouth/clean tooth. It also can reform enteric function, lighten the bad smelly. The whole processing line designs logically,installs agility,fits adustabllity.

2. Flow chart of dog chews production line:

Mixing system---Extrusion system--- Cutting---Drying system---Cooling system---Packing system.

Siemens Motor Pet Treat Machine Bone Snacks Production Line

Siemens Motor Pet Treat Machine Bone Snacks Production Line

3.Parameter for pet chews extruder:

Model SRD-100 SRD-300
Capacity 100-150kg/hr 200kg/hr
Power 81kw 95kw
Dimension 18 x 5 x 3m 20 x 5 3m
Workers Needed 1-2 1-2

4.Main equipments description:

1)flour mixer:

flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.

Siemens Motor Pet Treat Machine Bone Snacks Production Line

2) screw conveyor

used to the convey the materials to the feeder of the extruder.

Siemens Motor Pet Treat Machine Bone Snacks Production Line

3) Extruder:

Single Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by one screw composed by sectional modules for the following functions: forward and backward transport, mixing, cooking and forming.

Siemens Motor Pet Treat Machine Bone Snacks Production Line

4) Cutter:

cutting the pet treats as required length.

Siemens Motor Pet Treat Machine Bone Snacks Production Line

5) Cooling conveyor

Siemens Motor Pet Treat Machine Bone Snacks Production Line

5.Machine and sample picture:

Siemens Motor Pet Treat Machine Bone Snacks Production Line

Siemens Motor Pet Treat Machine Bone Snacks Production Line

Siemens Motor Pet Treat Machine Bone Snacks Production Line

Siemens Motor Pet Treat Machine Bone Snacks Production Line

Video link:

Double-color pet treats machine:

Single color pet treats machine:

If any inerest for this machine, please send us inquiry freely, quotation can be sent within 24 hours!
