62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
Specifications
Brand Name :
SMART
Model Number :
SRD-100
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
35-45 working days
Packaging Details :
standard export package
Product name :
Kurkure Making Machine/Nik Naks Extruding Machine
Production Capacity :
100-150kg/h
Voltage :
380V/50Hz or as your need
Material :
SS
Raw material :
Corn Grits
Food types :
extrusion frying snacks
Warranty :
1 Year
Application :
Kurkure/ Cheetos/ Fried snacks making
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear
Description

Kurkure Making Machine/Nik Naks Extruding Machine Snack Food Machine

Brief Introduction of Kurkure extruder product machinery

1. Product Application

This Fried China Nik naks machine kurkure making machine can use corn grits instead of the powder material to produce the irregular stick sanack. This extruder is specially designed with one screw only for such cheetos, kurkure, or niknak. After shaped from extruder, the products will be sent into the rotary sifter to take down extra grits sticky on the surface. The waste grits can be collected and used again as raw materials. So this processing line can lower down the production cost. After fried and flavored, the final cheetos or kurkure will be more tasty and crispy.

Main Features for our Nik naks machine kurkure making machine


1.One year warrantee, life time maintenance with cost price.

2.Provide the free consultation of the equipment.

3.Provide the standard device and the flow chart.

4. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.


Technical Parameter:

Model Installed power Real power Output Dimension
SR-70 96KW 62KW/H 120-150KG/H 17000*1100*2500mm

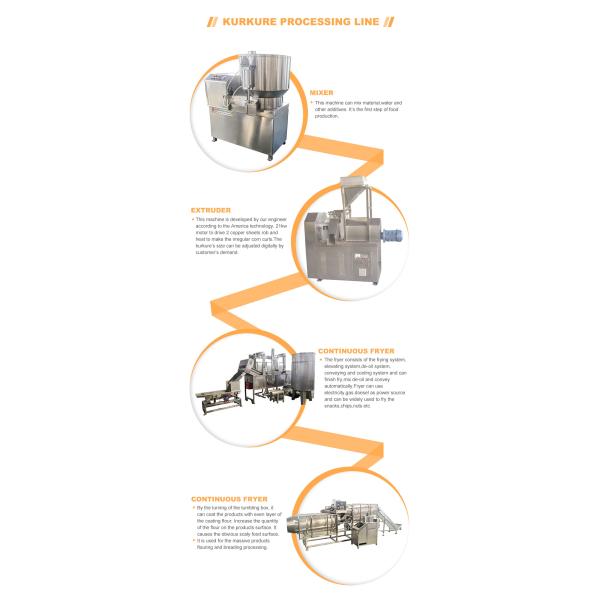

Flow chart:

Mixer--- Screw conveyor--- Kurkure machine--- Hoister ---Separating screen--- Vibrating feeder--- Continuous fryer--- Vibrating deoiling machine--- Flavoring line

62KW/H Corn Grits Kurkure Making Machine Snack Food Making

Equipment list in the kurkure food production line:


mixer→screw conveyor→ extruder→hoister→fryer→hoister→flavoring drum→cooling machine→packing machine

62KW/H Corn Grits Kurkure Making Machine Snack Food Making
Name Mixer
Usage To mix the raw materials evenly, fast speed, no leakage.
Type Vertical and horizontal type
Motor Motor
Capacity 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material stainless steel, carbon steel
62KW/H Corn Grits Kurkure Making Machine Snack Food Making Name Kurkure extruder machine
Usage To extrude the raw materials and make them to the required shape and size of kurkure
Type SR-70
Motor 15KW
Capacity 100-150KG/H
Material stainless steel, carbon steel

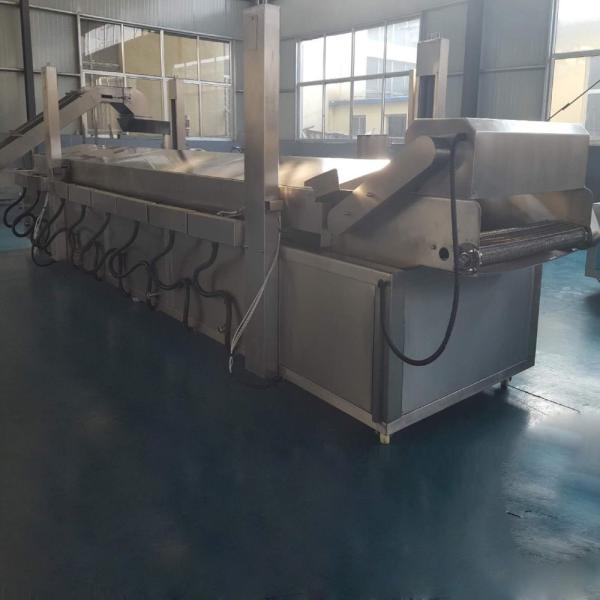

62KW/H Corn Grits Kurkure Making Machine Snack Food Making Name Fryer
Usage Electric Belt and Upper Cover Lifting Setting .advantage of continuous production
Type electrical, steam, gas fired, diesel fired heating type
Material stainless steel, carbon steel
62KW/H Corn Grits Kurkure Making Machine Snack Food Making Name Double drum flavoring machine
Usage To mix the oil and flavors on the surface of the fish feed
Type single and double flavoring drum
Motor 1.5kw
Capacity 100kg/h to 10 ton/h
Material stainless steel, carbon steel

Machine line parts details:

62KW/H Corn Grits Kurkure Making Machine Snack Food Making

Samples made by Kurkure Cheetos and Nik Naks making machine:

Kurkure Cheetos and Nik Naks making machine adopts corn grits as raw materials meanwhile mixing with water and oil. Kurkure Cheetos and Nik Naks production line can be used to produce cheetos, kurkure, and nik naks.

62KW/H Corn Grits Kurkure Making Machine Snack Food Making

Packing and Delivery:


1.Outside package, fumigation free wooden case
2. Inner packing, stretch film
Delivery Detail:30 working days after order
62KW/H Corn Grits Kurkure Making Machine Snack Food Making
62KW/H Corn Grits Kurkure Making Machine Snack Food Making

Any interest about this production line, please be free to contact us!
