Specifications
Brand Name :
SMART
Model Number :
SRC-65
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotioabl
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/year
Delivery Time :
35-45 days
Packaging Details :
standard export wooden case
Product Name :
Cereal Rice Candy Fruit Bar Snack Food Making Machine
Control system :
Siemens PLC
Voltage :
220V/380V,380V,380V/50HZ
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Weight :
1000Kg
Material :
Stainless Steel
Function :
making rice candy bar
Description

PLC Control Cereal Rice Candy Fruit Bar Snack Food Making Machine

Cereal Rice Candy Fruit Bar Snack Food Making Machine

Introduction of Cereal Rice Candy Fruit Bar Snack Food Making Machine

This machine is suitable for pressing forming for puffed cereal such as rice ball, wheat ball, popcorn ball, rice bar, rice cake and so on. The shapes can be round, cylindrical, square, semi-circle, and triangular etc.
High technology servo electromagnetic system, which has the characteristics of advanced design, automatic control, stable operation, no impact and quiver.
Using food-level materials to design and fabricate mould and hopper, which is safe and healthy.

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

Application of puffed rice cake machine:


This machine can make many cereal snacks according to customer requirements. For example, ball, cake, bar, round bars, round ball, round cake, square type.
It is the best choice for medium factory or which the formula include starch syrup food, rice candy, rice crispy candy, peanut candy, sunflower seed candy and sesame candy.

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

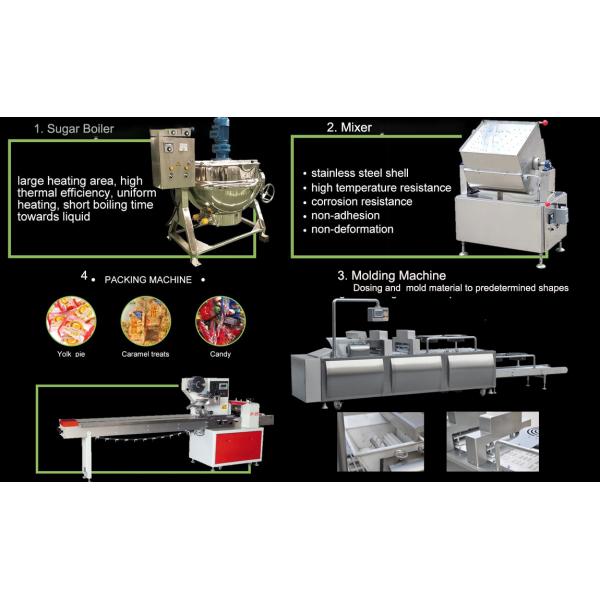

Process Procedure of Cereal Bar Production Line:
Roasting - Peeling - Cooking - Mixing - Molding and Cutting - Packing

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

All the moulds and hoppers have been conducted with antistick disposal.

The length of the cooling conveying links can be changed or cooling fan can be equipped based as required to enhance the cooling effect.

1.Grain puffing machine

Specially suitable for puffing and expanding various coffee,rice,corn, barley, wheat, bean,maize,sorghum,millet,peanut,sunflower seeds,sesame,Chinese chestnut and other food's puffing,with crispy taste and lively shape.

2.Candy cooking machine

This machine is made of stainless steel, and uses electricity, gas, steam, heat transfer oils as heating energy. It has tilt able discharging mechanism.

3.Thermostat not stick blender

This machine uses far infrared plate heating, heat evenly, barrel food grade PP, stirringbetter.

Equipped with automatic temperature control system, temperature regulation and more convenient. It's mainly used for the stirring of the rice cake, egg Shao crisp, Mihua Tang, frozen rice and sugar and other snack foods.


Parameter of Cereal Bar Production Line:

Model and Name Power(kw) Capacity(kg/h) Size(mm)
Rice puff Machine 0.37 70 1420*900*1200
Sugar Cooking Machine 30 100 1200*1000*800
Automatic Mixing Machine 1.1 150 680*500*800
Conveyor 0.37 400 3200*600*1000
SRC-65 Forming Machine 3 200-300 11800*1800*1200
250 Packing Machine 2.4 50 3700*670*1450

Name puffed rice candy bar forming machine
Capacity 200-300 kg/h
Voltage 380V
Power 3kw
Weight 500kg
Dimension 5600*850*1400mm

Machine pictures and production flow for snack bar making machine:

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

Package and delivery for cereal rice bar molding machine:

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

PLC Control 300kg/h Cereal Bar Forming Machine Stainless Steel

Snack bar machine test videos:

https://youtu.be/d-e1i3vZ5MU (Ficus carica bar molding machine)
https://youtu.be/vM_DUEHjawk (Ring shape rice bar)
