Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Specifications
Brand Name :
SMART
Model Number :
SRC-75
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/month
Delivery Time :
35-45 working days
Packaging Details :
standard export case
Product Name :
Fruit Bar/Muesli Cereal Bar Production Line /Making Machine
Capacity :
400-500kg/h
Voltage :
220/380v
Cooling type :
Cooling type
Weight :
1500kg
Dimension :
7500x1400x1300mm
Description

Fruit Bar/Muesli Cereal Bar Production Line /Making Machine :

1. Characteristics:

This machine adopts screw extrusion. A high degree of automation. Can directly into shape, the expansion of sesame, mung bean, Fried peanut shape, etc

This machine is easy to use, simple operation.

2. Purpose: It can puffing to sesame shapes, bean shapes.parched rice shape,peanut shape .

3. Technical parameter

Product capacity 300-400kg/hour
Voltage 380V/50Hz 4KW
Dimension 12x4x2m
Weight

4300KG

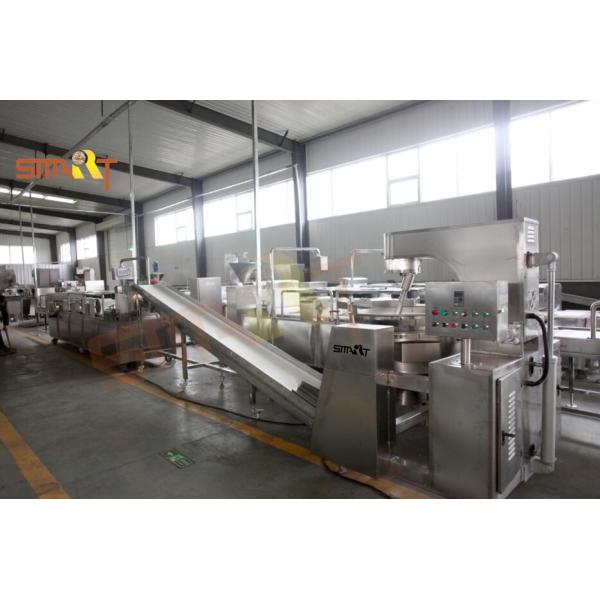

Production flow of cereal bar machine:

The machine equips can be choosed by customer, and we can also supply chocolate coating machine.

DR-200 sugar boiler

is used to melt the sugar.

Double-layer design.
Heat evenly, and transferred by heat transfer oil.
The pot can be turned in 180 degree, which is easy to pour the sugar.
Equipped with mixing blades.
It has the function of warm-keeping.
1100 x 1100 x 900mm		 Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
SRCT-35 Mixer is used to evenly mix the sugar with the puffed rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.
The hopper has warm-keeping function.
The coating has non-sticky design.
It has heating function, up to 120℃ (normally we suggest 80℃ to prevent over-cook the sugar).		 Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
DRTS-20 Elevator This is used to convey the mixed material from mixer to the hopper of cereal bar cutting machine Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
SRC-75 Cereal Bar Cutting Machine SRC-75 Cereal Bar Cutting Machine can be used for producing all kinds of cereal bars and sticks.

The SRC-75 Cereal bar cutting machine added mixer machine above the feeder. The machine come true the automatic mixing the raw material and pour the raw material to feeder. Mixer machine have the heat preservation function and could set the mixer time.		 Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
LSU-220 Pillow Packing Machine is used for packing regular shape products, such as instant noodle, biscuit, wafer, moon cake, snow cake, etc. Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE

Cutting & Forming Machine

This machine are suitable for flatting and cutting the muesli bar.Easy to operation.
Characters:
1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and convenient

Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE

Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE
Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE

Machine samples:

Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE

Customer feedback:

Fruit Bar / Snack Bar Machine , Muesli Cereal Bar Production Line For CE

Machine test video:

https://youtu.be/t2l1ZxbbTRk( high-thickness sample)
https://youtu.be/2eygOiiLbFQ (Dubai customer test peanut bar)
https://youtu.be/kYDVqXpltug (bird treat bar cutting)
https://youtu.be/NSVhOFzOYZc (cereal bar cutting with auto-sorting and cooling tunnel)
https://youtu.be/l9ob8_r6EgE (Test for American customer)

Any interest, please contact us freely!
