CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar
Specifications
Brand Name :
SMART
Model Number :
SR-65
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/month
Delivery Time :
35-45 working days
Packaging Details :
standard export package
Product Name :
Chocolate Coating Energy Candy Bar Processing Making Machine Line
Control System :
Siemens PLC
Material :
SS
forming molds :
HMWHDPE
Production capacity :
300-400kg/h
Warranty :
1 year
Description

Chocolate Coating Energy Candy Bar Processing Making Machine Line

Brief introduction:

Automatic multifunction energy bars machine cereal bar production line is our newly developed product in recent years.It adopts the advanced European technology and design,with high configuration and quality.

The line is the ideal equipment For producing cereal bar,muesli bar,granola bar,energy bar,nuts bar,seeds bar,protein bars and so on.

The cereal bar line includes: syrup cooking,storage,continuous mixing,material double rolling,

flatting,tunnel cooling,longitudinal cutting,bar separator,guillotine cutting.

The line can also coordinate with chocolate enrobing machine,which can produce all kinds of chocolate enrobed bars.

Processing:Cooking sugar → Mixing → Forming → Cooling → Longitudinal Cutting → Fanning → Transverse cutting →Enrobing → Cooling → Packing

Technical parameter:

1. Snack Cereal Bar Processing Line Capacity: 300-400kg/h

2. Voltage in China:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.

3. Machines Materials:

All the machines are made by stainless steel.

The machine can coat chocolate on one side of the product or both sides.

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

Technical parameter of cereal bar machine and chocolate coating machine

Model SRC-75
Capacity 300-400kg/hr
Power 4kw
Dimension 12*4*2m
Workers Needed ‘3-4

Chocolate Coating Machine
Speed of mesh belt 1-6m/min
Width of mesh belt 400mm
Power 5.5kw
Dimension 1700 x 1100 x 1500mm
Cooling Tunnel
Cooling tunnel temperature 5-10℃
Power 7kw
Dimension 10680 x 760 x 1200mm

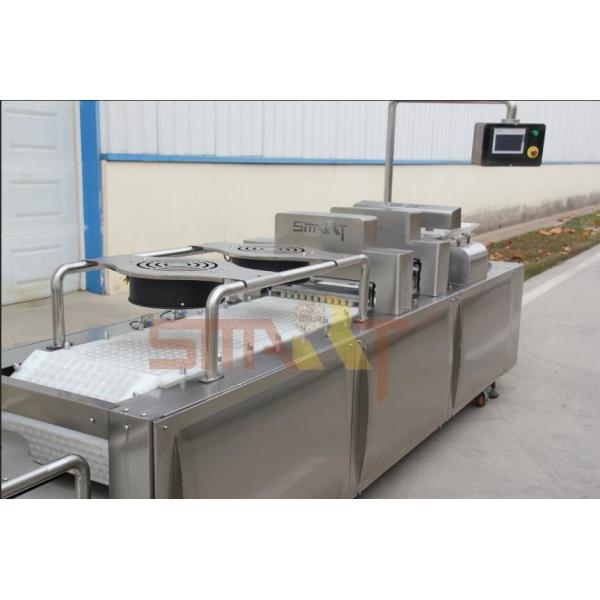

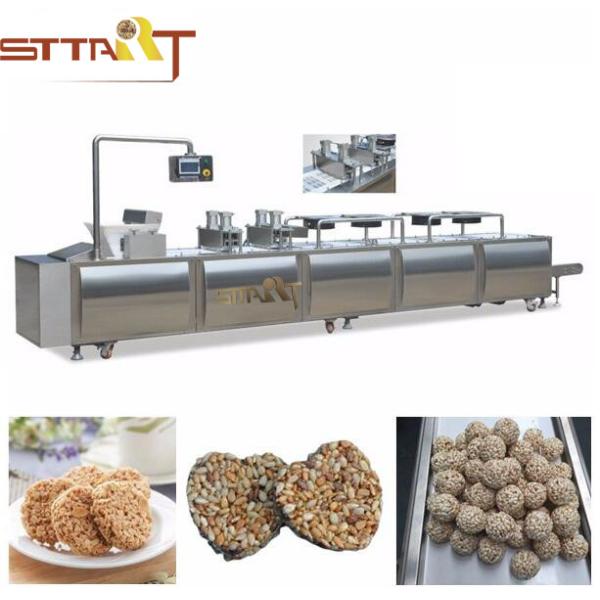

Machine picture:

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

Flow chart:

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

Samples:

CE ISO Cereal Bar Making Machine For Chocolate Coating Energy Candy Bar

Test video:

https://youtu.be/R70Uk4ACY88 ( Granola bar machine with cooling+auto-sorting+packing)

https://youtu.be/NSVhOFzOYZc (cereal bar cutting with auto-sorting and cooling tunnel)
https://youtu.be/kYDVqXpltug (bird treat bar cutting)

https://youtu.be/t2l1ZxbbTRk( high-thickness sample)
https://youtu.be/2eygOiiLbFQ (Dubai customer test peanut bar)
https://youtu.be/hSatlgmcQzw (Korea customer test almonds rice bar)
https://youtu.be/gDxcTAQe_IU ( Dubai customer test sesame bar)
