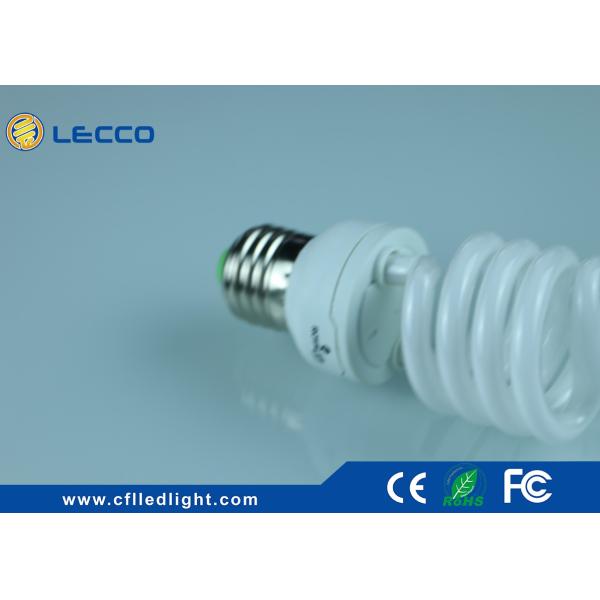

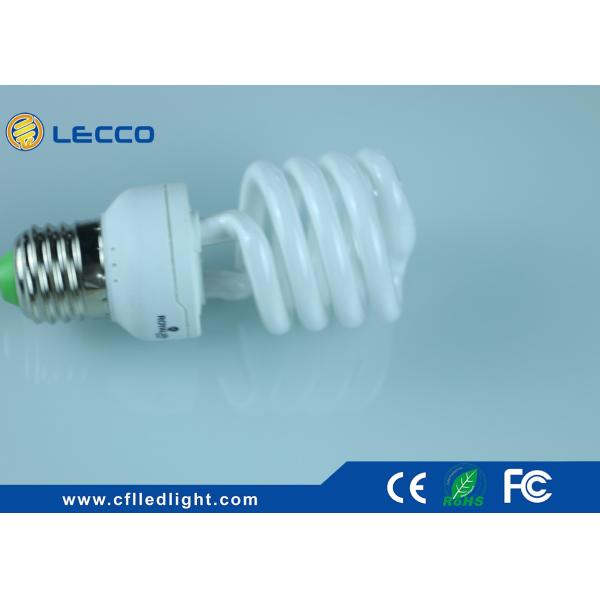

T2 7mm Half Spiral Bulbs 15W 4T Circle CFL Compact Fluorescent Lamps 2700K - 6400K
Quick Details
Model No. : LCF-HS15W-T2 | Certificate : CE RoHS FCC |
Item Type : Half Spiral | Power : 15W |
Place of origin : Lin'an | Input Voltage : 127V / 220V |
Brand name : LECCO | Color Temp. : 2700K - 6400K |
Warranty : 1 year | Working Temp. : - 30 - 40℃ |
Package Detailes : Color Box / Blister in Carton |
Description
1 . Passing the EMC test .
2 . Guarantee is for 2 years .
3 . Turn on – off time is more than 12 000 times .
4 . Saving 80% electricity compared to traditional incandescent bulbs .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . All products are output strictly under ISO 9001 Quality Management System and CE satisfied .
7 . Voltage : Both 110 - 130V and 220 - 240V available with 50 / 60Hz ; Wide range voltage is possible .
8 . No mercury vapor , using solid mecury technology , Hg < 3mg .
change traditional incandescent bulbs directly , the ballast in integrated in to the lamp .
9 . Using PBT plastic cover, PBT have two advantage : ① Inflaming retarding ② High temperature resistance .
10 . Using nickleplated aluminum base , very good to avoid getting rusted .
Lamp parameters
Tube Parameter for CFL | Type | Half Spiral |
Tube Diameter | Φ 7mm | |
Wideth | 46mm | |
Circle | 4T | |
Color Rendering Index | > 80 Ra | |
Color Temparature | 2700K - 6400K | |
Luminous Efficency | > 55 lm / w | |
2000h Luminous Depreciation | < 15% | |
Responsive Time | < 0.5s | |
Luminous Decay | Less than 15% at 2000hrs | |
Powder | 100% A - gradeTriphosphor | |
Electronic Parameter for CFL | Power | 15W |
Power Factor | > 0.5 | |
Working Voltage | 110V - 127V / 185 - 265V | |
Transister / Capacitor | Huajing / Aishi | |
Base | Size | E27 |
Materials | Nickelplated Aluminum | |
Plastic cover | Wideth | 40mm |
Materials | PBT | |
No middle cover | ||
Life Time | > 8000H | |
Time need to be stable | 3 Mins | |
Lumen | > 1200 LM |
Competitive advantage
1 . Strict raw materials inspection .
2 . Technicians will tune the technical parameters of each items to make sure the Wattage,P.F living up to the requirement of customer
3 . Destructive test , light it in the oven to be under the conditions of high temperature and high voltage
4 . we are testing every lamp before packed in the cartons .
5 . In the warehouse,our QCs will take sampling inspection before load the container , if not qualified with the AQL , we will rework .
6 . After laoding the container,we will trace the life time of ech order,we will pick 10 pcs of each item to light in the ageing room till the lamp die , so we can trace down the real life time of each order .
Application
Widely used in home & commercial Lighting , always using together with the downlight fixtures , applying in office , Hallway , Hotel , room , shop , ect .
