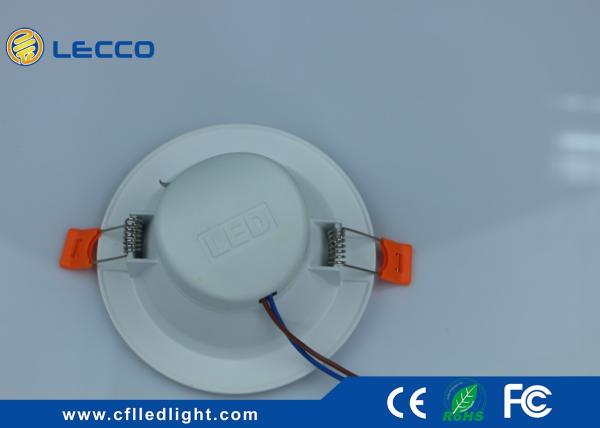

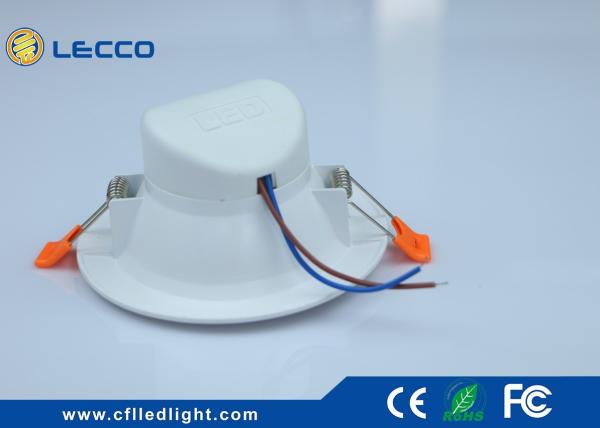

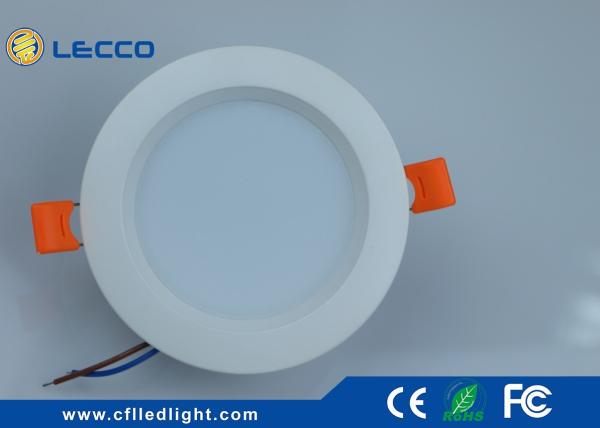

SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
SMD 5730 LED Recessed Downlight 1500LM 15 Watt Indoor Led Downlights CRI > 80
Specifications
Brand Name :
LECCO
Model Number :
LDL-SMD15W-6
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
100 pcs
Price :
Negotiate
Payment Terms :
T/T, L/C
Supply Ability :
5000 pcs per month
Delivery Time :
10 days
Packaging Details :
40 PCS / CTN , Meas : 31x27x31.5CM , G.W. : 6 KGS N.W. : 4.8 KGS
Power :
15W
Material :
Die Cast Aluminum
Lumen :
1500LM
Voltage :
85 - 265V
Top Material :
PBT Plastic
Life time :
30 000H
Luminous Efficiency :
> 100 LM / W
LED Chip :
SMD 5730 , Epistar
Description



LED Recessed Downlight 15Watt 1500LM SMD 5730 CRI > 80 Driver Insdie The Lamp


Quick Details

Model No. : LDL-SMD15W-6 Certificate : CE RoHS FCC
Item Type : LED Downlight Power : 15W
Place of origin :Jiaxing City Input Voltage : 85 - 265V
Brand name : LECCO Lumen : 100 LM / W
Warranty : 3 year Working Temp. : - 40 - 60 ℃


Description

1 . SDCM < 5 ,CRI > 80 Ra ,Luminous efficiency > 100 .
2 . The average lifetime of our LED bulb is at least 30 000h , we garantee the quality for 3 years .
3 . Living up to the IEC62031 : 2008 & 62560 standard .
4 . Saving 80% electricity compared to traditional grille lamp with fluorescent tube .
5 . Can start under the condition of - 30 ℃ and low voltage .
6 . No flicker , No noise , No electromagnetic interference ( EMI ) .
7 . Using spray - painted aluminum frame , very simple and fashionable .
8 . 30 pcs SMD 5730 Chip , Epistar .
9 . Using pure die casting aluminum , haveing excellent heat conduction ,160 W / ( m.K ) .
10 . Using constant current driver with IC to make sure the led chip life .
11 . We choose very good driver supplier like Meanwell,mosopower to have constact current output to the LED chip , which is also safe .

Lamp parameters

Type LED Downlight SMD 15W Integrated
Optical Parameter Color Rendering Index > 80 Ra
SDCM < 3
Color Temparature 6400K
Luminous Efficency > 100 lm / w
Light Transmittance > 90%
UGR < 19
Luminous Decay < 5% at 3000hrs , < 9% at 6000hrs
LED Chip Brand Epistar
Junction Temperature 65 ℃
Chip Quantity 30 pcs SMD 5730
Electronic Parameter Power 15W
Power Factor > 0.9
Isolated Power Supply Yes
Input Voltage 85V - 265V
Current Constact Current with IC
Dirver Brand Mosopower , Wellpower , Meanwell , Lifud
Structural Parameters Size W 140 * H 62 mm
Installation Recessed
Materials Die Casting Aluminum + PC
IP Rating IP 20
Thermal Tranmissivity 160 W / ( m.K )
The Value of Permissible Voltage < 5000V
Beam Angle 120 °
Operating Temp. -20℃ to +40℃
Life Time > 30 000H
Energy Efficiency Grade A
Certification CE / RoHS / FCC
Lumen > 1500 LM


Frequently Asked Questions ( FAQ )

1 . About price
All is FOB prices , and If you don’t provide the quantity and mention if need to OEM your brand , we qoute the wholesale prices for our brand .
2 . About samples
we can provide samples for you to check and test for fee , but need you to pay the express fee .
3 . About the pcking
Color box and cartons is witout design,and can use numper sticker with your logo and brand .
4 . About your brand and color box
We can OEM your brand and printing the color box with your logo , but need the MOQ 500 pcs .

Application

Widely used in home & commercial Lighting , applying in office , Hallway , Hotel , room , shop , ect .
